Components description

H00007091 - Absolute Arm User Manual │Version 5.2.0 (2019-03-07) │51

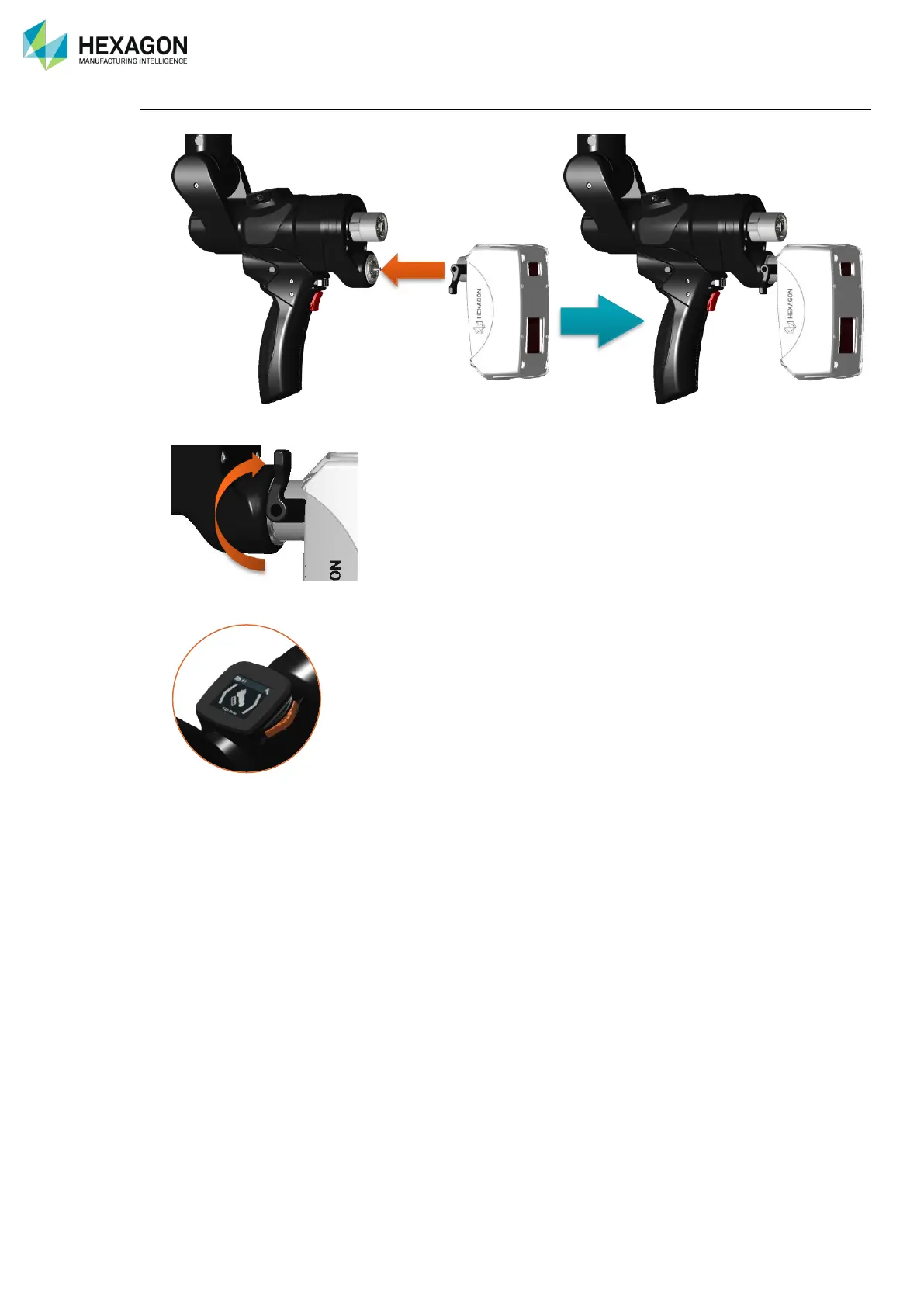

Mount scanners or probes on the offset location

1. Approach and mount the scanner on the TKJ connector

2. Lock the scanner with the key or with the lever.

3. Select the scanner location
