B.5.5 INTEGRATED LASER LINE SCANNER – RS5 (SI ONLY)
The Absolute Arm can be used with an integrated scanner – the RS5, simply mounted in place of the Nose
Cone.
The RS5 is a Laser Line 3D Scanner collecting line stripes of a laser projected on the surface.
It is composed by a laser emitter and a camera and a second laser guides the user about the correct
distance from the part.

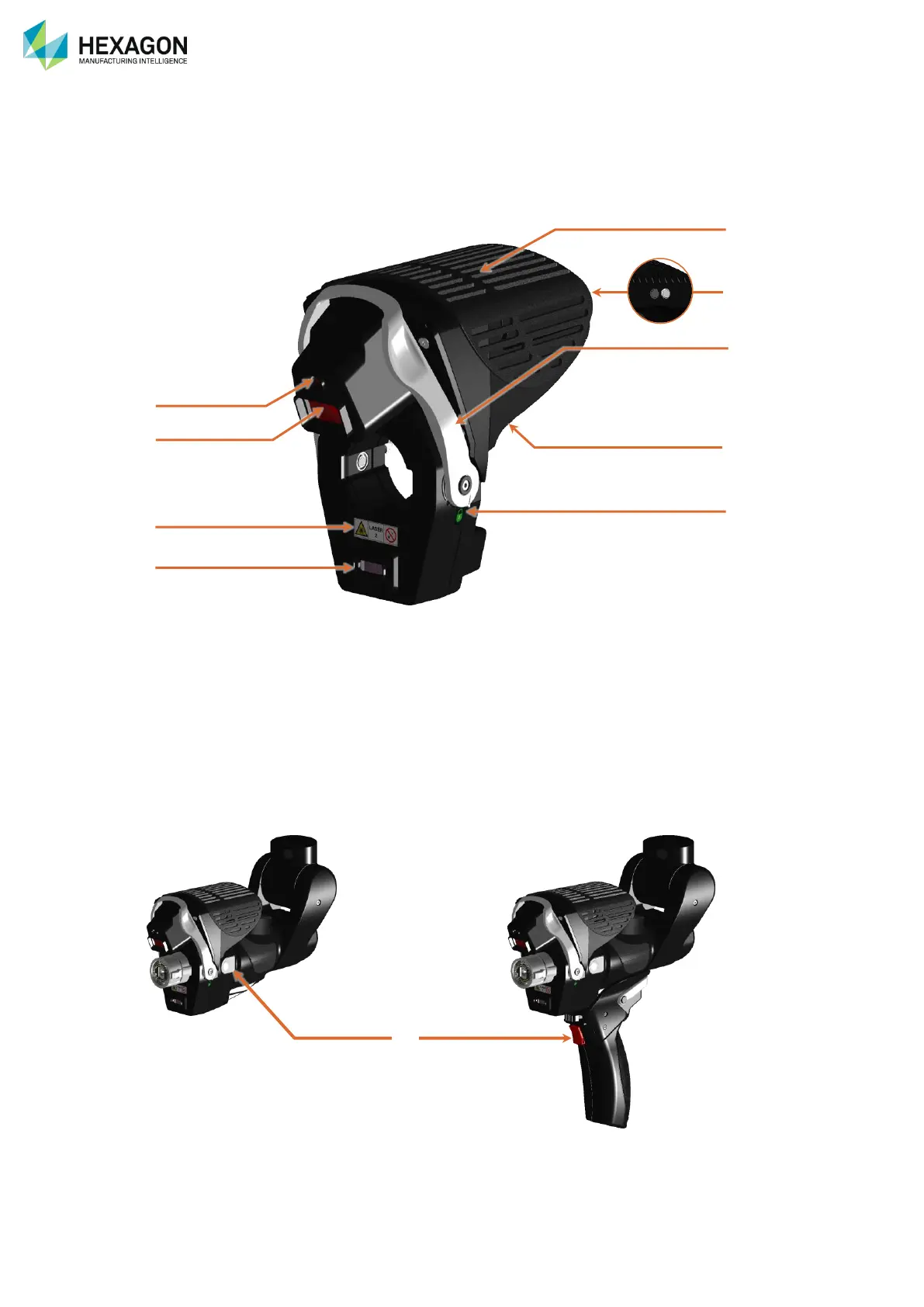

a. Visual guide laser emitter
b. Camera
c. Laser warning label (2M)
d. Laser line emitter
e. Rear cover
f. Status LEDs
g. Locking lever
h. Identification label
i. Locking status
The Scanner can be used with or without the Pistol Grip.
The scanning then can start with the Trigger Button (BT) on the Pistol Grip or on each side of the wrist.
g
a
b
d
e
i
h
c
f
BT
