Measure with the arm
H00007091 - Absolute Arm User Manual │Version 5.2.0 (2019-03-07) │146
F.6.3 HOW TO HANDLE AND DIGITIZE
Excepted the HP-L-8.9, scanners are mounted on a 7 axes arm (fixed for RS5 or through TKJ). Thus, the
operator should handle the wrist of the arm and not the scanner itself.

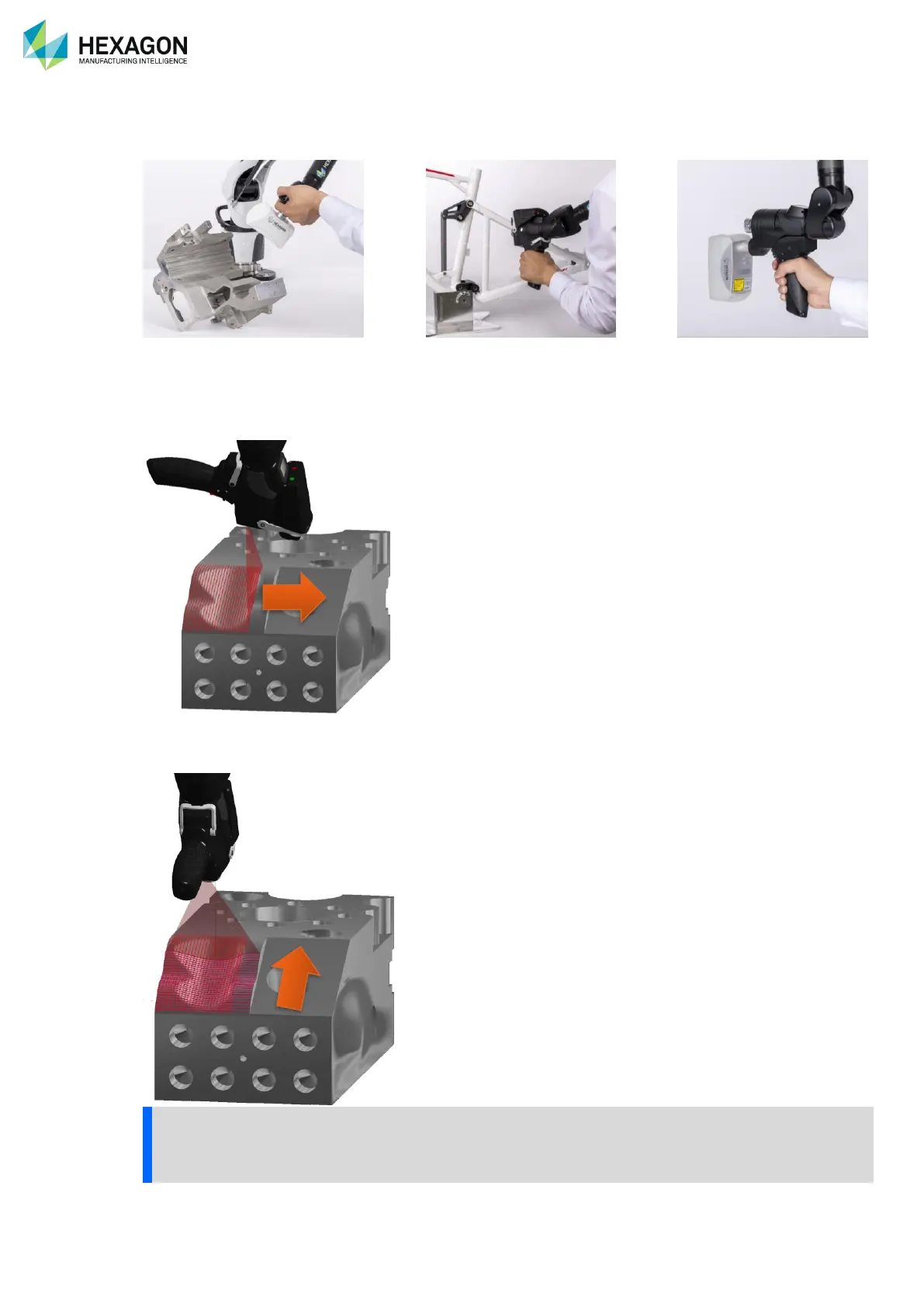

Fig. 40 : Scanner handling.
By holding the wrist of the arm, place the scanner over the surface to digitize, at a correct distance.
The scanner may guide you about the correct distance with a guiding laser point or a colour indicator.
Then move the scanner over the surface with a translation movement as a spray gun.
Pay attention to orientate correctly the scanner in order to get all the necessary detail. A cross movement
may be useful in some cases
NOTICE
Dirt may affect the scanning results: do not put fingers on the lens and always ensure to keep clean and
greaseless lenses.
