Installation
H00007091 - Absolute Arm User Manual │Version 5.2.0 (2019-03-07) │76
D.1.2 MOUNTING RING
The 1.2 series is equipped with a fixed base plate. For an installation on another kind of
support, the Mounting Ring Adapter option can be used.
The mounting ring is the interface between the different kinds of supports and the arm itself. This ring can
be fixed through 6 bolts (M6) on any kind of optional support of even directly on a customized support made
by the customer; tighten securely with 17 n/m.

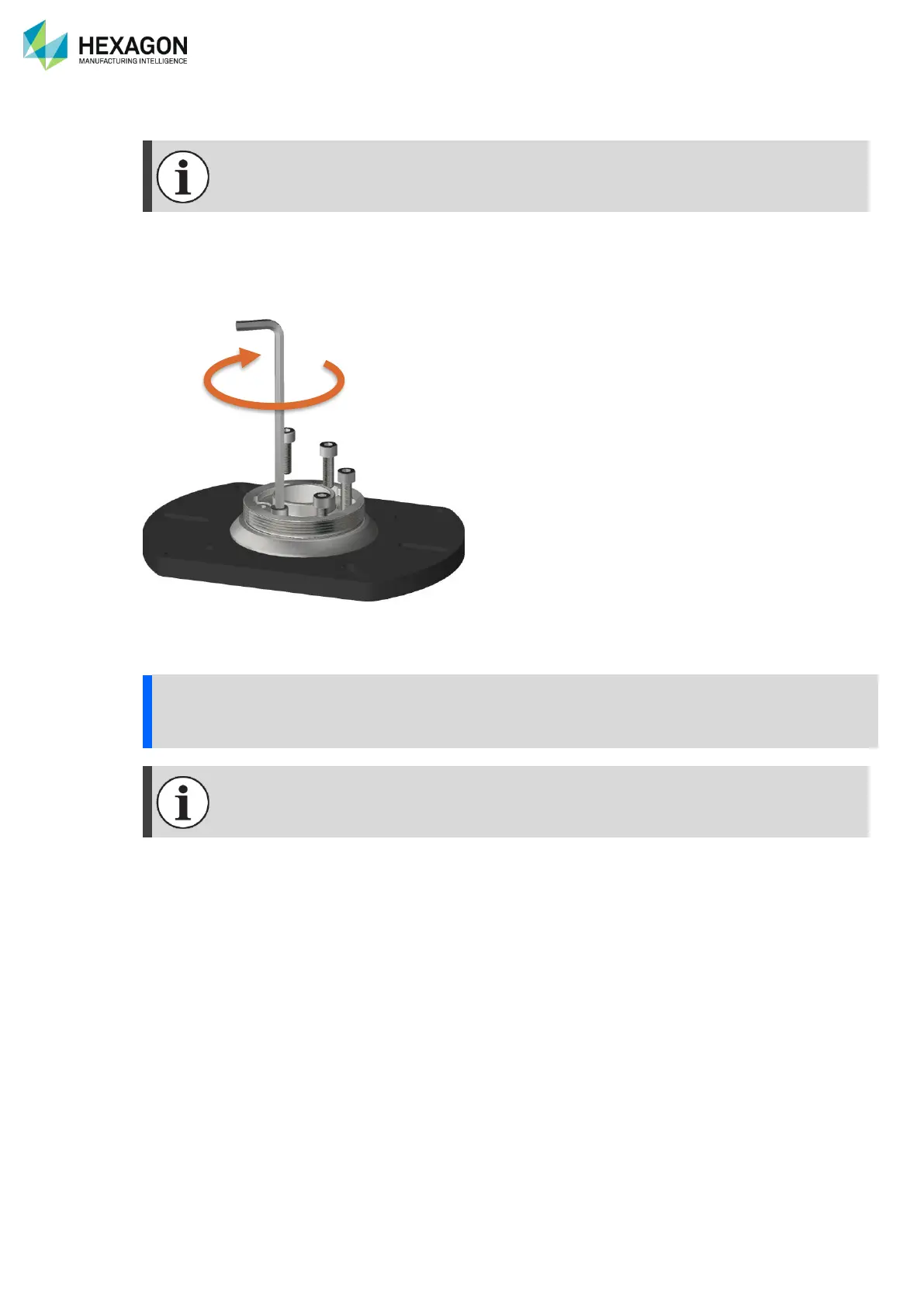

Fig. 27 : Mounting Ring
The arm is positioned onto this base and is then locked with a main nut at the base of the arm.
It is very important that the main screw is fastened securely to ensure stability of the arm.
Also, the operator must make sure that the 6 screws of the base are well tightened on the support.
See in appendix the characteristics of the Mounting Ring base.
