Hexagon Absolute Arm RS5 User Manual

Installation
H00007091 - Absolute Arm User Manual │Version 5.2.0 (2019-03-07) │74
Use magnetic anchors
The 1.2 arm is delivered with 3 accessory magnetic anchors that can enhance the stability of the arm on a
ferro-magnetic surface.
NOTICE
Non-plane or low-magnetism surfaces may result in a poor stability of the arm and then in a loss of
accuracy.

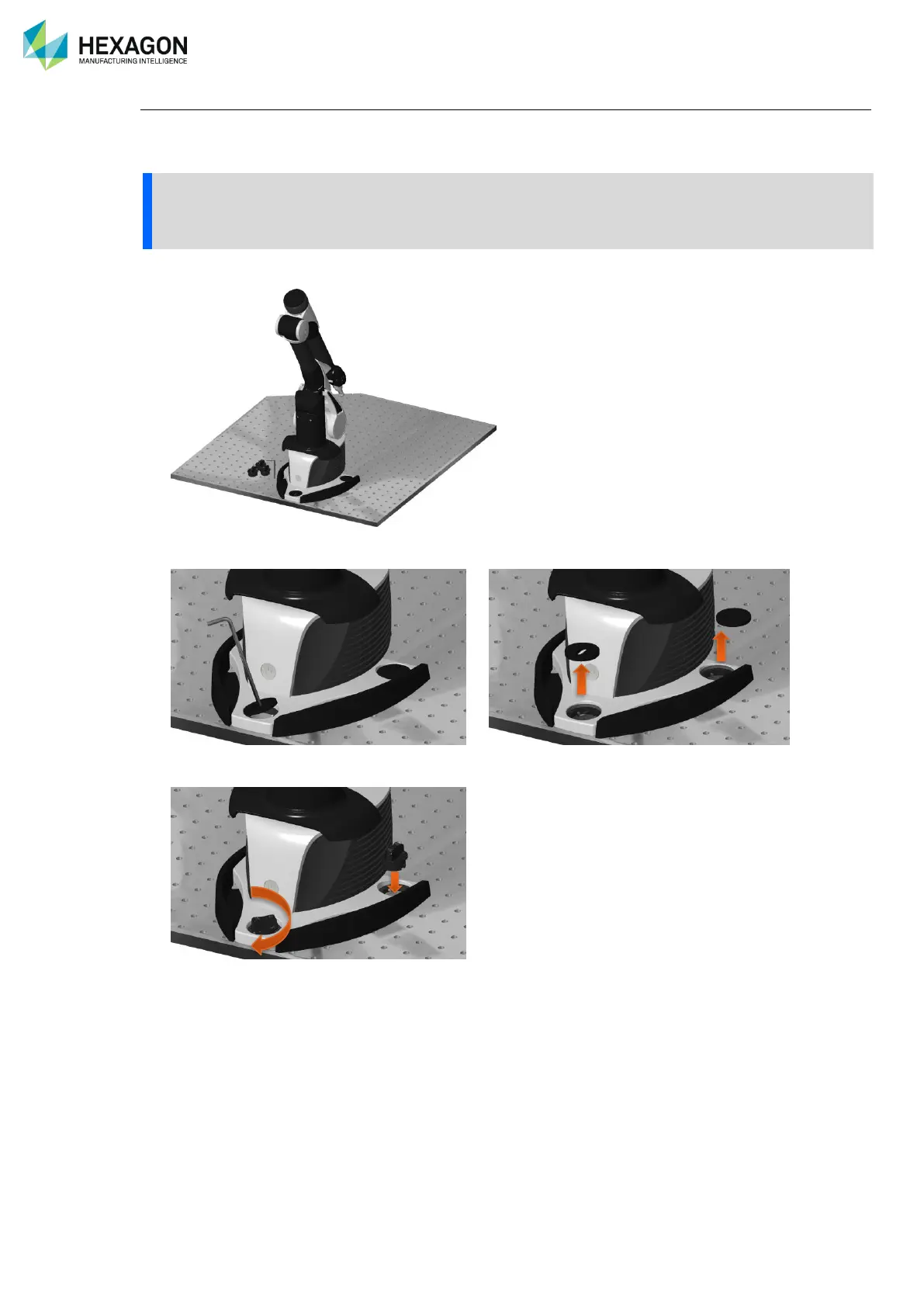

1. Put down the arm on the work surface.
2. Remove the 3 circular plates.
3. Insert and lock the magnetic anchors in the free holes: the arm is safely placed.
4. To free the arm, simply turn off the anchors
5. To remove the anchors from the arm, rotate the anchors mid-way and pull them up
