Connection
H00007091 - Absolute Arm User Manual │Version 5.2.0 (2019-03-07) │108

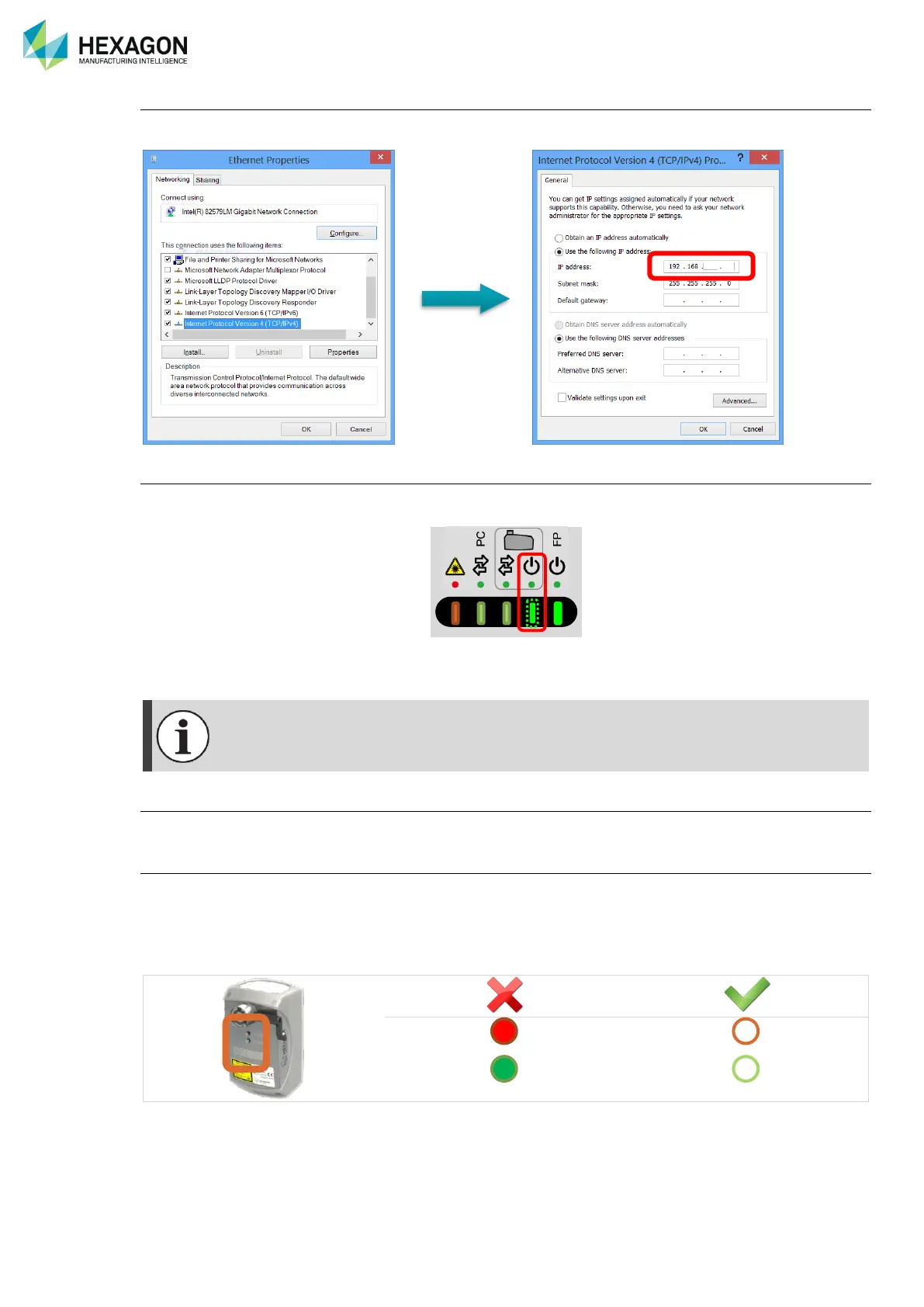

Computer Setup:
Setup on-board Ethernet port as 192.168.150.1 (controller @ = 192.168.150.100)
LEDs:
The Sensor Power LED on the Control Pack indicates if the sensor is ready to use or not. The LED is
blinking until the system is warmed up (~5mn).
Wait for the Sensor Power LEDs stops blinking before a correct use.
The warm-up time of the sensor may vary of 5 to 20 minutes depending on starting sensor
temperature and the ambient temperature.
Management Software
The HP-L-20.8 scanner is directly managed by RDS, no more installation is necessary.
Remove the scanner
Before removing the scanner from the arm, ALWAYS ensure that it is no more powered:
• Switch off the portable measuring arm
Or
• Press the “Switch off Scanner” button in RDS Scanning window or in the RDS Menu.
