In most of the cases, the Scanner can be left permanently on the wrist, even when tactile probe or non-
Contact Tube probe need to be used. However, to access narrow locations, as well as the Pistol grip, it can
be useful to take off the scanner from the wrist, providing then a smaller wrist.

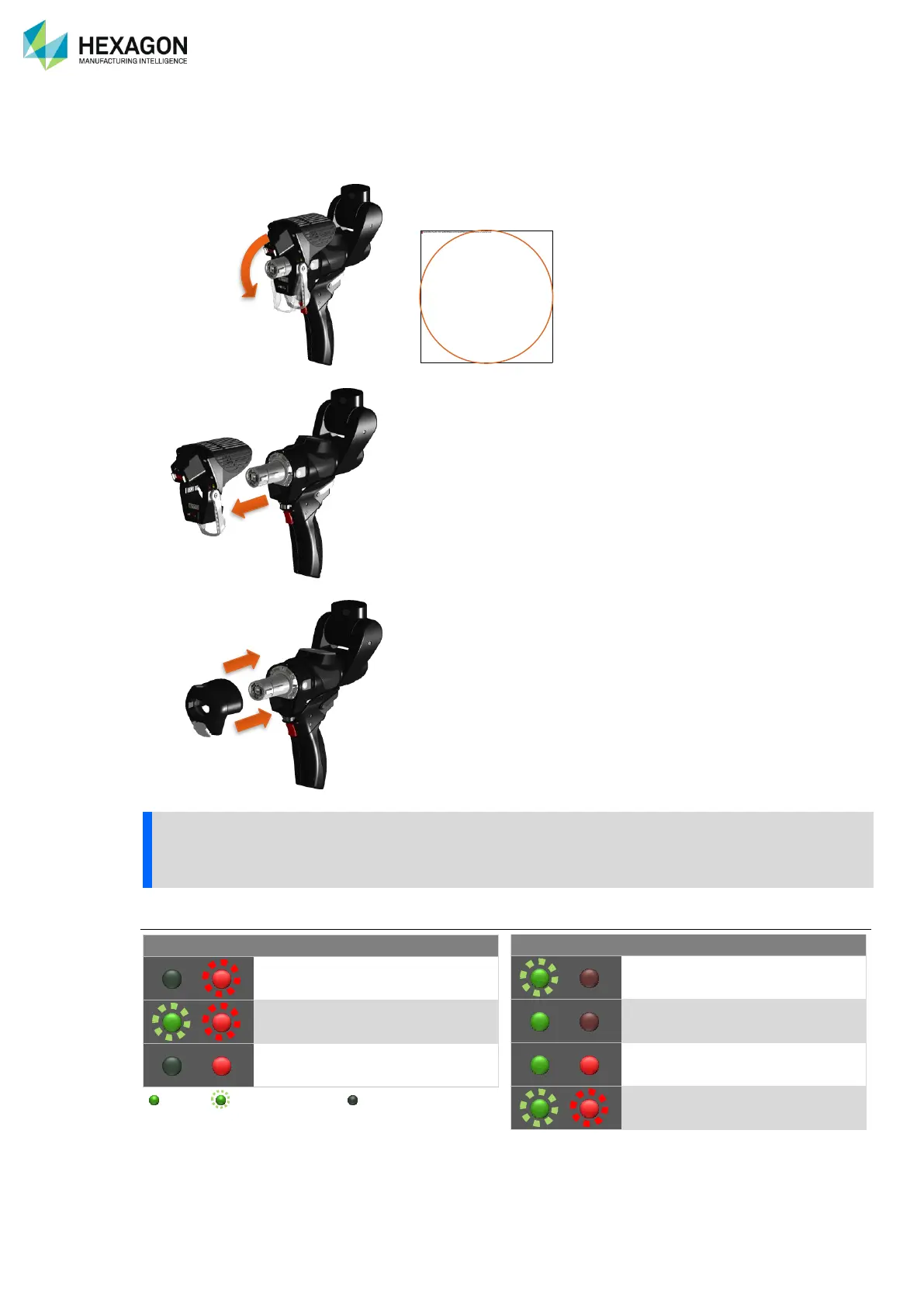

1. To remove the scanner, pull down the Locking lever to the unlocked status.
2. Take off the scanner
3. Then place back the Nose Cone.
NOTICE
Do not let the wrist without any protection on it: when no scanner is mounted, always place back the
Nose Cone.
Status indicator
Running time
Waiting for connection
Sensor connected
Acquisition
Error
Boot Up Time
Boot-up: Stage 1
Boot-up: Stage 2
Boot-up error
: On  : Blinking (3s)  : Off
