Hexagon Absolute Arm RS5 User Manual

Measure with the arm
H00007091 - Absolute Arm User Manual │Version 5.2.0 (2019-03-07) │115
F. MEASURE WITH THE ARM
F.1 HOW TO USE THE ARM

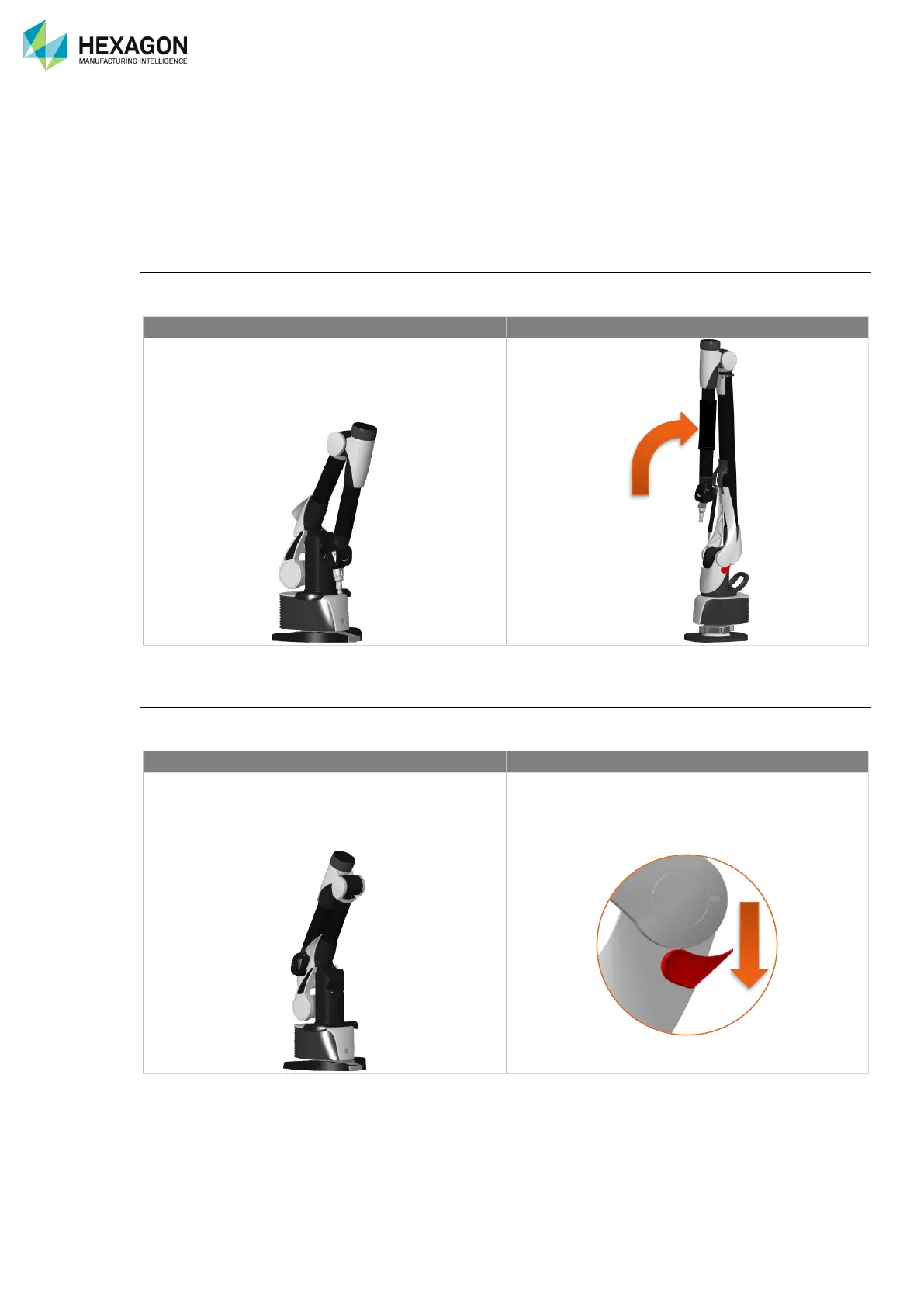

F.1.1 REST POSITIONS
Standard rest positions
When not in use, the arm should be put in its rest position. The arm naturally rests in a vertical position with
the elbow bent nearly 180°: move the arm up to highest level: the arm now can stay itself in its rest position.
1.2 Compact arm
2.0 to 4.5 arms
Secured rest position
If the arm needs to stay for a prolonged period in rest position, or to move the arm on a short distance, the
rest position needs to be secured.
1.2 Compact arm
2.0 to 4.5 arms
Back rest position:
approach the arm to its highest level and turn the
C axis to place the wrist on the back of the arm,
then place the wrist in the HomeRest.
SmartLock use:
Bring the arm to its rest position and lock the
counterbalance with the SmartLock lever
