Measure with the arm
H00007091 - Absolute Arm User Manual │Version 5.2.0 (2019-03-07) │142

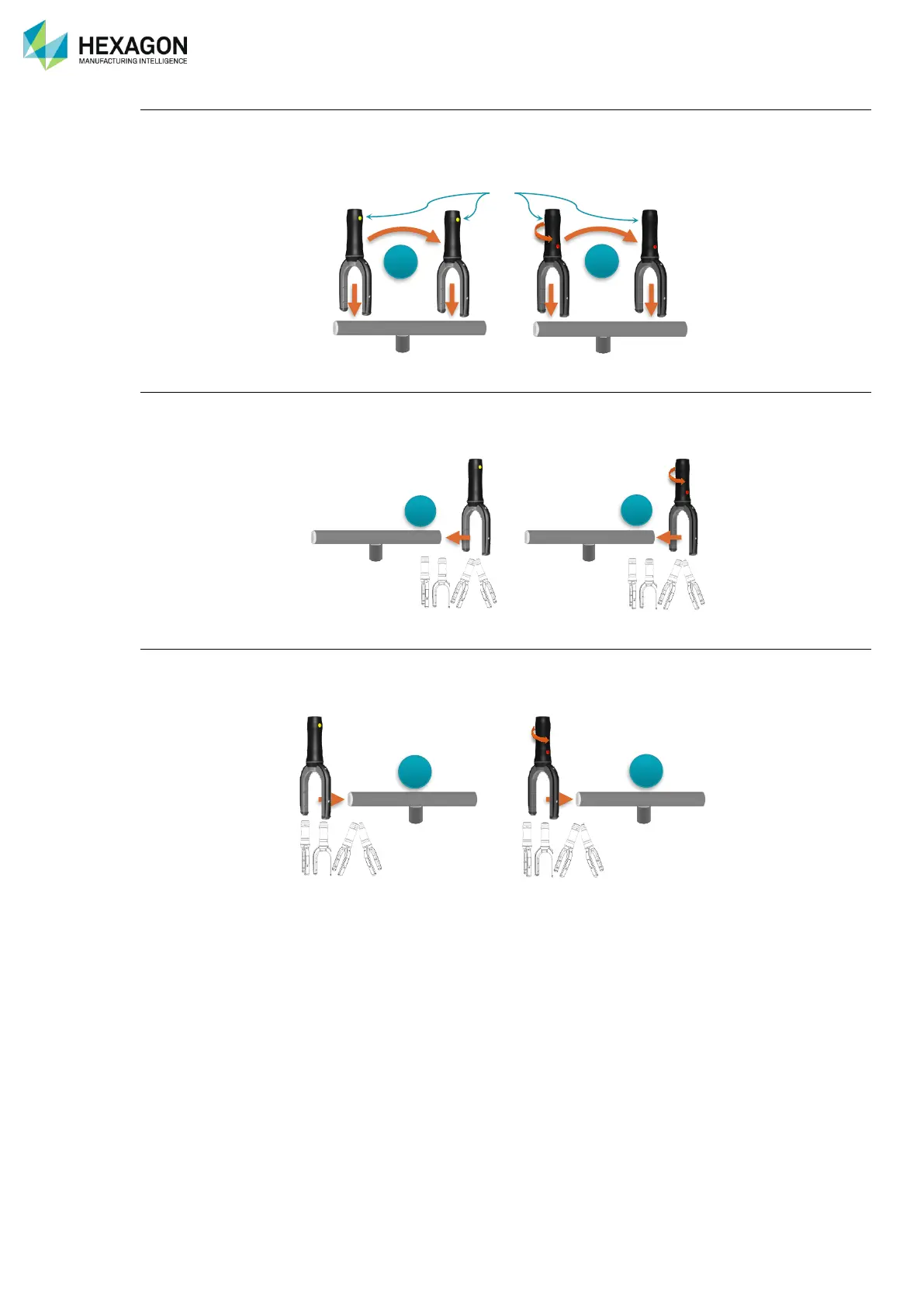

Horizontal tube measurement
Measure one point on the right-end section of the horizontal tube then one point on the left-end section,
keeping the probe as perpendicular as possible to the tube.
Do the measurement keeping the probe button toward the arm (INSIDE) (3), then turn the probe 180° and
do the measurement with the probe button opposite from the arm (OUTSIDE) (4).
Horizontal tube right extremity measurement
Measure 5 times the RIGHT extremity of the horizontal tube, giving different angles for each of the 5 times.
Do the measurement keeping the probe button on the RIGHT (5) then turn the probe 180° and do the
measurement keeping the probe button on the LEFT (6).
Horizontal tube left extremity measurement
Measure 5 times the LEFT extremity of the horizontal tube, giving different angles for each of the 5 times.
Do the measurement keeping the probe button on the RIGHT (7) then turn the probe 180° and do the
measurement keeping the probe button on the LEFT (8).
3
4
BT
6
5
8
7
