Components description
H00007091 - Absolute Arm User Manual │Version 5.2.0 (2019-03-07) │60

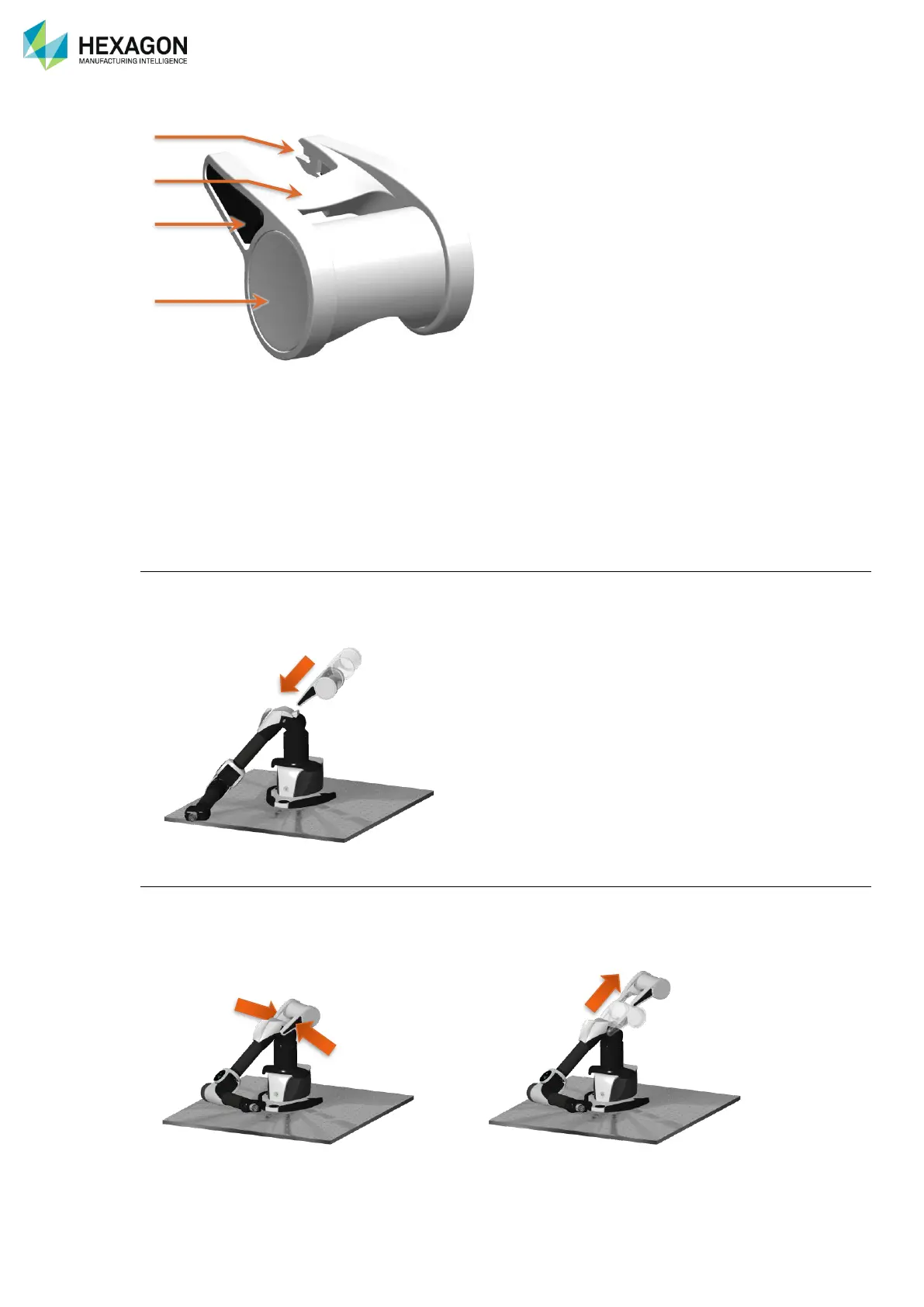

B.7.2 COUNTERWEIGHT (1.2 ARM)
a. Guide and lock to the arm
b. Handling side
c. Unlock button
d. counterweight
The 1.2 arm is balance by a removable counterweight at the back of the arm, that makes the handling
“Zero-G” and easy.
This counterweight is to be removed when put back in its transport case.
The mounting and dismounting of the counterweight is very easy:
Setup
First ensure that the 1.2 arm is correctly and safely laid on a levelled and stable work surface.
Hold the counterweight by the back.
Approach the counterweight on the back of the arm until it is locked (double “Click”).
Dismounting
Before any removal operation, first ensure that the 1.2 arm is correctly and safely laid on the work surface.
With both hands, hold the counterweight and press simultaneously on each side unlock buttons.
Then remove the counterweight.
a
c
d
b
