Hexagon Absolute Arm RS5 User Manual

Measure with the arm
H00007091 - Absolute Arm User Manual │Version 5.2.0 (2019-03-07) │156

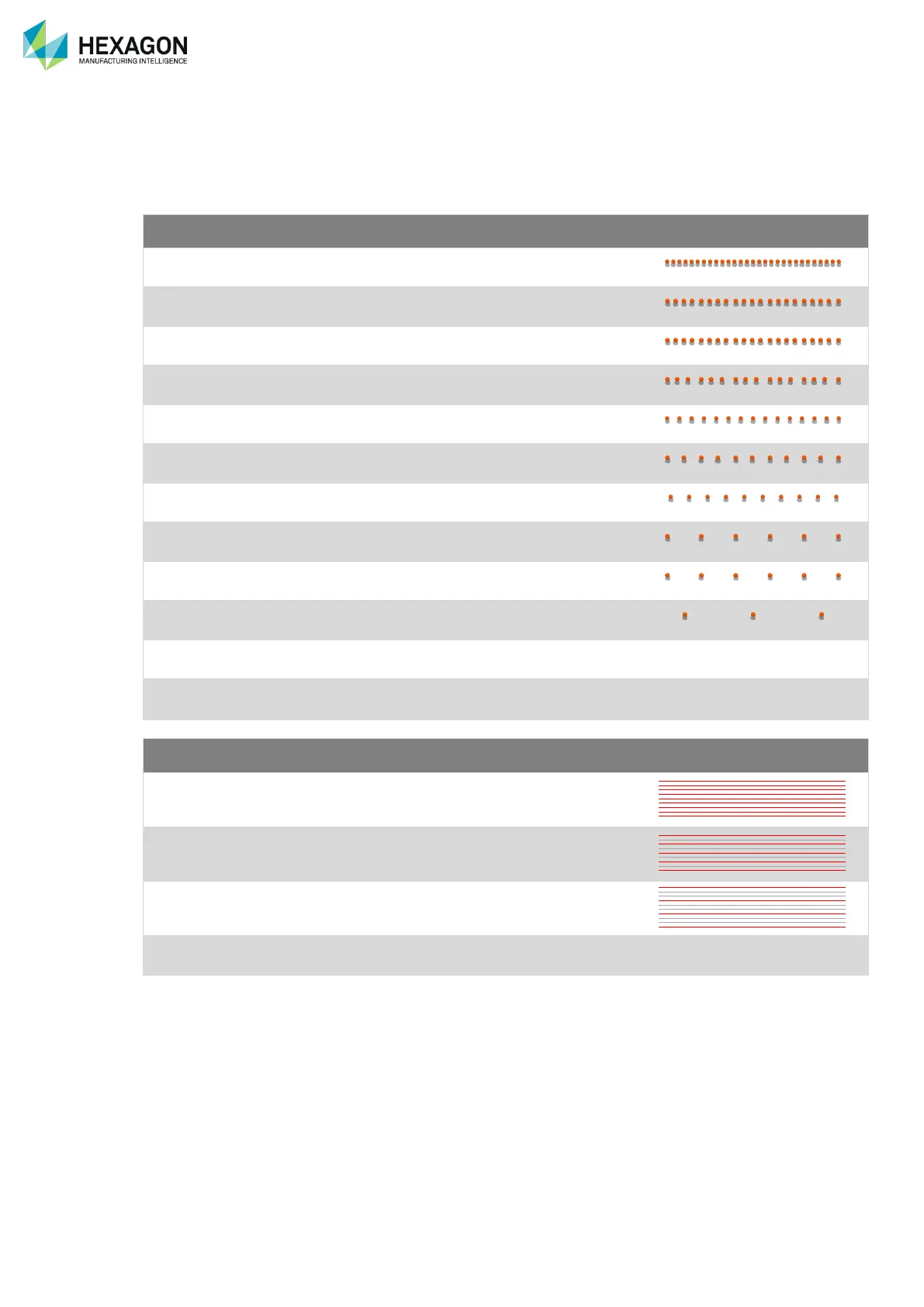

F.6.10 SAMPLING FILTERS (RS5 / HP-L-20.8)
To improve the performance and speed of digitizing (depending on the performance of the computer and
the final software), it is possible to reduce the number of digitized points by skipping a regular percentage
of points, points by points or line by line.
Points sampling
RS5
HP-L-20.8
None =keep all the points (100 %)
✓
✓
80 % = keep 4 points on 5
✓
75 % = keep 3 points on 4
✓
60 % = keep 3 points on 5
✓
50 % = keep 1 point on 2
✓
40 % = keep 2 points on 5
✓
33 % = keep 1 point on 3
25 % = keep 1 point on 4
✓
20 % = keep 1 point on 5
✓
10 % = keep 1 point on 10
✓
5 % = keep 1 point on 20
✓
…
2.5 %= keep 1 Point on 40
✓
Line sampling
HP-L-20.8
None = keep all the lines
✓
1/2 = keep 1 line on 2 (50% remain)
✓
1/3 = keep 1 line on 3 (33% remain)
✓
Etc.…
