Measure with the arm

H00007091 - Absolute Arm User Manual │Version 5.2.0 (2019-03-07) │153

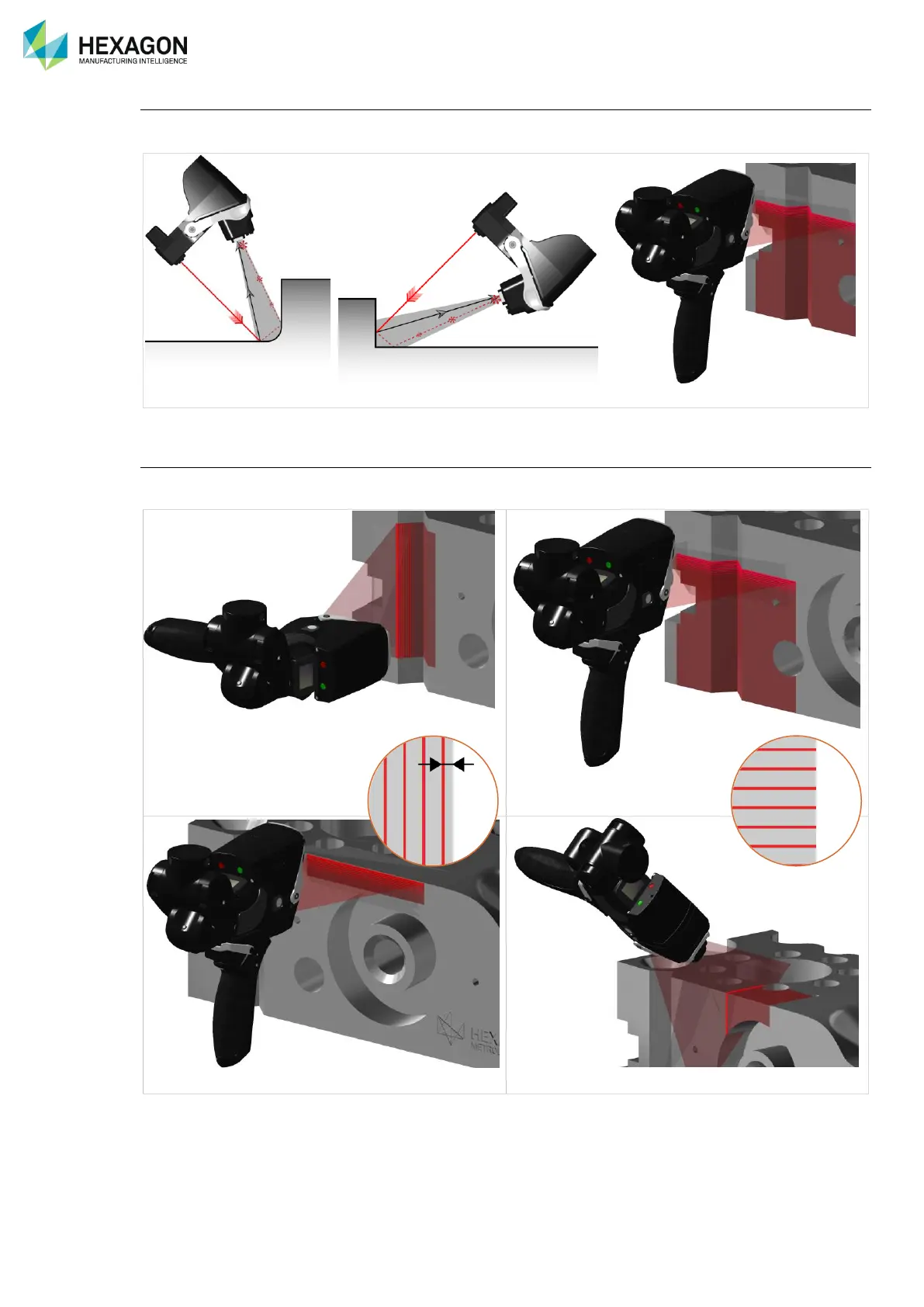

Secondary Reflection

Secondary reflections can occur on reflective, concave surfaces; avoid these problems through careful

orientation of the sensor as show below.





Edges

When measuring an edge, to get all its details, orientate the laser at 90 degrees to the feature as shown

on the right side.




