Components description
H00007091 - Absolute Arm User Manual │Version 5.2.0 (2019-03-07) │50

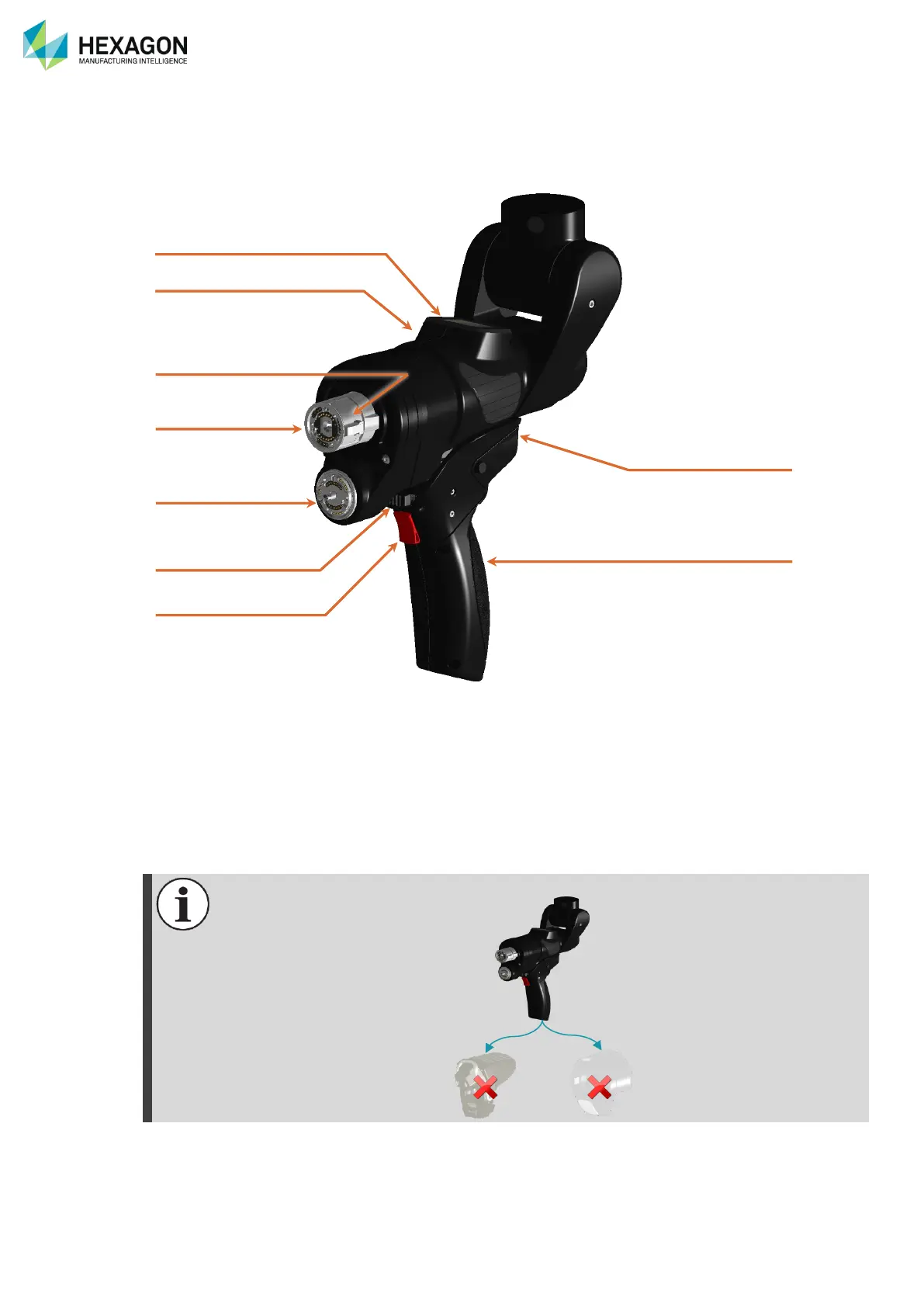

B.5.6 SE CONFIGURATION
The Absolute Arm SE is the 7 axes configuration for a use with an external scanner such as the HP-L-
20.8.
For this purpose, a second TKJ probe connector is available on the wrist through a fixed SE adapter.
a. Wrist display
b. 3 State button (B3S) on Wrist display
c. Main TKJ Lock
d. Main (centred) TKJ-26 probe connector
e. Offset TKJF-13 probe connector for external scanners
f. 3 State button (B3S) on Pistol Grip
g. Trigger button (BT) on Pistol Grip
h. Pistol Grip locking lever
i. Fixed Pistol Grip
The SE wrist is not compatible with the RS5 Scanner neither the Nose Cone.
f
g
i
a
b
e
h
d
c
