Hexagon Absolute Arm RS5 User Manual

Components description
H00007091 - Absolute Arm User Manual │Version 5.2.0 (2019-03-07) │38
B.4 6 AXES WRIST DESCRIPTION
The Absolute Arm 6-axes Wrist is designed to receive contact probes, touch trigger probes or non-contact
probes for tubes, as well as Laser scanners.
On the wrist, one probe connector is available.
A Trigger Button (BT) is used to measure points, start / stop scan.
A 3-State button (B3S) is used to control the operations:
• Right for validation purposes
• Centre for activating navigation on the Quick Access Menu
• Left for cancel purposes
For more details about the use of the buttons, please jump to chapter F.1.7

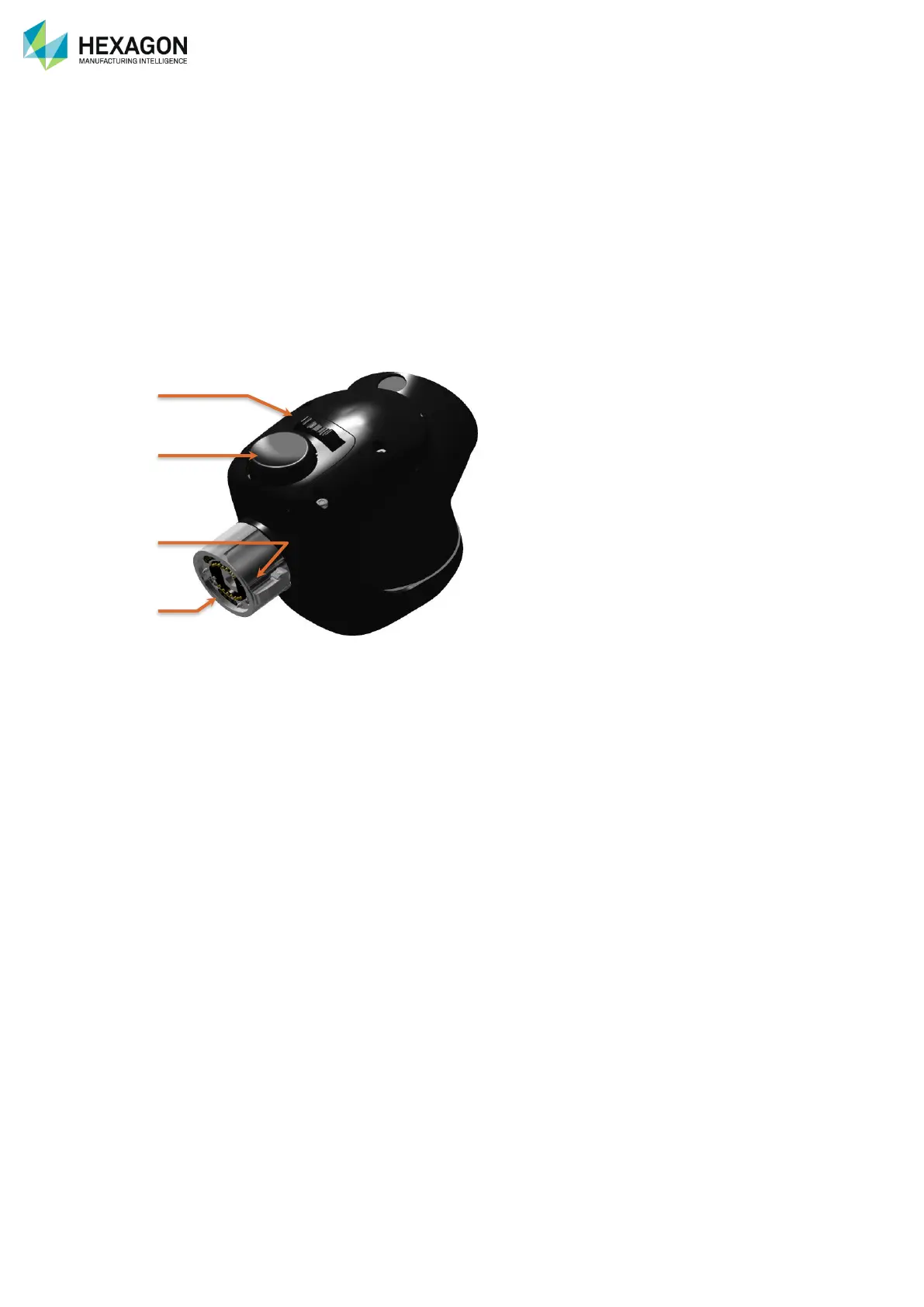

Fig. 20 : Wrist description
a. 3 State button (B3S)
b. Trigger button (BT)
c. TKJ lock
d. TKJ 26 probe connector
a
b
d
c
