B.5.4 NOSE CONE
The Nose Cone must be fixed on the Swivel when no scanner is mounted.
It provides a Trigger Button near the probe and an ergonomic handling when the Swivel is used in slim
configuration.

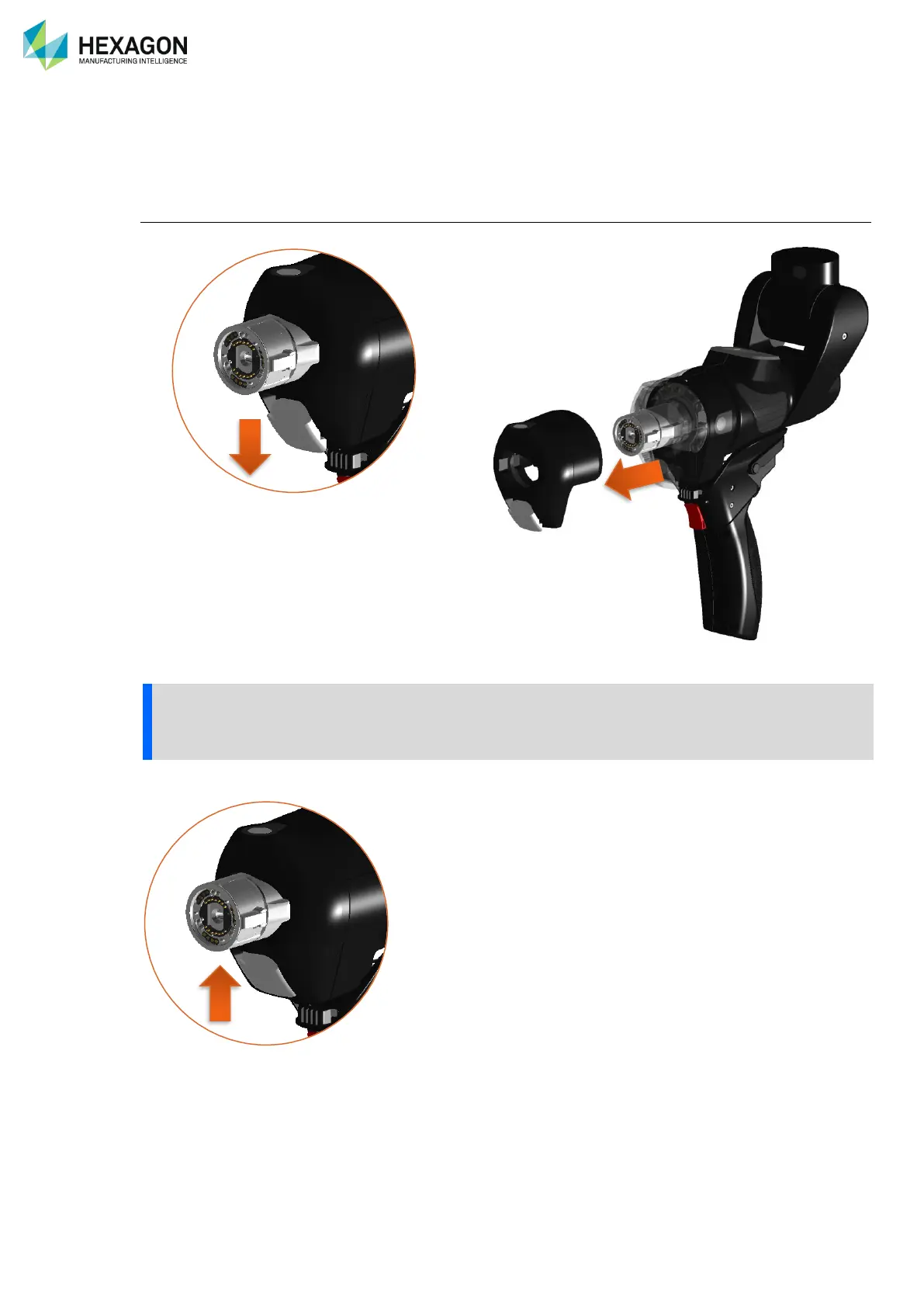

Mount / Remove the Nose Cone
1. Pull down the mounting lever
2. Remove the Nose Cone
NOTICE
Do not let the wrist without any protection on its end: either the scanner either the Nose Cone must be
mounted.
To mount the Nose Cone, place it back and secure it with the lever.
