Measure with the arm
H00007091 - Absolute Arm User Manual │Version 5.2.0 (2019-03-07) │140

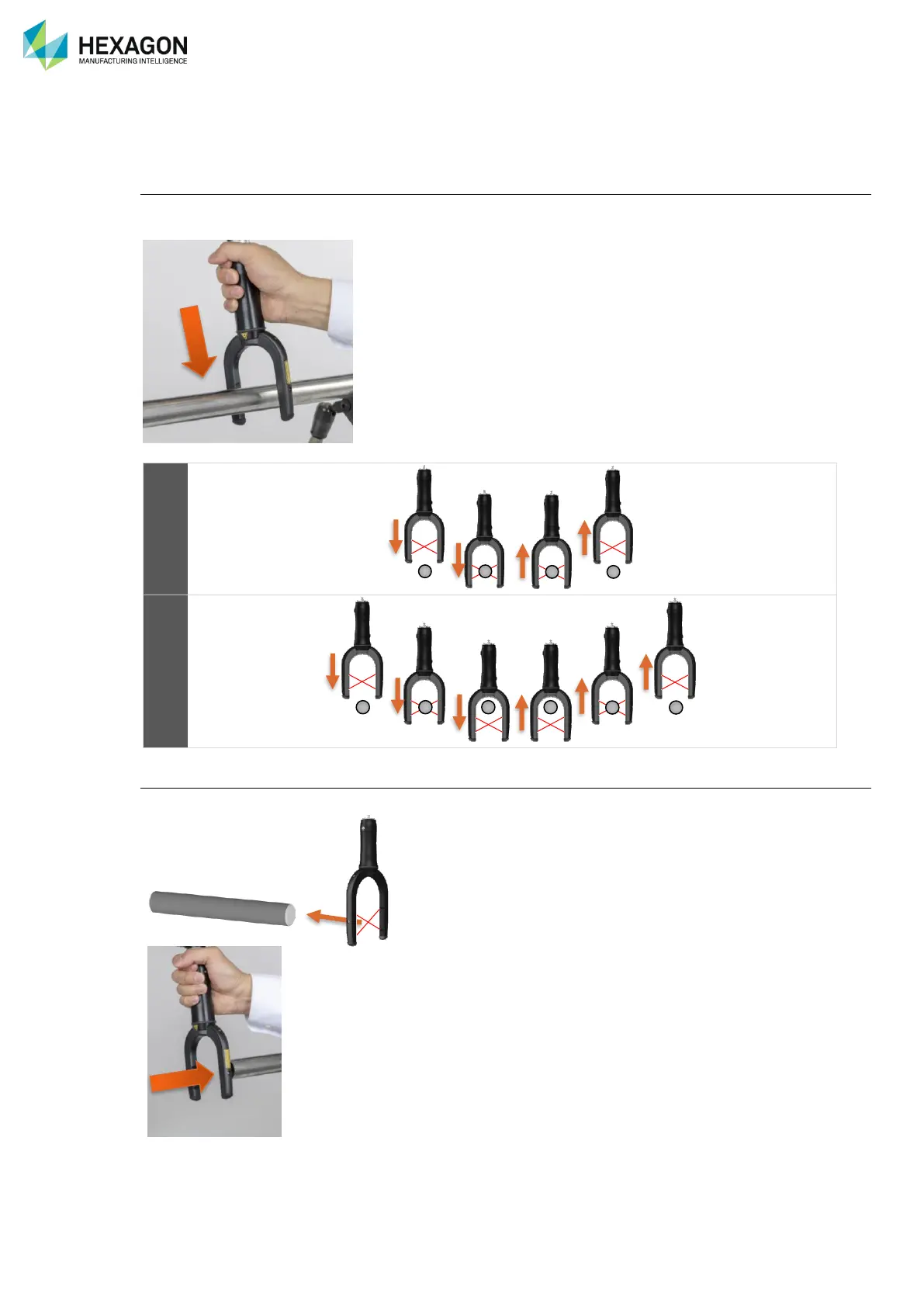

F.5 HOW TO USE NC-PROBES FOR TUBE
F.5.1 MEASURING A TUBE
Straight measurement
To measure a straight, the two beams of the probe have to be cut moving down then moving up.
One beep is emitted each time a beam is cut or released, that means 8 beeps (=8 events) for one point
2 modes can be used: Single mode and double mode.
Single
Double
End measurement
To measure the end of a tube, the beams must be cut at their intersection (simple mode only)
