Installation
H00007091 - Absolute Arm User Manual │Version 5.2.0 (2019-03-07) │79
D.1.6 VACUUM BASE (OPTION)
WARNING
For all safety related information, please read the complete vacuum base manual.
NOTICE
The vacuum base can be used with arm sizes up 2.5m only.
Overview
The vacuum base is designed to be placed on a perfect plane surface with no asperity:

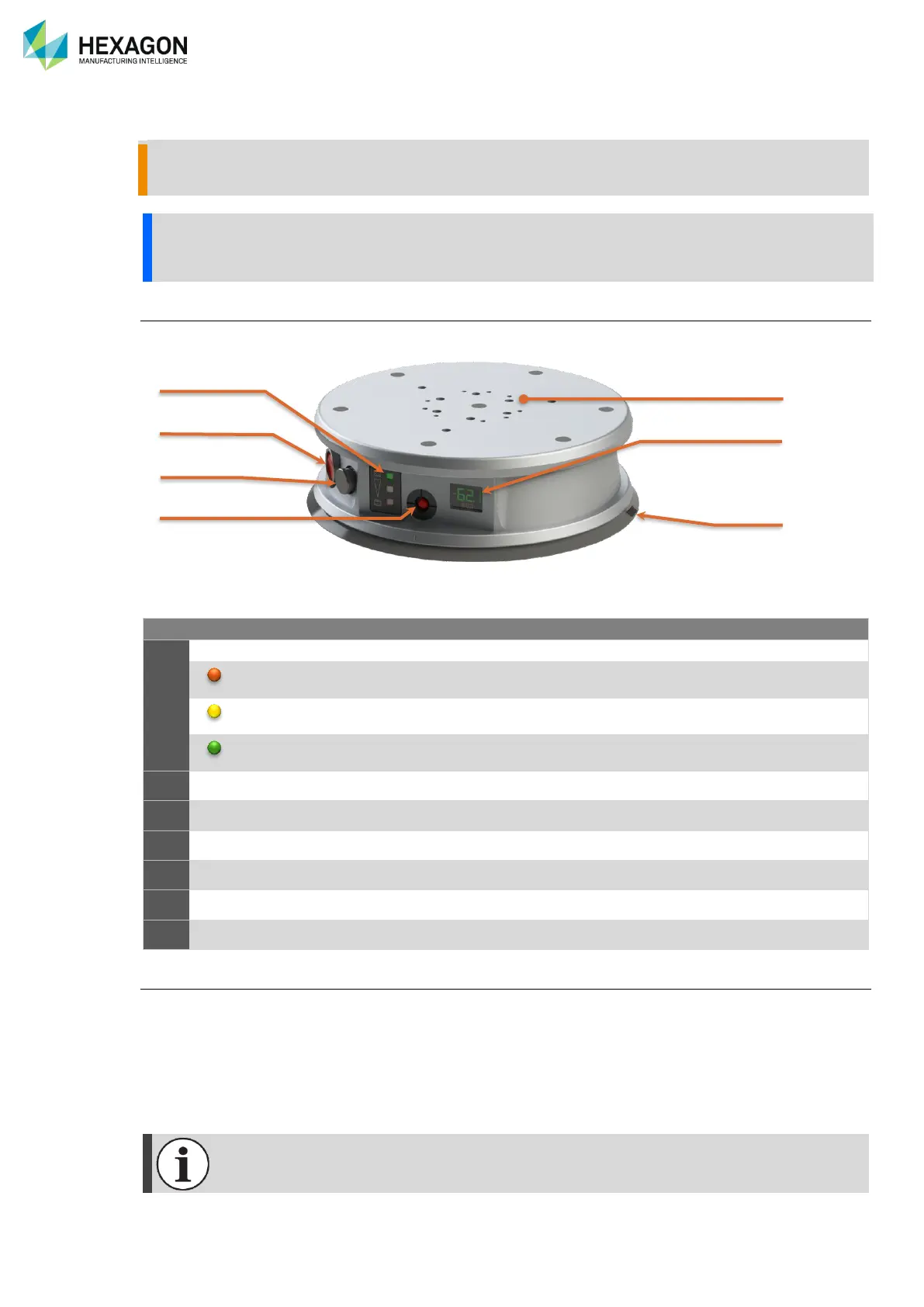

Fig. 31 : Vacuum base description
Item
Description
a
Battery LEDs
low battery, charge immediately
battery half charged, charge shortly
battery fully charged, optimal conditions for use
b
On/Off button
Powers on the vacuum pump
c
Power supply
Plug into power supply to charge the battery
d
Ventilation
To release the air under the base
e
Top plate
Threaded holes to fix the Mounting ring
f
Manometer
Ensure pressure is constantly -12, 32 psi (-0.85 bar) during operation.
g
Base
Including vacuum holes
Quick installation
1. Fix the Mounting Ring on the vacuum base.
2. Ensure the worktable is air-impermeable, smooth and clean.
3. Place the base on the work table
4. Plug into the power supply
5. Switch on the vacuum
6. The base is ready for arm installation.
For more information, please read the complete vacuum base manual.
a
b
c
d
e
f
g
