Measure with the arm
H00007091 - Absolute Arm User Manual │Version 5.2.0 (2019-03-07) │149

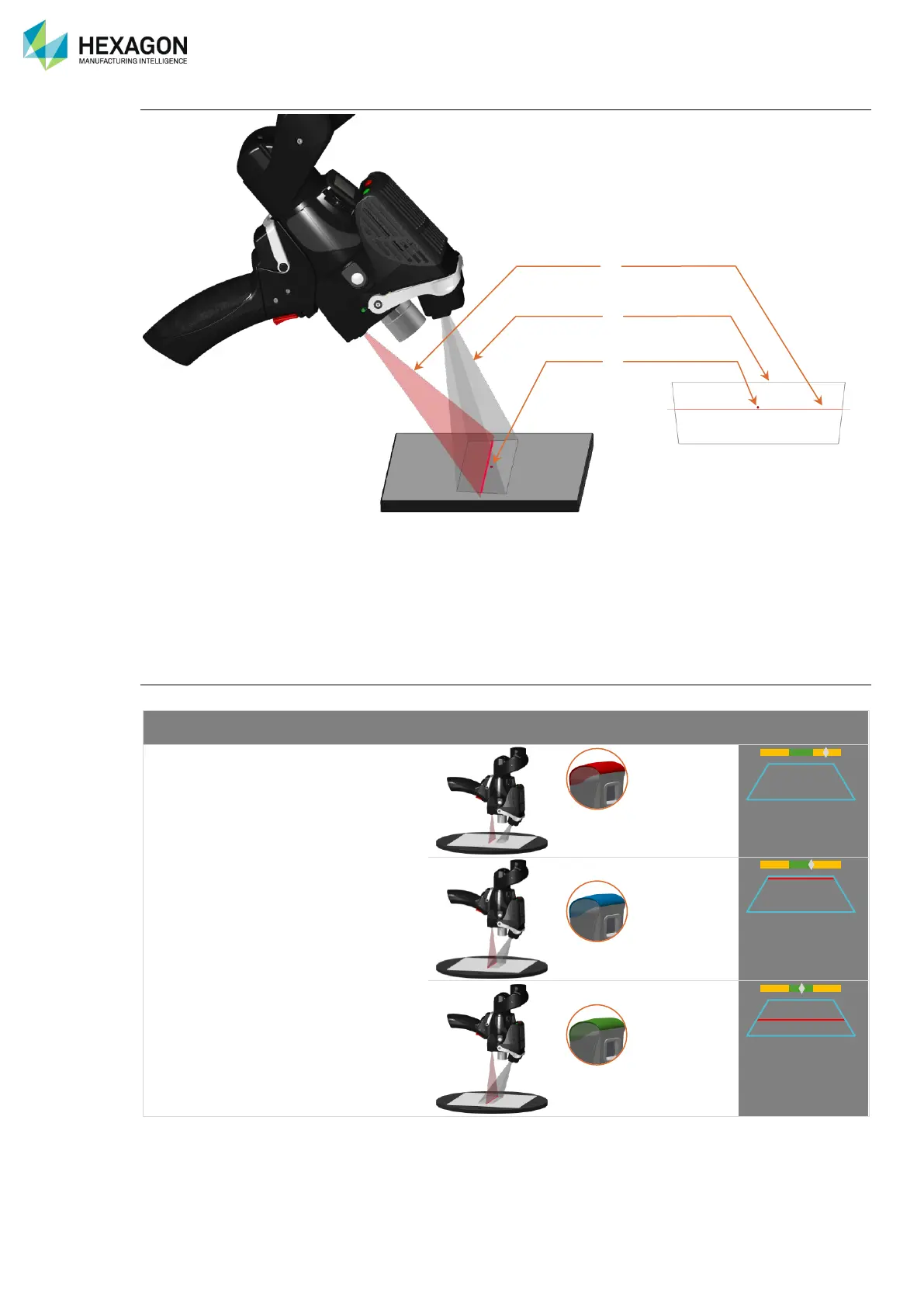

RS5 Field of view
a. Measuring laser
b. Field of view
c. Laser guide
When digitizing, align the measuring laser line with the laser point guide.
Scanning Z-scales
Distance
Scanner
RDS
Scan out of
range – too
close
Inside
scanning
range - Low
Inside
scanning
range –
Optimum
range
a
b
c
