Issue 2.0
SV9100 Networking Manual 5-3
Calling from a TDM phone and out a IP trunk uses one DSP.
Calling from a TDM phone across IP K-CCIS to another TDM phone uses one
DSP.
Calling from an IP Phone across IP K-CCIS to another IP Phone uses two DSP
resources at each location.
1.3 Systems Requirements
Only voice (RTP/RTCP) processing functions are mounted among VOIP functions
on the GPZ-IPLE and all call control functions are handled by the GCD-CP10.
Only one GPZ-IPLE blade can be mounted on the GCD-CP10 at any given time.
The GPZ-IPLE daughter board has Layer2 Switch ability, along with a Gigabit
Ethernet LAN interface and RTP/RTCP packet is transmitted and received
directly.
The number of ports supported by the IP K-CCIS (Peer-to-Peer) application
depends on the number of ports licensed in the GCD-CP10. For example, if the
GCD-CP10 is installed with a GPZ-IPLE and the GCD-CP10 is licensed for 64
VoIP Channels. The maximum configuration supported by the CCISoIP
Application is 64 CCISoIP channels.
1.4 Installation
The GPZ-IPLE board can be mounted only on the GCD-CP10. Only one
GPZ-IPLE board at a time can be mounted on the GCD-CP10.

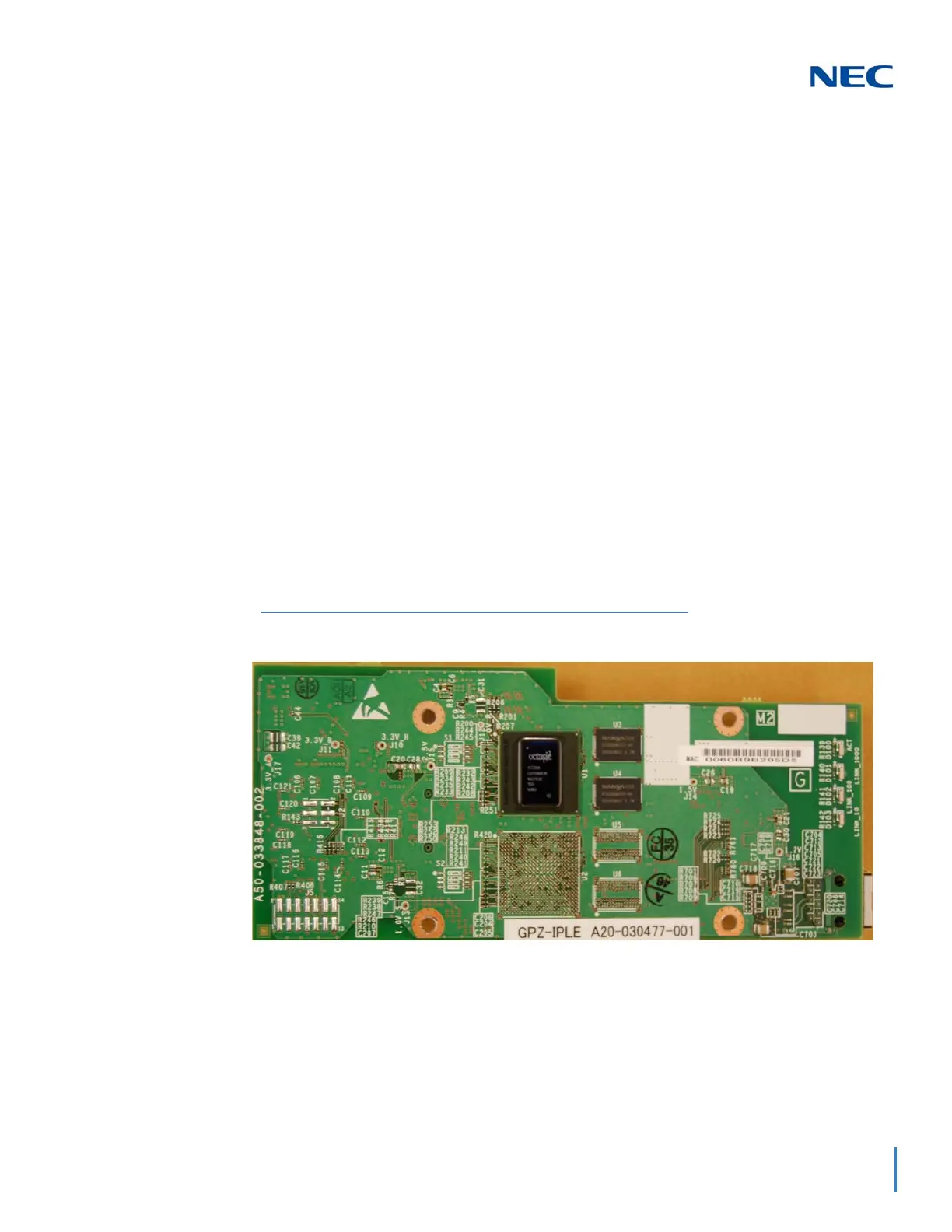

Figure 5-2 GPZ-IPLE Daughter Board
