SV9100 Networking Manual 10-7

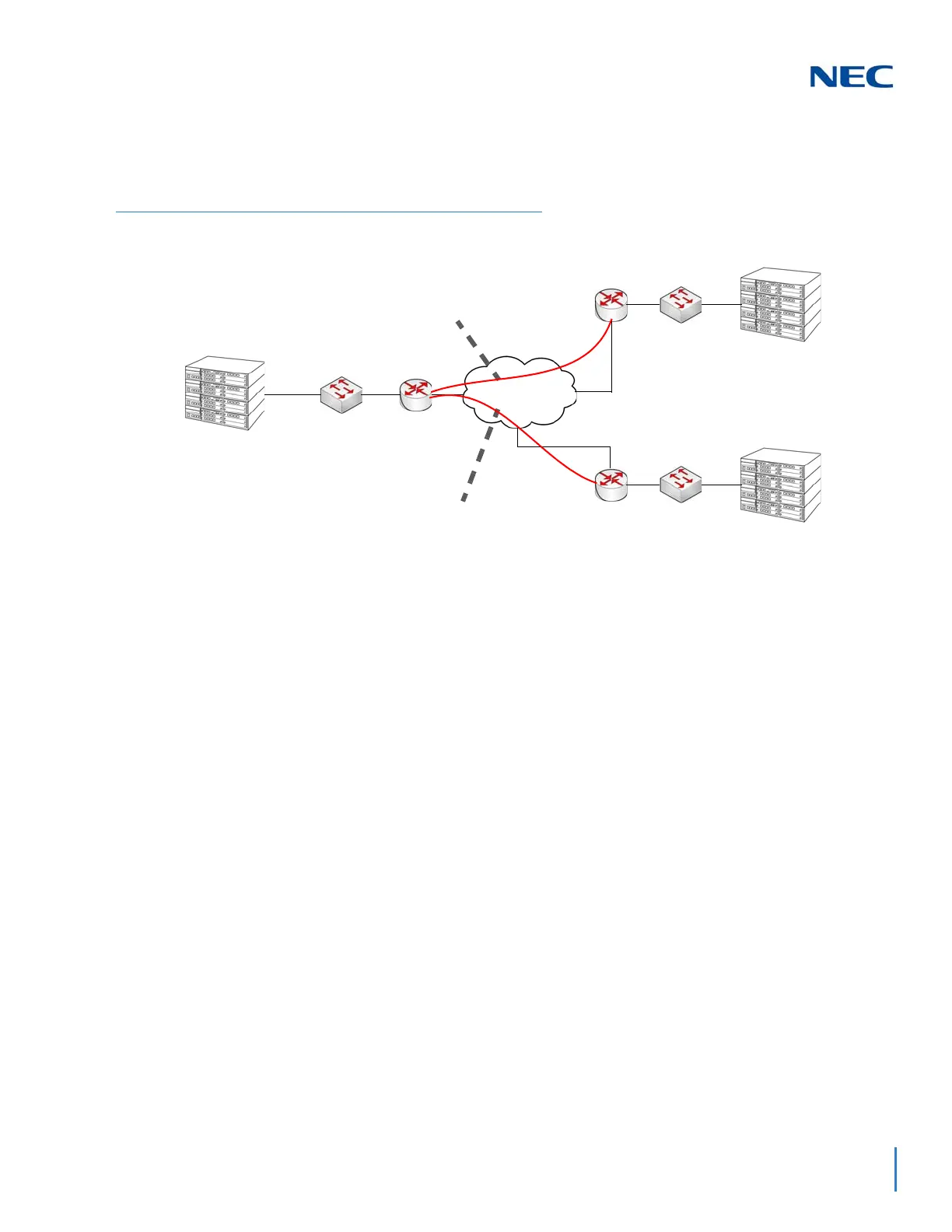

The following diagram shows three sites connected together via VPN. This
network is not fully meshed due to the lack of a VPN tunnel between Sites B and
C.
Site A can communicate with phones on sites B and C. Phones on sites B and C
cannot communicate with each other. To correct this issue, another VPN
connection between sites B and C is required.
Figure 10-3 VPN Network
VPN Tunnel
Between Sites A and C
IPLE Signaling Address = 192.168.15.5/
24
IPLE DSP(1) = 192.168.15.6/24
IPLE Signaling Address = 192.168.20.5/
24
IPLE DSP(1) = 192.168.20.6/24
IPLE Signaling Address = 192.168.15.5/
24
IPLE DSP(1) = 192.168.15.6/24
Internet
SITE A
SITE C
SITE B
IPLE
IPLE
IPLE
VPN Tunnel
Between Sites A and B

NEC Univerge SV9100 Specifications

General

VoIP Support	Yes
VoIP Protocols	SIP, H.323
Voicemail	Integrated voicemail
Networking	Yes, via IP
Unified Communications	Yes
Mobility	Supports mobile extensions and applications
Type	IP-PBX
Network Interfaces	Gigabit Ethernet
Power Supply	AC 100-240V, 50/60Hz
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Weight	Varies depending on chassis and expansion cards
