Issue 2.0

8-34 IP Multiline Station (SIP)

4. Select either Enable or Disable (default) and click OK.

 The remaining data packets settings for VLAN on the PC Port are

the same as those for the voice packets.

5. VLAN ID allows an entry of 1~4094 for the VLAN ID. VLAN Mode

must be enabled for this entry to be valid.

Enter the VLAN ID, and click OK.

6. VLAN Priority allows an entry of 0~7 for the VLAN Priority. VLAN

mode must be enabled for this entry to be valid.

Enter the required priority, and click OK.

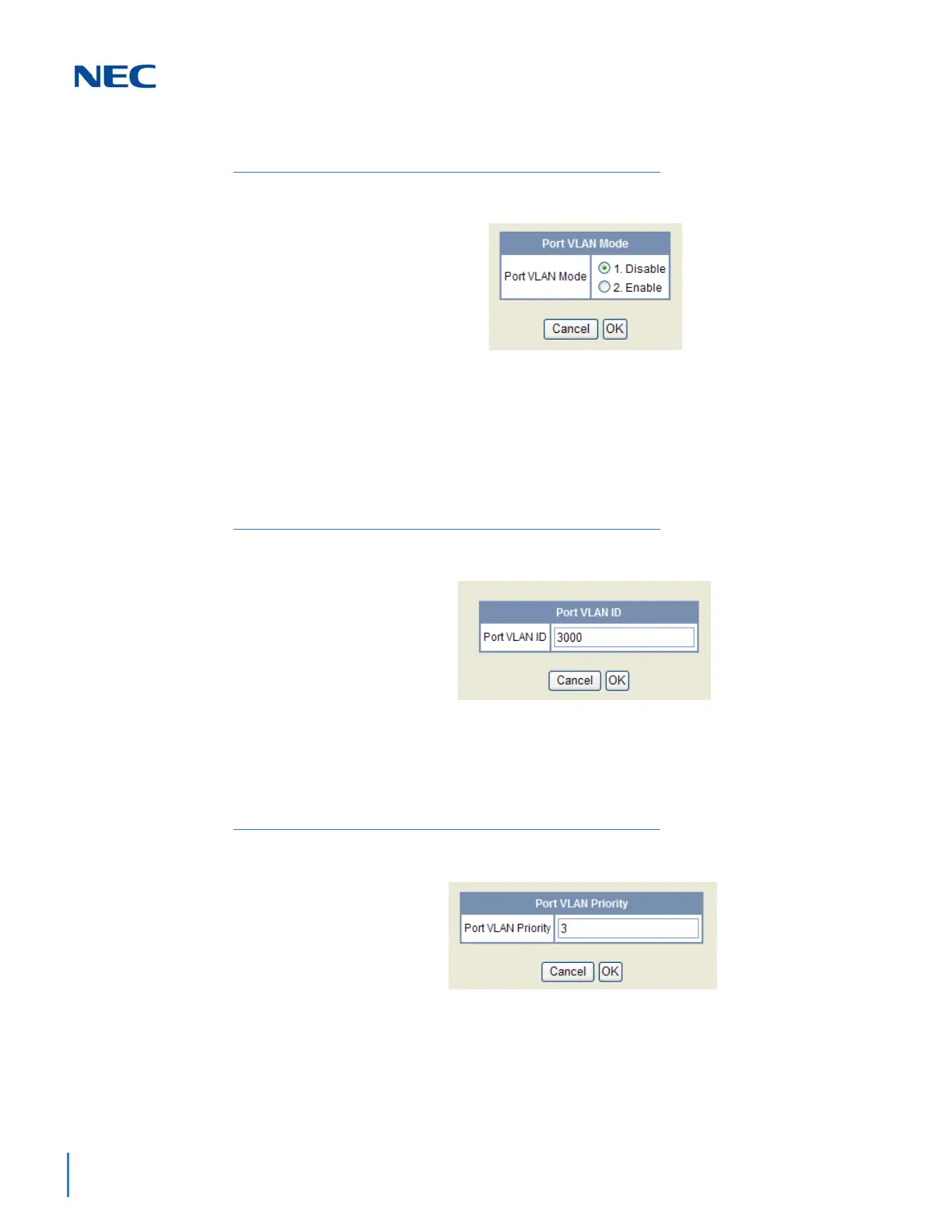

Figure 8-22 Port VLAN Mode

Figure 8-23 Port VLAN ID

Figure 8-24 Port VLAN Priority
