Issue 2.0

SV9100 Networking Manual 8-31

15.3.2 Tagging Voice Packets Using IP Phone

Follow these steps to program for voice packet tagging using an IP

telephone.

1. Log in. Refer to Section 15.3.1 Logging In on the PC on page

8-30.

2. To apply a tag to the voice packets only, go to Network

Settings>Advanced Settings>LAN port settings.

3. Access the following three menus to select options for LAN Port

Settings:

 VLAN Mode

 VLAN ID

 VLAN Priority

4. Select the VLAN Mode to enable or disable this feature.

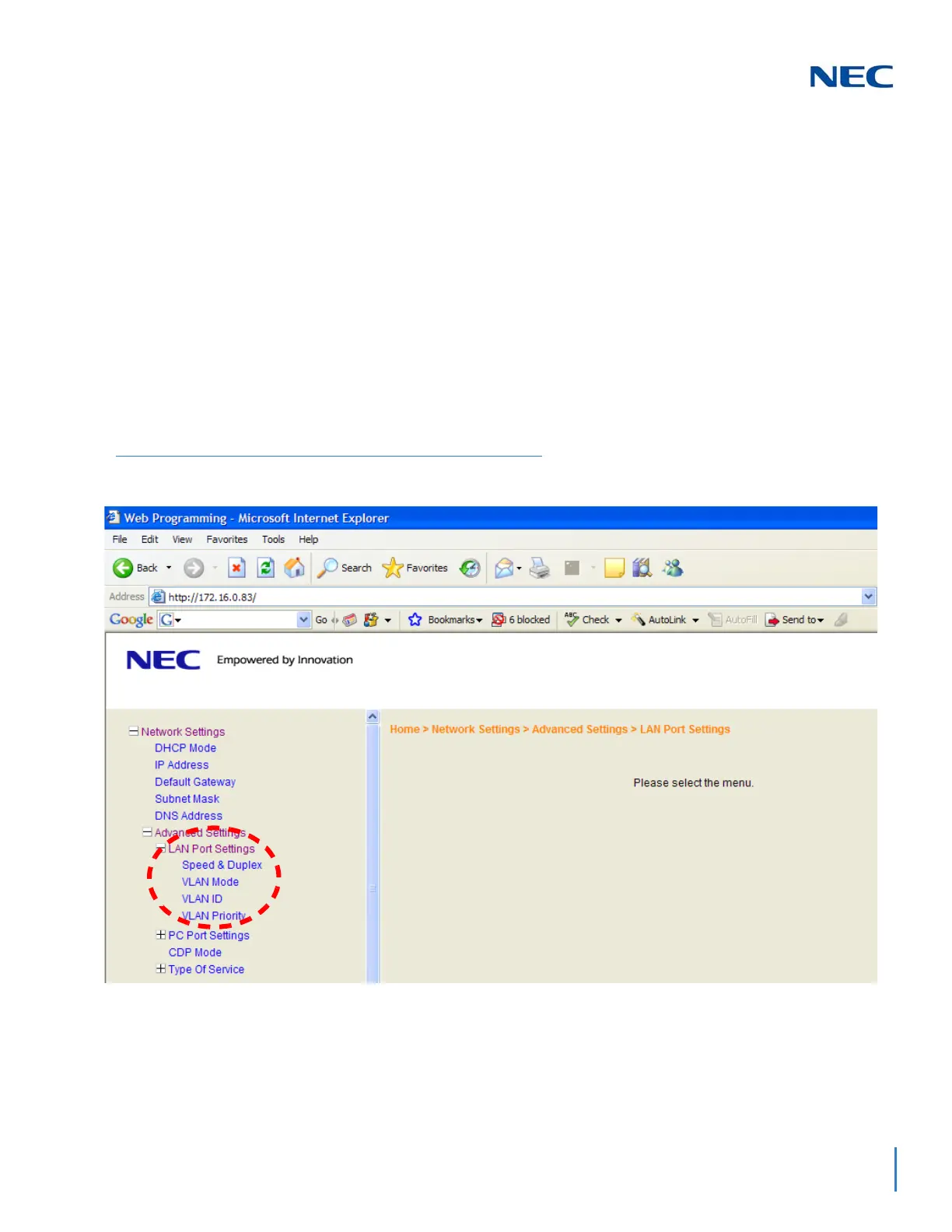

Figure 8-17 LAN Port Settings Window
