SECTION 3 INSTALLING THE GCD-CCTA (CCIS Trunk Interface)
3.1 Description
The GCD-CCTA blade is common to both UNIVERGE SV9100 and SV9300
systems.
The Common Channel Handler Interface blade is a digital trunk blade that
terminates FT1 trunks (up to 24 DS-0 channels) providing a common channel
signal interface.
The GCD-CCTA (Common Channel Handler) is an optional blade that provides a
common channel signal through the GCD-CCTA to a K-CCIS network and
controls the signaling between the KTS and the CP10. Each GCD-CCTA blade
supports one K-CCIS link. Eight GCD-CCTA blades can be installed per system.
The T1 interface has a single 24 channel 64kb/s digital signal circuit that can be
configured for T1 trunking.

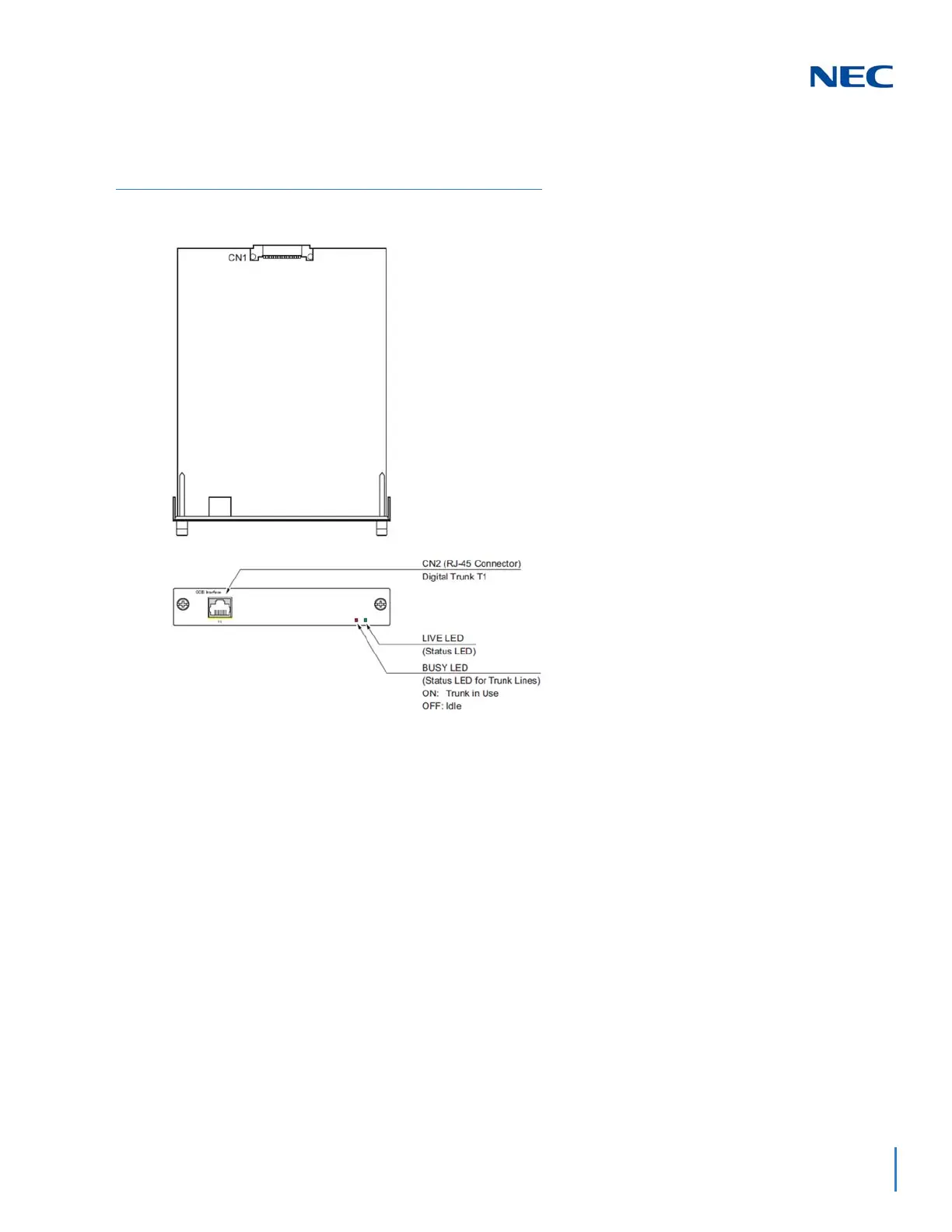

Figure 2-2 GCD-CCTA Blade

NEC Univerge SV9100 Specifications

General

VoIP Support	Yes
VoIP Protocols	SIP, H.323
Voicemail	Integrated voicemail
Networking	Yes, via IP
Unified Communications	Yes
Mobility	Supports mobile extensions and applications
Type	IP-PBX
Network Interfaces	Gigabit Ethernet
Power Supply	AC 100-240V, 50/60Hz
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Weight	Varies depending on chassis and expansion cards
