5-6 SV9100 IP K-CCIS
See Figure 5-4 GCD-CP10 LED Locations for the location of the LEDs on
the blade.
LED indications for the GPZ-IPLE daughter board are shown in Table 5-1
VOIPDB LED Indications. Each LED is listed with its associated function,
LED status and Operation status.

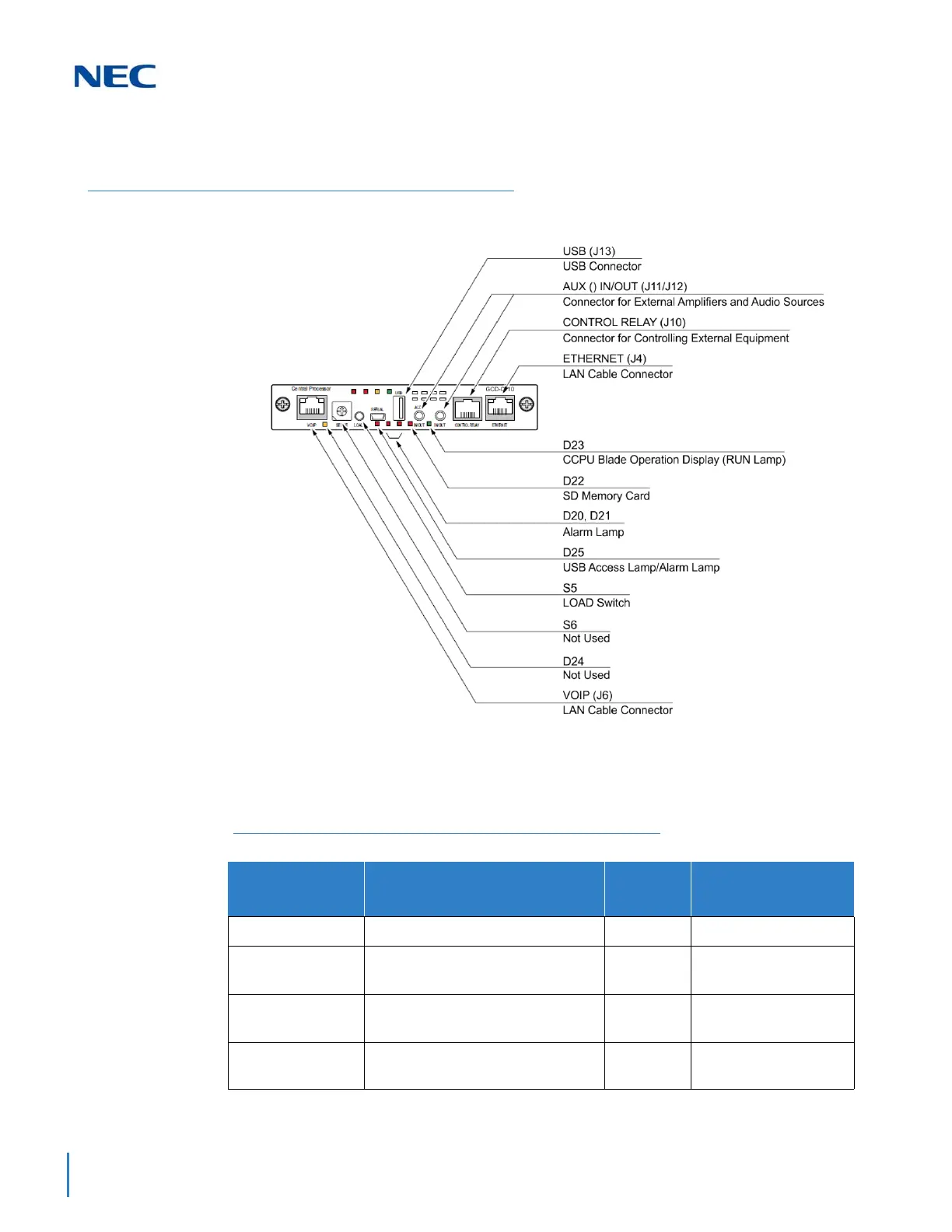

Figure 5-4 GCD-CP10 LED Locations
Table 5-1 VOIPDB LED Indications
LED Function
LED
Status
Operation Status
Link 10 (LED 10) 10 Base-T link speed indicator On Red 10 Base-T link up
Link 100 (LED
100)
100 Base-T link speed indicator On Red 100 Base-T link up
Link 1000
(LED 1G)
1000 Base-T link speed indicator On Yellow 1000 Base-T link up
ACT (LED A) Link activity or data transmission
and reception.
On Green Link up completed

NEC Univerge SV9100 Specifications

General

VoIP Support	Yes
VoIP Protocols	SIP, H.323
Voicemail	Integrated voicemail
Networking	Yes, via IP
Unified Communications	Yes
Mobility	Supports mobile extensions and applications
Type	IP-PBX
Network Interfaces	Gigabit Ethernet
Power Supply	AC 100-240V, 50/60Hz
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Weight	Varies depending on chassis and expansion cards
