5-32 SV9100 IP K-CCIS

SECTION 3 PROGRAMMING EXAMPLE

3.1 SV9100 IP K-CCIS Programming Example 1

This is an example of UNIVERGE SV9100 program data assignments for a 4-digit

Closed Numbering Plan using Closed Number Blocks. The following system

configurations are used for all four systems:

 Each system is a single chassis with one CHS2U.

 Each system has 16 multiline terminals.

 Each system has eight analog trunks.

Assume that the systems are defaulted (first power on) with the following cards

installed as described in the following table.

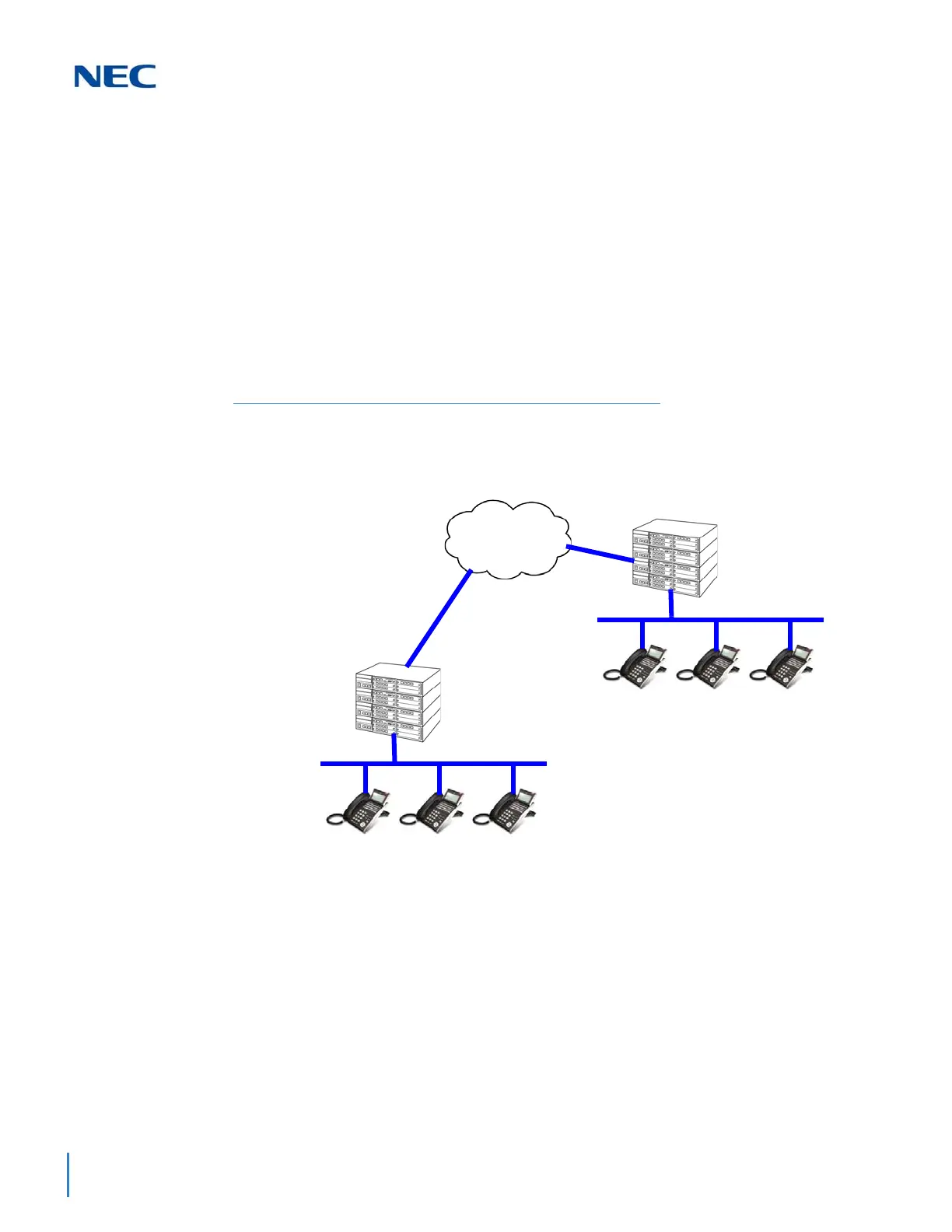

Figure 5-11 Programming Example 1

IP Network

System B

Point Code 00002

GCD-CP10:

192.168.1.20

GW1: 192.168.1.21

TEL 1102

1100s

1000s

TEL 1101TEL 1100

TEL 1002TEL 1001TEL 1000

System A

Point Code 00001

GCD-CP10:

192.168.1.10

GW1: 192.168.1.11

Default Chapter3
