8-12 IP Multiline Station (SIP)

8.4 Example Configuration 3 - Static IP Addressing, Routed WAN

This example shows IP Phones connected to an UNIVERGE SV9100 system

over a Wide Area Network (WAN), with static IP addressing. This is a typical

scenario - a small branch office connecting to the main office.

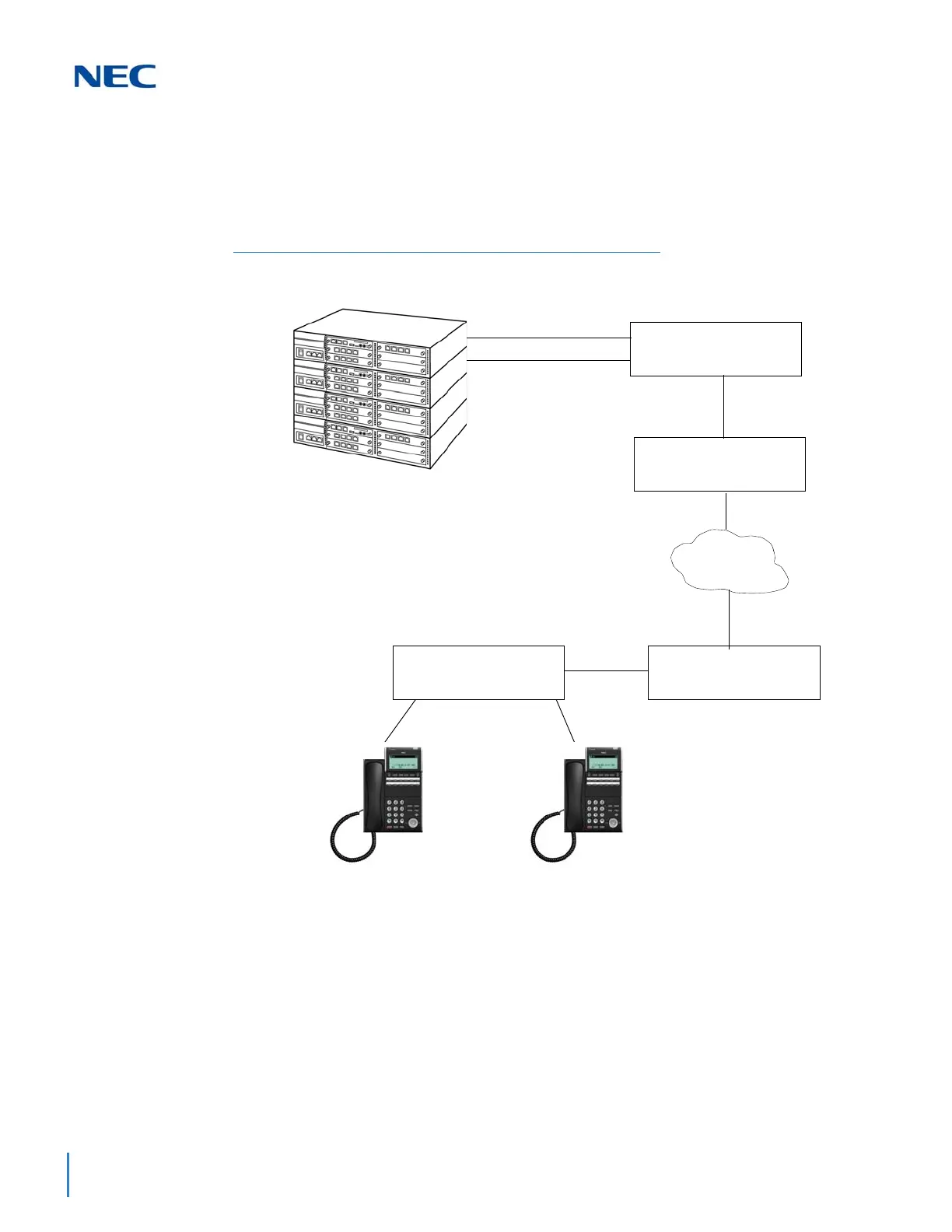

Figure 8-7 Example Configuration 3 - Static IP Addressing, Routed WAN

GCD-CP10

VoIP

Switch

IP Phone 1

192.168.2.200

IP Phone 2

192.168.2.201

GCD-CP10: 192.168.1.20

VoIP DSP: 192.168.1.21

Subnet Mask: 255.255.255.0

Default Gateway: 192.168.1.254

Router VPN

192.168.1.254

Switch

WAN

(Leased Line, Frame

Relay, etc.)

Router VPN

192.168.2.254

Default Chapter3
