2-4 IP Networking
4.2 UNIVERGE SV9100 IP K-CCIS Programming Example 1
This is an example of UNIVERGE SV9100 program data assignments for a 4-digit
Closed Numbering Plan using Closed Number Blocks. The following system
configurations are used for all four systems:
 Each system is a single cabinet expanded port package with one CHS2U-xx.
 Each system has 16 multiline terminals.
 Each system has eight analog Trunks.

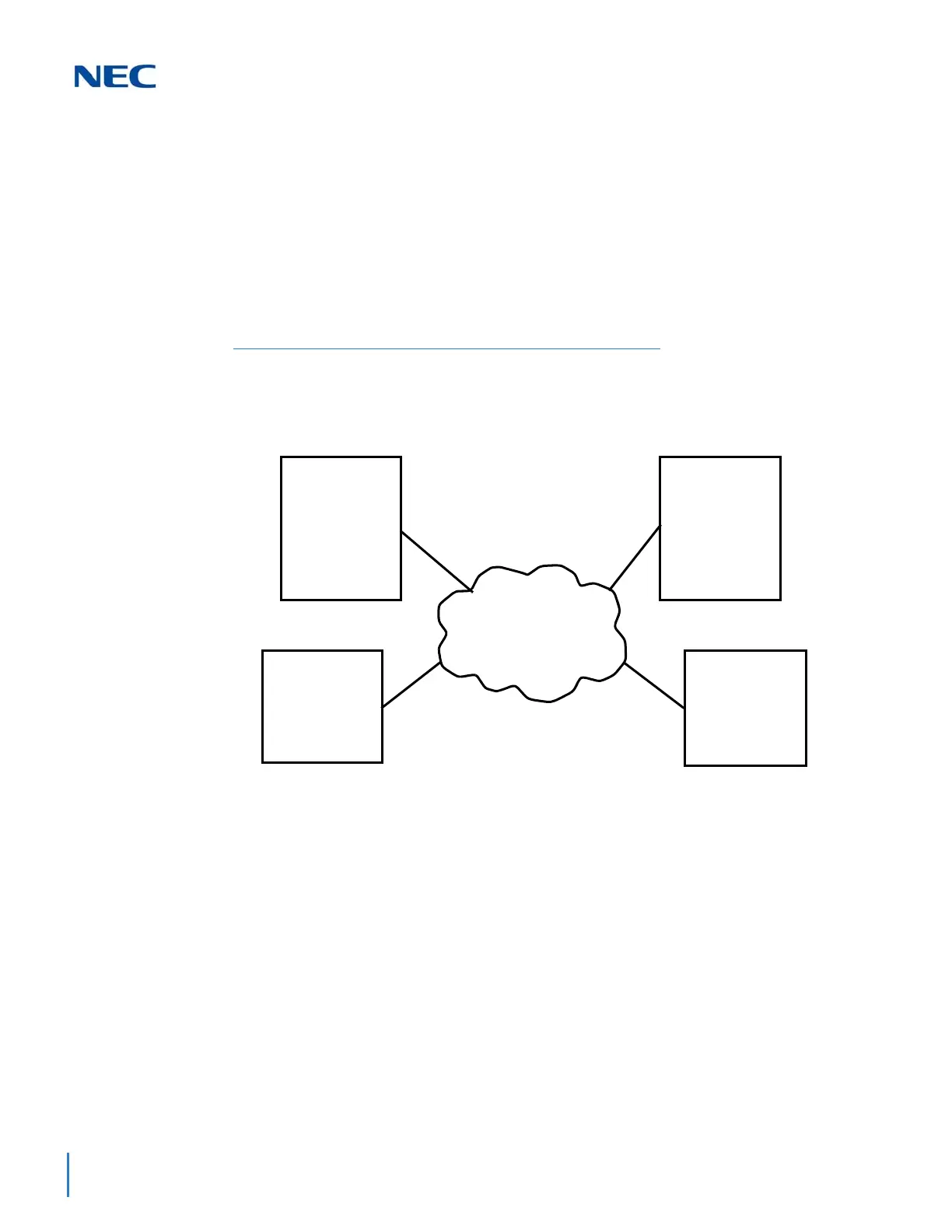

Figure 2-2 Programming Example 1
UNIVERGE
SV9100
System A
(1000)
UNIVERGE
SV9100
System B
(1100)
NEAX
System D
(1300)
NEAX
System C
(1200)
Point Code: 00002
Address: 1st GCD-CP10 Resource: 192.168.1.20
IP Network
(Intranet)
Point Code: 00004
Address: 192.168.1.40
Point Code: 00003
Address: 192.168.1.30
Point Code: 00001
Address: GCD-CP10: 192.168.1.10
 Systems C and D are NEAX systems. Refer to the applicable system
manuals for programming details.

NEC Univerge SV9100 Specifications

General

VoIP Support	Yes
VoIP Protocols	SIP, H.323
Voicemail	Integrated voicemail
Networking	Yes, via IP
Unified Communications	Yes
Mobility	Supports mobile extensions and applications
Type	IP-PBX
Network Interfaces	Gigabit Ethernet
Power Supply	AC 100-240V, 50/60Hz
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Weight	Varies depending on chassis and expansion cards
