5-16 Network Design Considerations

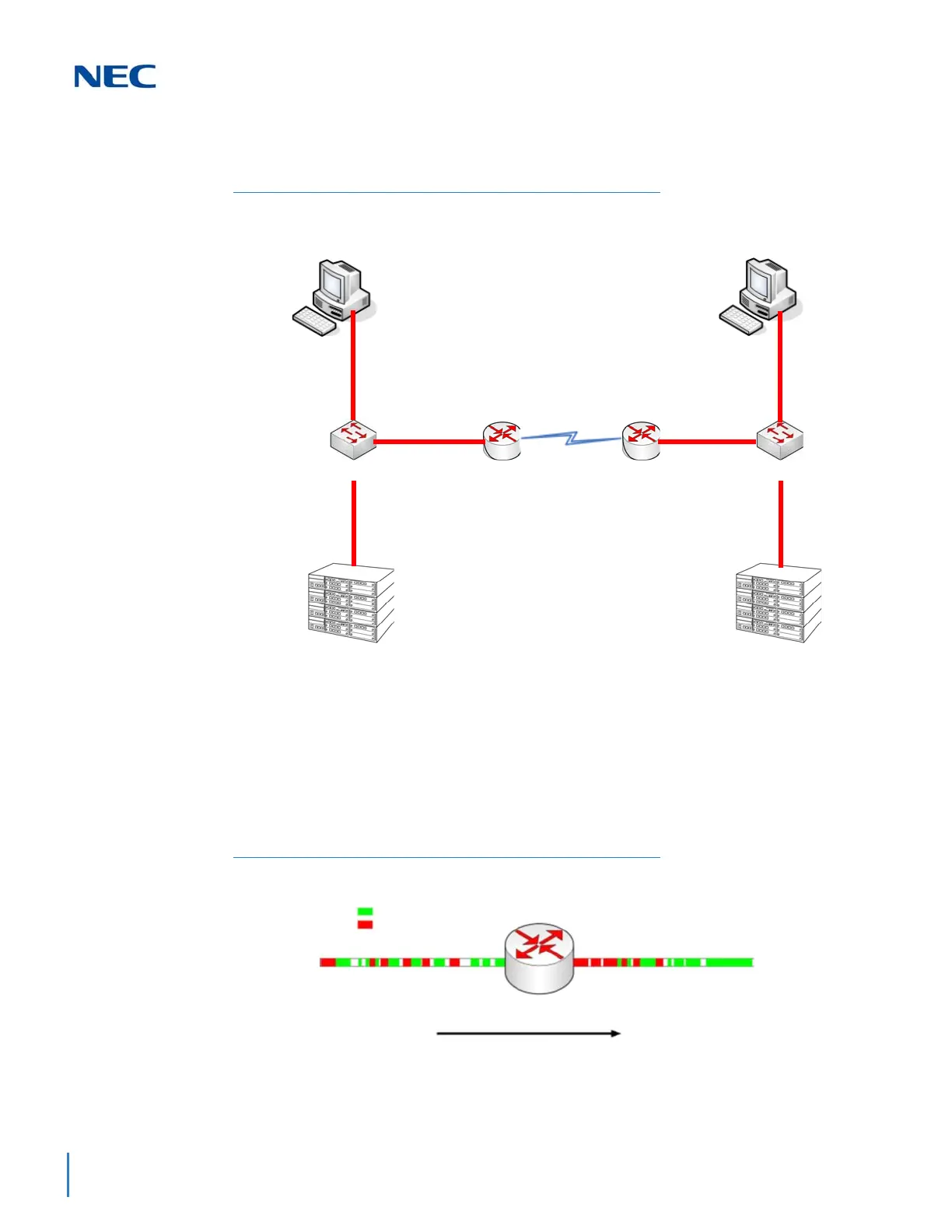

Figure 5-4 Voice and Data Network Implementation shows how a voice and data
network can be implemented.
After the router is configured for QoS, it examines incoming packets and allocates a
priority to the packet. Figure 5-5 Priority Queuing on Voice and Data Networks
shows the affect priority queuing has on voice and data networks. The packets arrive
randomly. They are processed and output according to the QoS policy. The VoIP
traffic is output first.
Figure 5-4 Voice and Data Network Implementation
Figure 5-5 Priority Queuing on Voice and Data Networks
256Kbps
Private Circuit
(Leased Line)
Managed Switch Router
Host A
Router Managed Switch
Host B
100Mbps100Mbps
100Mbps 100Mbps
100Mbps
100Mbps
Telephone
System A
Telephone
System B
Packet from VoIP Device
Packet from PC
Ethernet (100Mbps) Leased Line (256Kbps)
Direction of IP Traffic
Router with QoS
Policy Applied

NEC Univerge SV9100 Specifications

General

VoIP Support	Yes
VoIP Protocols	SIP, H.323
Voicemail	Integrated voicemail
Networking	Yes, via IP
Unified Communications	Yes
Mobility	Supports mobile extensions and applications
Type	IP-PBX
Network Interfaces	Gigabit Ethernet
Power Supply	AC 100-240V, 50/60Hz
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Weight	Varies depending on chassis and expansion cards
