Issue 2.0

8-64 IP Multiline Station (SIP)

After one port in a block of two is used by a VoIP station, the

remaining port can be used only for another VoIP Extension.

4. This step is optional.

To enable Key data and other station feature programming (before IP

Phone is brought online) the extensions must be identified as IP

Phones. Once checked in the IP Phone List in PCPro, the extensions

are available for selection in Program 15 and other station related

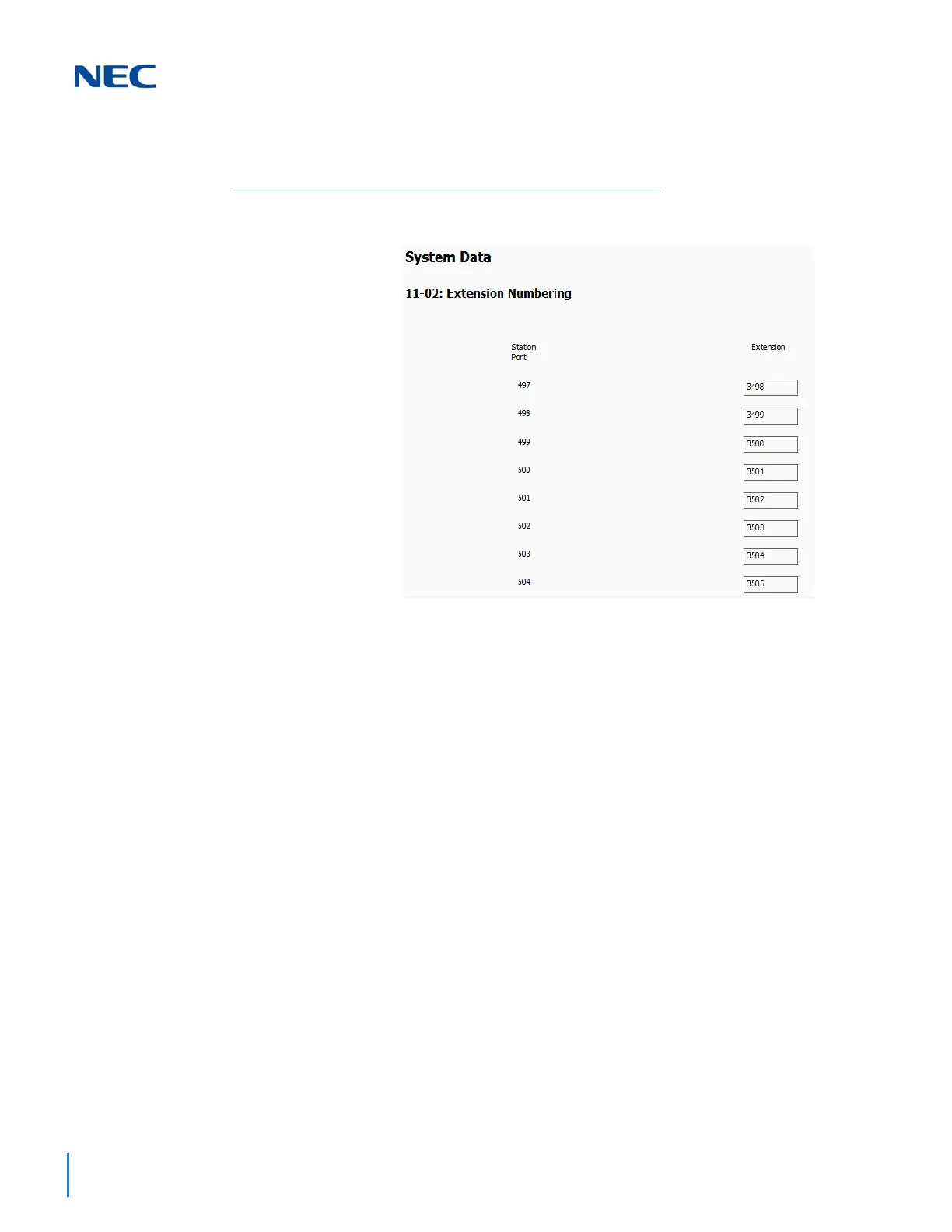

Figure 8-36 System Data 11-02: Extension Numbering
