Issue 2.0

SV9100 Networking Manual 2-7

3.4 Connectors

Table 2-5 GCD-CCTA RJ-45 Cable Connector Pin-Outs shows the pin-outs for the

RJ-45 connector. Refer to Figure 2-2 GCD-CCTA Blade on page 2-5 for an

illustration showing the location of the connectors on the GCD-CCTA blade.

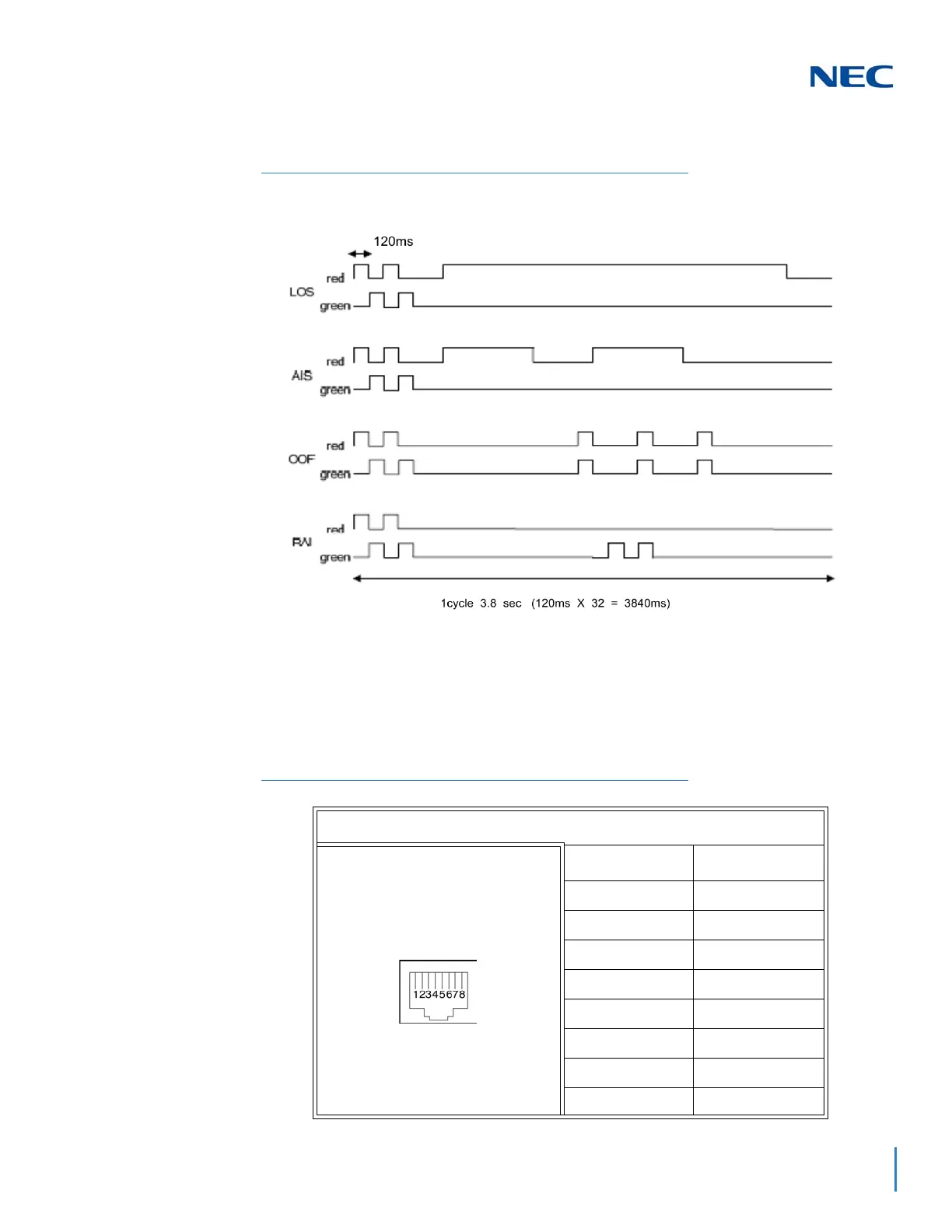

Figure 2-3 GCD-CCTA LED Indication Pattern of Layer 1 on T1 Unit

Table 2-5 GCD-CCTA RJ-45 Cable Connector Pin-Outs

RJ-45 Cable Connector – CN2

Pin No. Connection

1RA

2RB

3—

4TA

5TB

6—

7—

8—
