One GCD-CCTA can be assigned to one Common Signaling Channel. Tandem
K-CCIS connections require one GCD-CCTA for every connection as shown in
Figure 1-11 One GCD-CCTA Assigned per Common Signaling Channel.
Common Signaling Channels cannot be connected to another GCD-CCTA. They
must be assigned to their own physical link.
3.3 Determining the Type of Transmission Lines
The transmission lines, available on the UNIVERGE SV9100 system, are digital
only
(GCD-CCTA).

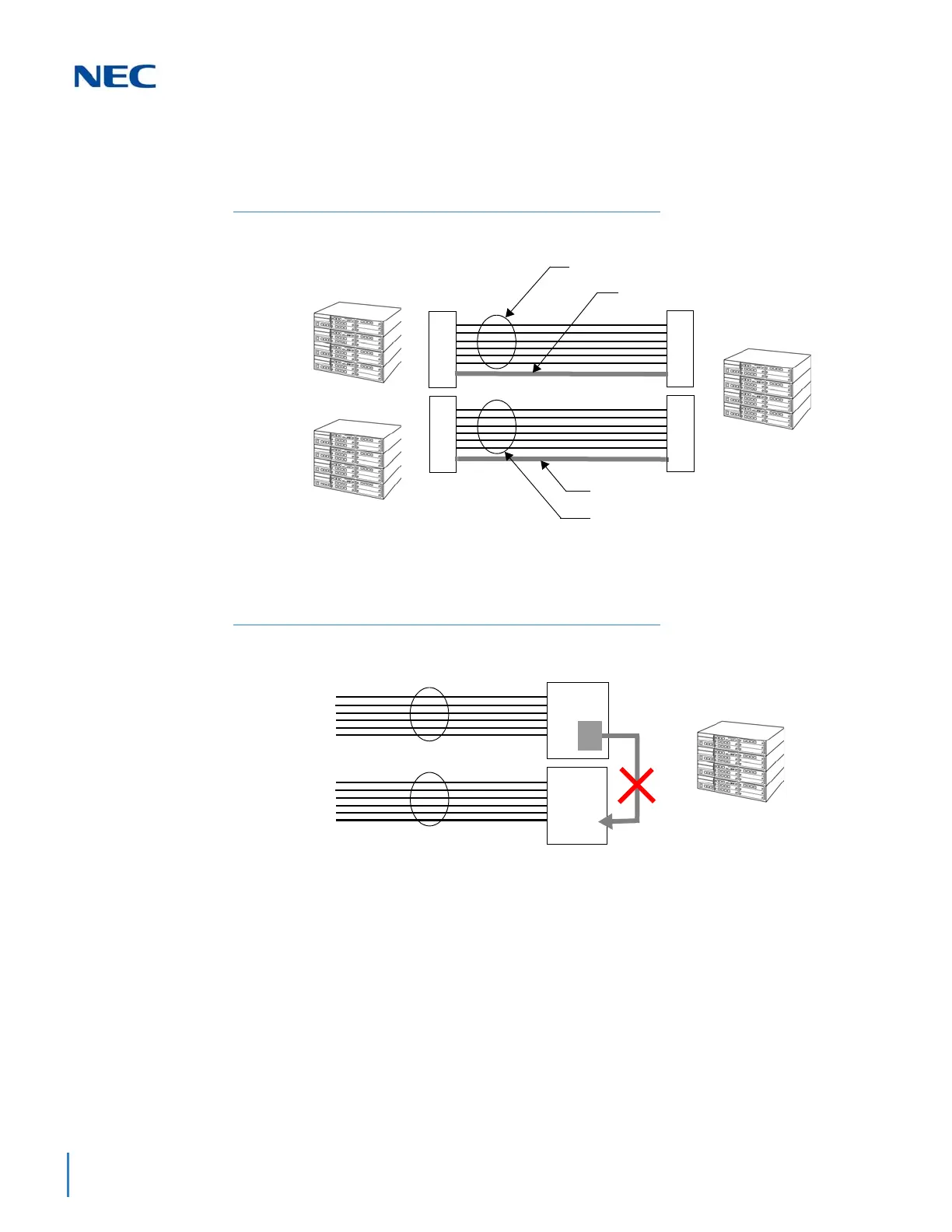

Figure 1-11 One GCD-CCTA Assigned per Common Signaling Channel
Figure 1-12 Common Signaling Channel - Example of Incorrect Connection
GCD-CCTA
GCD-CCTA
GCD-CCTA
GCD-CCTA
UNIVERGE SV9100
UNIVERGE SV9100
One Common Signaling Channel
23 Voice Channels
23 Voice Channels
UNIVERGE SV9100
One Common Signaling Channel
GCD-CCTA
GCD-CCTA
UNIVERGE SV9100
Common Signaling Channels cannot be connected to another GCD-CCTA.
