Issue 2.0

SV9100 Networking Manual 1-3

Figure 1-3 K-CCIS System Configuration shows the system configuration of

K-CCIS provided using a digital network.

SECTION 2 DTI SPECIFICATIONS

The following specifications apply to the GCD-CCTA.

2.1 Characteristics

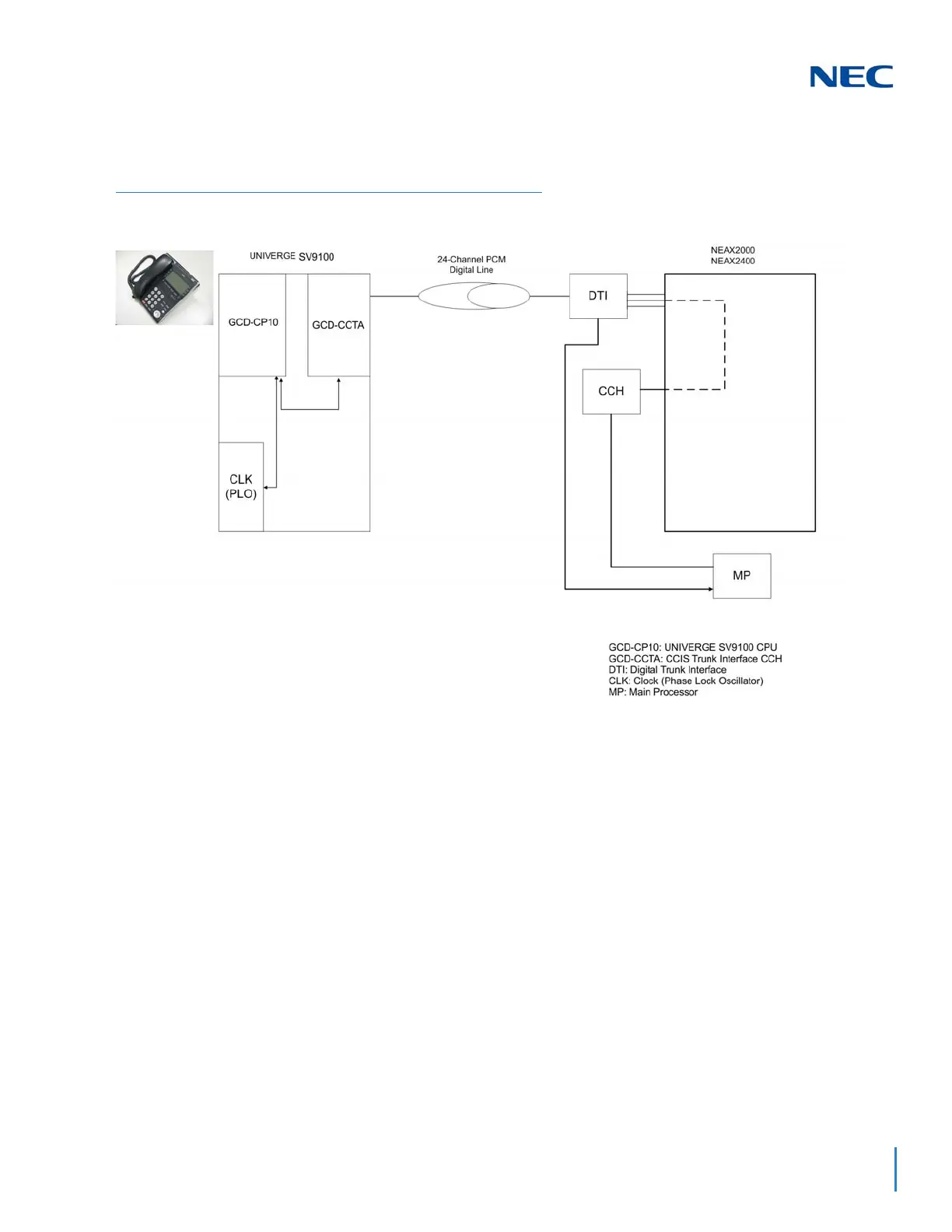

Figure 1-3 K-CCIS System Configuration

Output

Line Rate 1.544 Mbps + 50 ppm

Line Code

AMI with ZCS/B8ZS



Line Impedance

100



Pulse Amplitude (Base to Peak)

3 volts

± 0.6 volts

Pulse Width

3214 ns

± 30 ns
