NEC Univerge SV9100 User Manual

Issue 2.0
5-38 SV9100 IP K-CCIS
3.2 UNIVERGE SV9100 IP K-CCIS and Electra Elite IPK II
Programming Example 2
The following example provides programming details for three systems connected
by the IP CCH for NEAX application and one system connected by legacy (T1)
K-CCIS.
3.2.1 Chassis Programming Assignments
For this example, the following system configurations are used:
 A four-digit Closed Numbering Plan using Closed Number Blocks is
used.
 System A is a single-cabinet Electra Elite IPK II Expanded port
package with one B64-U20 KSU, one DTI-U( ) ETU, and a CCH(4)-U(
) ETU.
 System B is a single-chassis UNIVERGE SV9100 with one CHS2U
and one GPZ-IPLE installed on the GCD-CP10 and one GCD-CCTA
blade installed.
 System C is a single-cabinet UNIVERGE SV9100 port package with
one CHS2U and GPZ-IPLE Daughter Board installed on the
GCD-CP10.

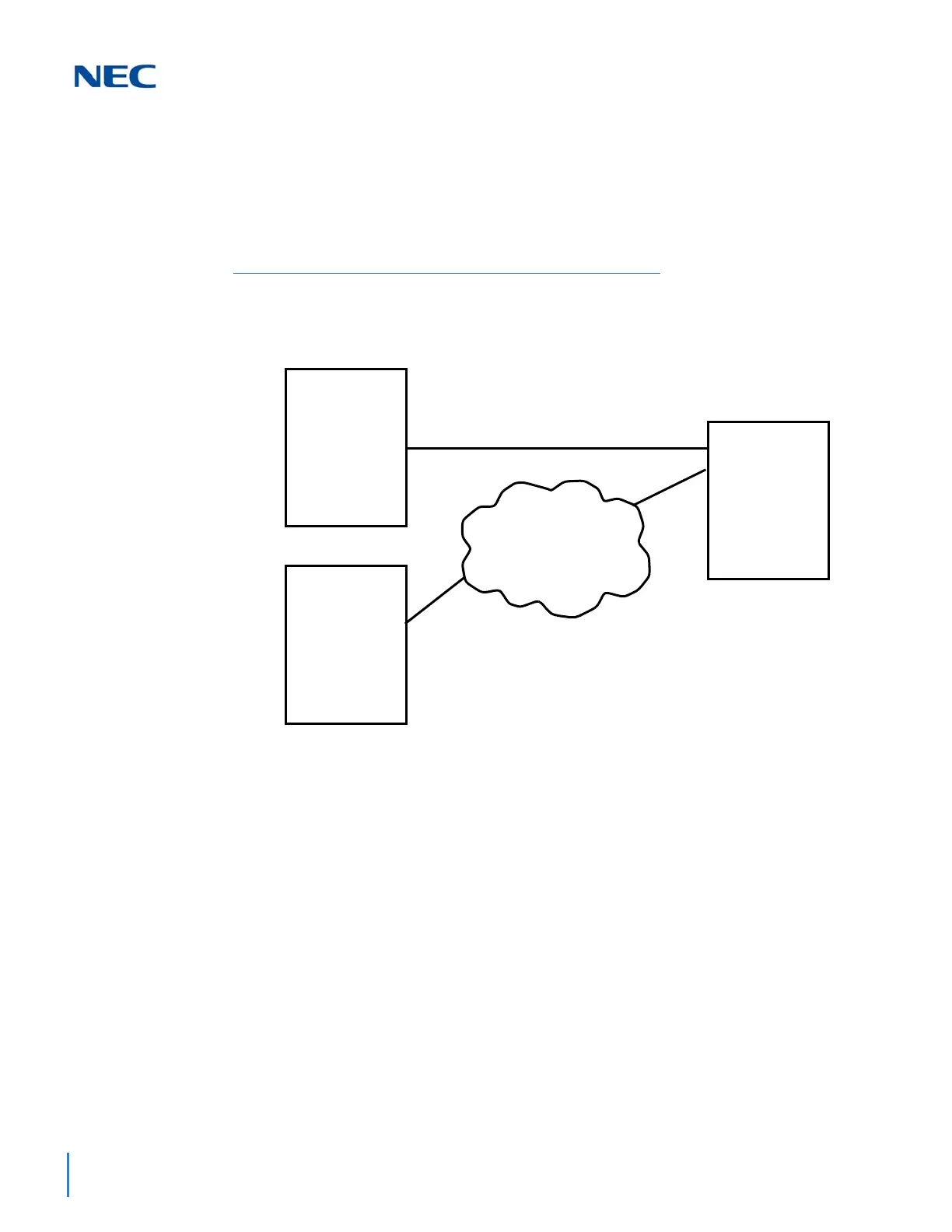

Figure 5-13 Programming Example 2
Electra Elite
IPK II
System A
(1000)
UNIVERGE
SV9100
System B
(1100)
UNIVERGE
SV9100
System C
(1200)
Point Code 00001
Point Code 00002
Address:
1st PVA: 192.168.1.10
2nd PVA: 192.168.1.11
IP Network
(Intranet)
T1 for K-CCIS
Point Code 00003
Address: 192.168.1.20

NEC Univerge SV9100 Specifications

General

VoIP Support	Yes
VoIP Protocols	SIP, H.323
Voicemail	Integrated voicemail
Networking	Yes, via IP
Unified Communications	Yes
Mobility	Supports mobile extensions and applications
Type	IP-PBX
Network Interfaces	Gigabit Ethernet
Power Supply	AC 100-240V, 50/60Hz
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Weight	Varies depending on chassis and expansion cards
