NEC Univerge SV9100 User Manual

Issue 2.0
SV9100 Networking Manual 3-7
1.6 Closed Number Programming Example
This section provides the steps needed to program a closed numbering plan.
Step 1: T1 Tie Lines

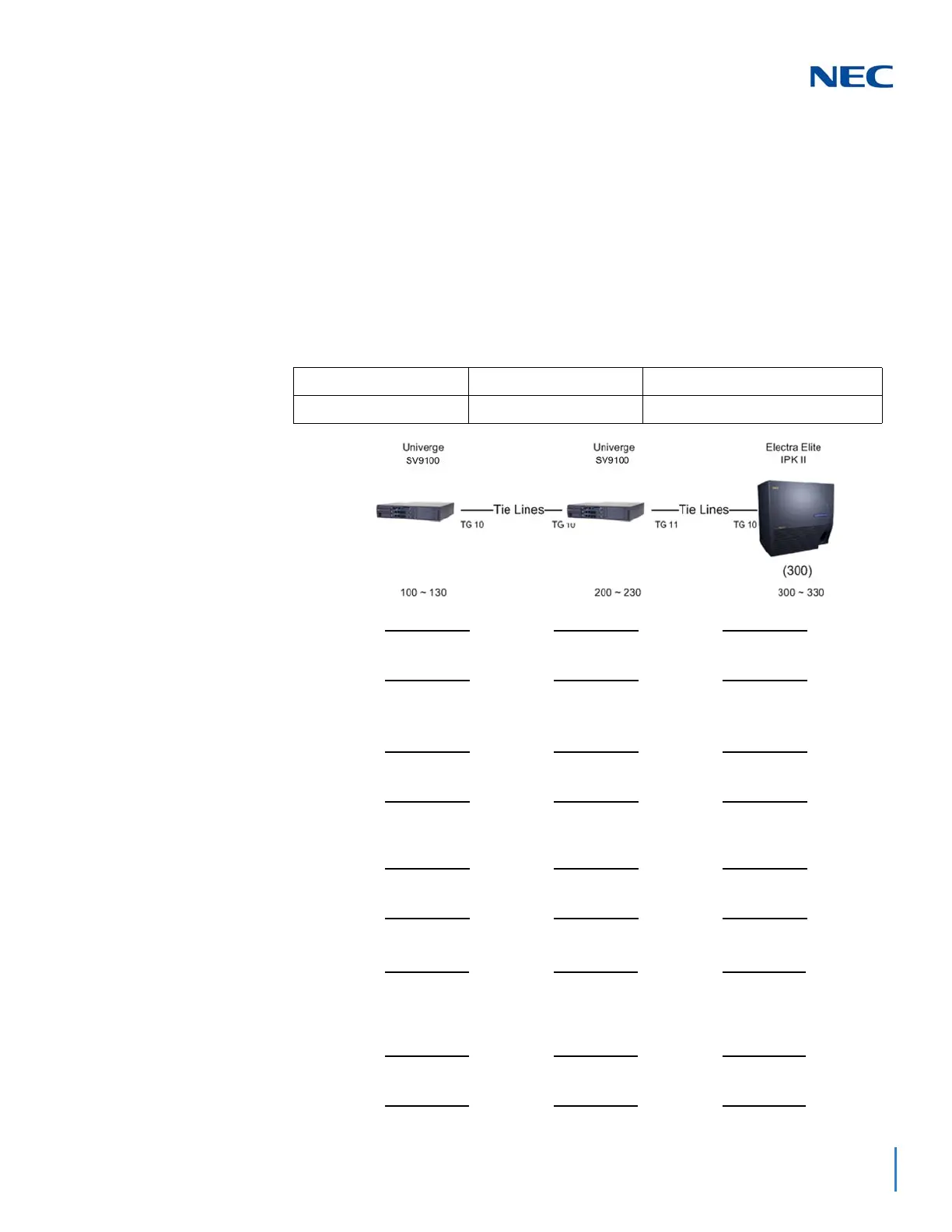

The following diagram is an example of Programs that should be assigned for T1
Tie lines. The example assumes that the
SV9100 system is defaulted with the
GCD-CCTA card installed.
Abbreviations used in the diagram:
MB = Memory Block TRK = Trunk TG = Trunk Group
CC = Clear Channel TT = Trunk Type
PRG 10-03-03 PRG 10-03-03 PRG 10-03-03
CC = B8ZS CC = B8ZS CC = B8ZS
PRG 10-03-05 PRG 10-03-05 PRG 10-03-05
Internal
External
Internal
External
PRG 22-02-01 PRG 22-02-01 PRG 22-02-01
TT = E&M TT = E&M TT = E&M
PRG 14-05-01 PRG 14-05-01 PRG 14-05-01
TRK 001~024 = TG 10 TRK 001~024 = TG 10
TRG 025~048 = TG 11
TRK 001~024 = TG 10
PRG 14-01-13 PRG 14-01-13 PRG 14-01-13
TRK 001~024 = Yes TRK 001~048 = Yes TRK 001~024 = Yes
PRG 34-01-01 PRG 34-01-01 PRG 34-01-01
TRK 001~024 = Wink TRK 001~048 = Wink TRK 001~024 = Wink
PRG 11-01-01 PRG 11-01-01 PRG 11-01-01
1X = 3 digit; Intercom
2X = 3 digit; F-Route
3X = 3 digit; F-Route
1X = 3 digit; F-Route
2X = 3 digit; Intercom
3X = 3 digit; F-Route
1X = 3 digit; F-Route
2X = 3 digit; F-Route
3X = 3 digit; Intercom
PRG 11-02-01 PRG 11-02-01 PRG 11-02-01
Extensions = 1XX Extensions = 2XX Extensions = 3XX
PRG 11-04-01 PRG 11-04-01 PRG 11-04-01
Unassign Virtuals = 2XX Unassign Virtuals = 2XX Unassign Virtuals = 2XX

NEC Univerge SV9100 Specifications

General

VoIP Support	Yes
VoIP Protocols	SIP, H.323
Voicemail	Integrated voicemail
Networking	Yes, via IP
Unified Communications	Yes
Mobility	Supports mobile extensions and applications
Type	IP-PBX
Network Interfaces	Gigabit Ethernet
Power Supply	AC 100-240V, 50/60Hz
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Weight	Varies depending on chassis and expansion cards
