Issue 2.0
8-10 IP Multiline Station (SIP)
8.3 Example Configuration 2 - Dynamic IP Addressing, One LAN
This example shows System IP Phones connected to a single LAN (no routers)
with dynamic IP Addresses. The DHCP server could be:
Customer supplied (e.g., Windows server)
inDHCP internal DHCP server
In this case, additional programming would be required. Refer to Chapter 3
General IP Configuration.
Programming - GCD-CP10:
10-12-01 : GCD-CP10 Network Setup - IP Address
(for GCD-CP10)
10-12-02 : GCD-CP10 Network Setup - Subnet M ask
10-12-03 : GCD-CP10 Network Setup - Default Gateway
10-12-09 : GCD-CP10 Network Setup - IP Address (
This
assignment is for
GCD-CP10 when the GPZ-IPLE daughter board
is installed.
)
0.0.0.0
255.255.255.0
192.168.1.254
192.168.1.20
Programming - GPZ-IPLE :
84-26-01 : IPL Basic Setup - IP Address (Slot # - DSP) 192.168.1.21
Programming - IP Phones:
DHCP Mode
IP Address
Subnet Mask
Default Gateway
1st Server Address
1st Server Port
Disabled
192.168.1.200
255.255.255.0
192.168.1.254
192.168.1.20
5080

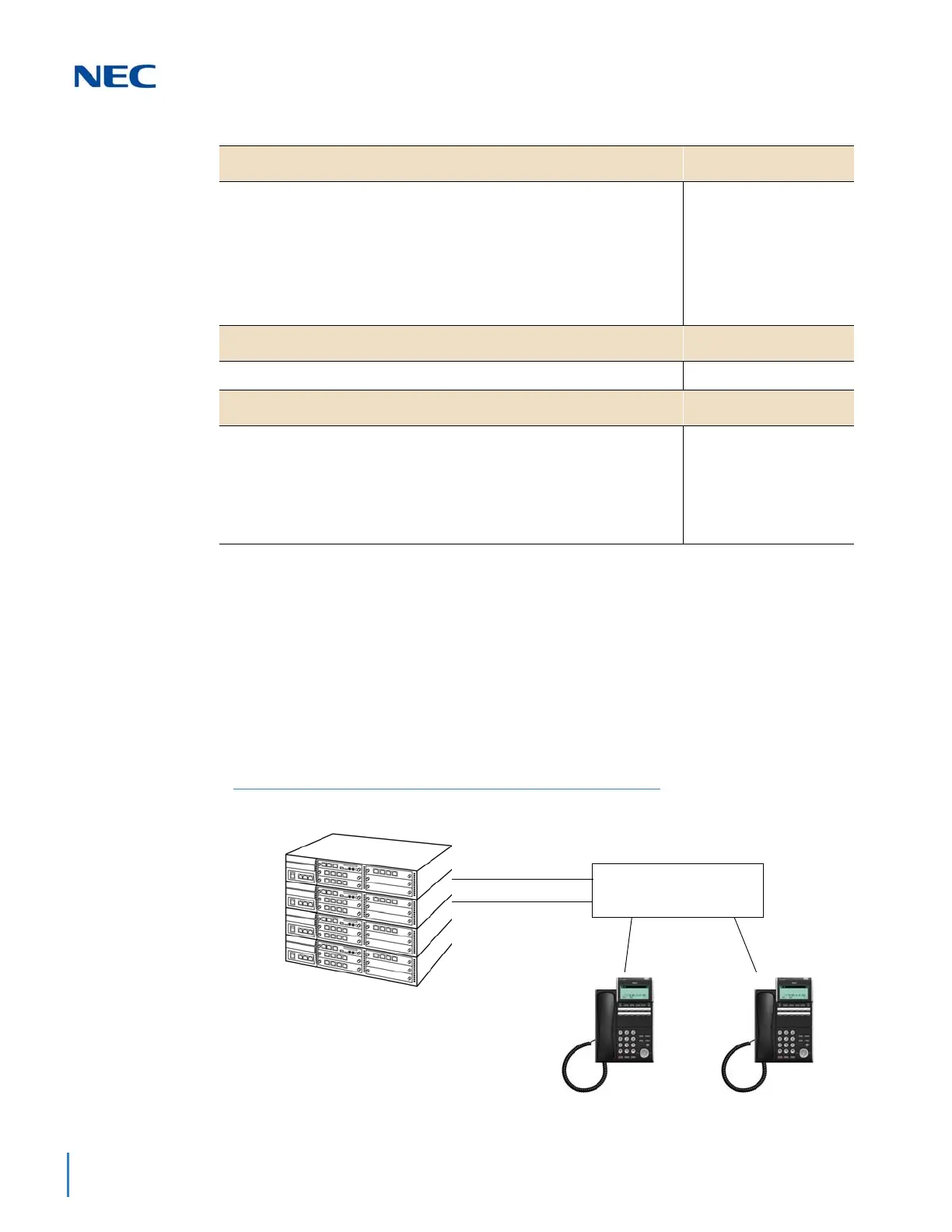

Figure 8-6 Example Configuration 2 - Dynamic IP Addressing, One LAN
GCD-CP10
VoIP
Switch
UNIVERGE SV9100
GCD-CP10 192.168.1.20
VoIP DSP: 192.168.1.21
Subnet Mask: 255.255.255.0
Default Gateway: 192.168.1.254
IP Phone 1
E t i 200
IP Phone 2
Et i 201
To Next Page
