8-16 IP Multiline Station (SIP)

3. Click Terminal.

4. Click 1st Server Address.

5. Assign the 1st Server Address using the IP address programmed in

command 10-12-09.

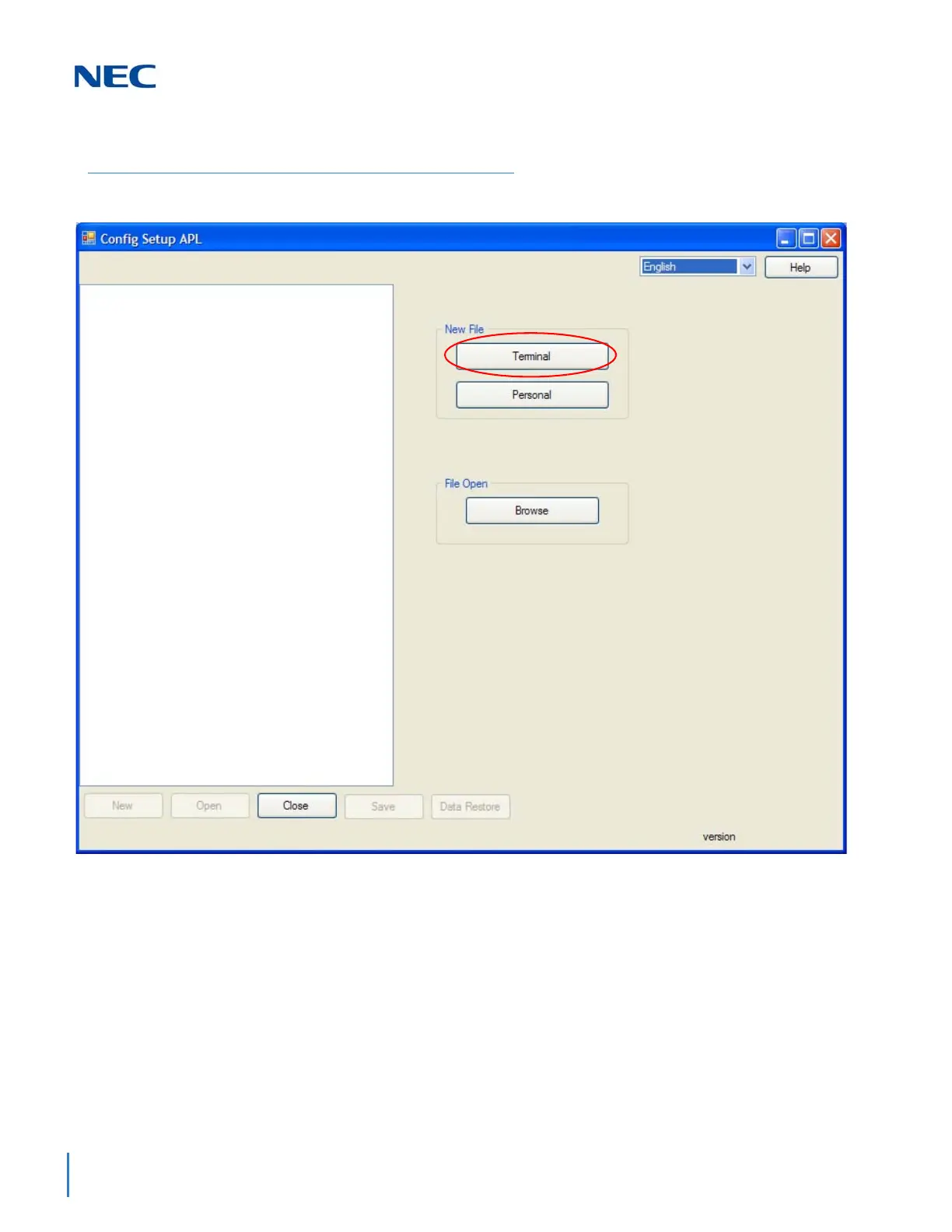

Figure 8-9 Config Setup APL
