One GCD-CCTA provides 24 channels. One Common Signaling Channel port

must be assigned on the Digital Trunk Interface in case two systems are

connected by one Digital Link.

One Common Signaling Channel can be assigned even if two Digital Links are

connected between two systems. Only one Common Signaling Channel can be

assigned per GCD-CCTA in each system.

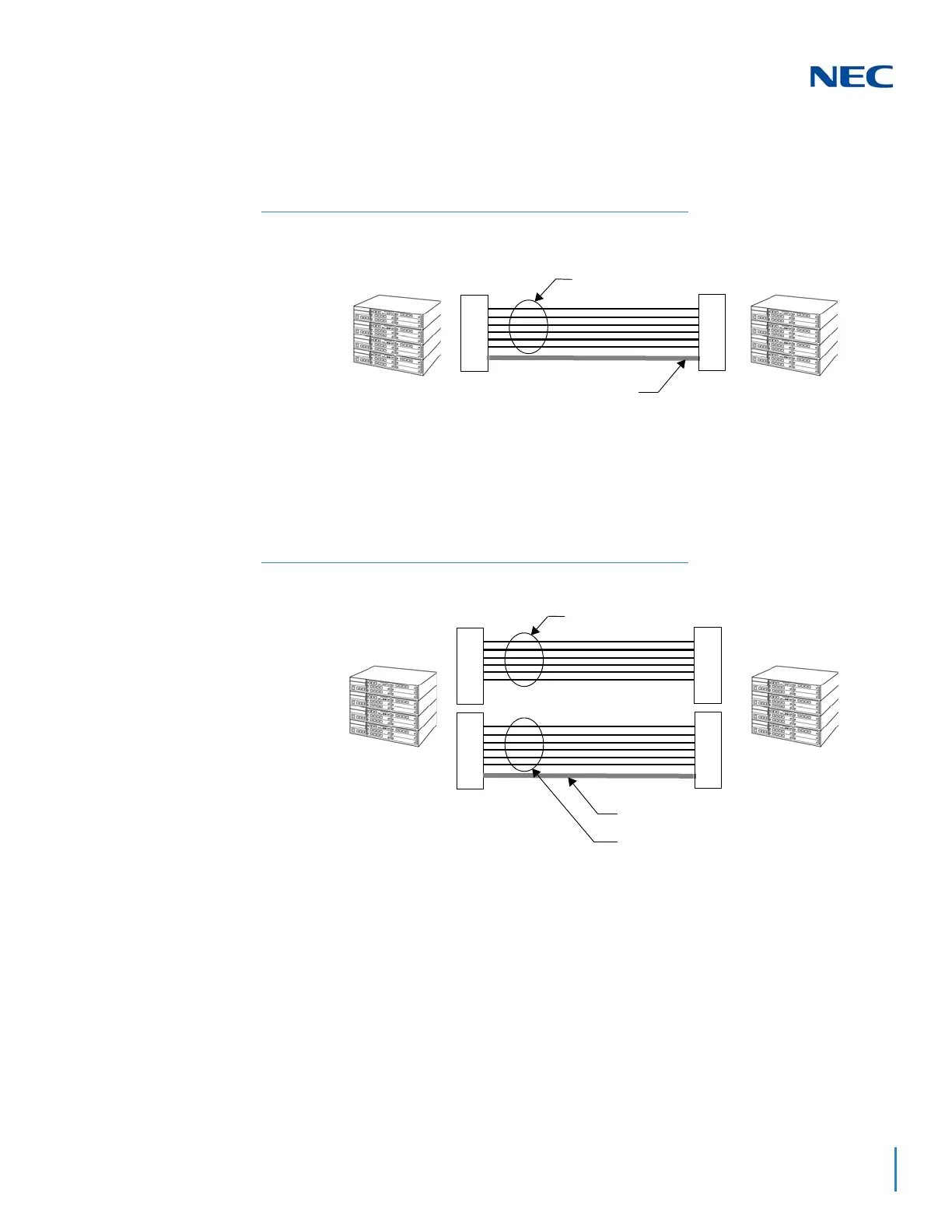

Figure 1-9 K-CCIS Routes

Figure 1-10 Assigning One Common Signaling Channel Between Two Systems

GCD-CCTA

System A has one GCD-CCTA.

UNIVERGE SV9100

One Common Signaling Channel

23 Voice Channels

UNIVERGE SV9100

GCD-CCTA

UNIVERGE SV9100 UNIVERGE SV9100

One Common Signaling Channel

24 Voice Channels

23 Voice Channels
