Issue 2.0
13-164 AspireNet
SECTION 5 ASPIRENET EXAMPLE
The examples in this section are only a guide to the configuration required on the SV9100 to install AspireNet
Operation.
5.1 AspireNet - ISDN BRI
AspireNet Basic Rate ISDN is supported on all BRI PCB’s (2, 4 or 8 BRIU). Each circuit of the BRIU PCB
can be set independently to Trunk / S0 / AspireNet mode.
Each circuit set as AspireNet mode will require 2 of the AspireNet ports on the system, there are a total of
256 AspireNet ports available.

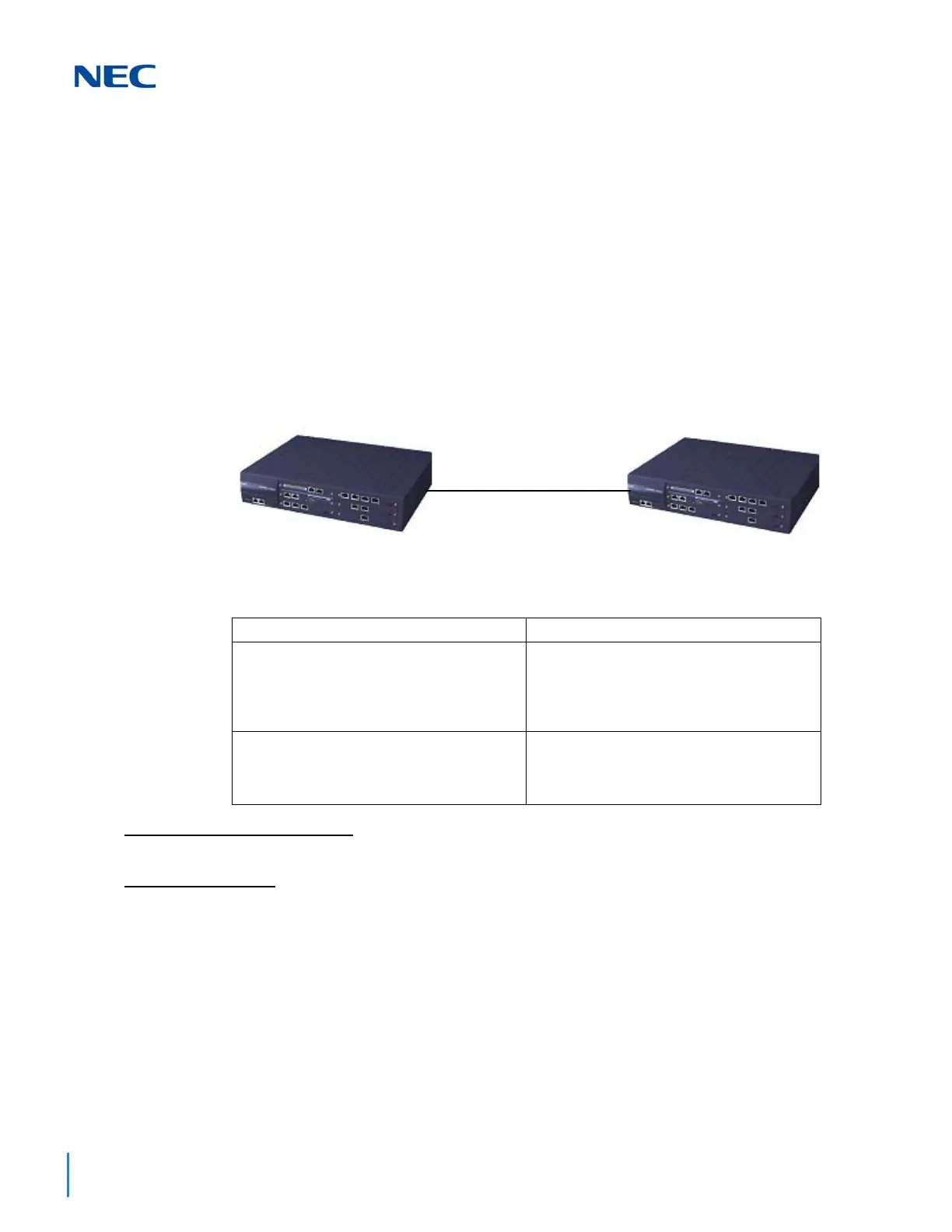

The example below shows two SV9100 systems, each has a BRIU card installed with one circuit set to
Mode 4 for AspireNet . The two BRIU circuits are cross connected via a 2-pair twisted cable.
SV9100 A has extension numbers in the range 200-299, SV9100 B has 300-399.
More than one circuit required.
If more BRI circuits were added then Program 10-03-xx would copied for each new circuit.
Master/Slave setting
The choice of Master/Slave of each circuit is not important in the example above as there is no ISDN Net-
work connection to either of the systems.
If System A had an ISDN Network connection (BRI trunk or PRI trunk) then System A would be the Master
for AspireNet circuits.
If both system A and System B have an ISDN Network connection then the setting of Master/Slave is not
important.
When the AspireNet BRI circuit is connected to external equipment then ensure that the equipment is set
to Master (Clock generator) or Slave (Clock receiver) accordingly.
SV9100 A SV9100 B
Program 10-03 BRI PCB Setup
10-03-01 = Mode 4
10-03-03 = P-P
10-03-10 = Master
10-03-11 = 1
Program 10-03 BRI PCB Setup
10-03-01 = Mode 4
10-03-03 = P-P
10-03-10 = Slave
10-03-11 = 1
Program 11-01-01 System Numbering
Dial 2x = 3 digit, Type 2 (Intercom)
Dial 3x = 3 digit, Type 8 (Networking),
ID=1
Program 11-01-01 System Numbering
Dial 2x = 3 digit, Type 8 (Networking),
ID=1
Dial 3x = 3 digit, Type 2 (Intercom)
SV9100 A
SV9100 B
2-pair twisted cable
