NEC Univerge SV9100 User Manual

Issue 2.0
2-2 Hardware Installation <US Only>
1.1 Busying Out Extension/Line Blades
The extension/trunk blades may "busy-out" idle circuits. Extensions/lines cannot
make or receive calls during this condition. Calls in progress before the blade is
"made-busy" are not affected. The blade can be pulled out without interrupting a
call in progress.
An extension/line blade LED status:
 Normally flashes
 Lights steady when "made-busy" when an extension/line is in use
 Goes out when the all extensions/lines are "made-busy" (idle)
SECTION 2 INSTALLING AN EXTENSION OR TRUNK BLADE
2.1 Installing the Blades
To install an extension/trunk blade with the system running:
1. Insert the blade in the guide rail and push the blade securely into position.
Tighten the thumb screw on each side of the blade.
2. The Status LED starts flashing when the blade starts processing (15
seconds).

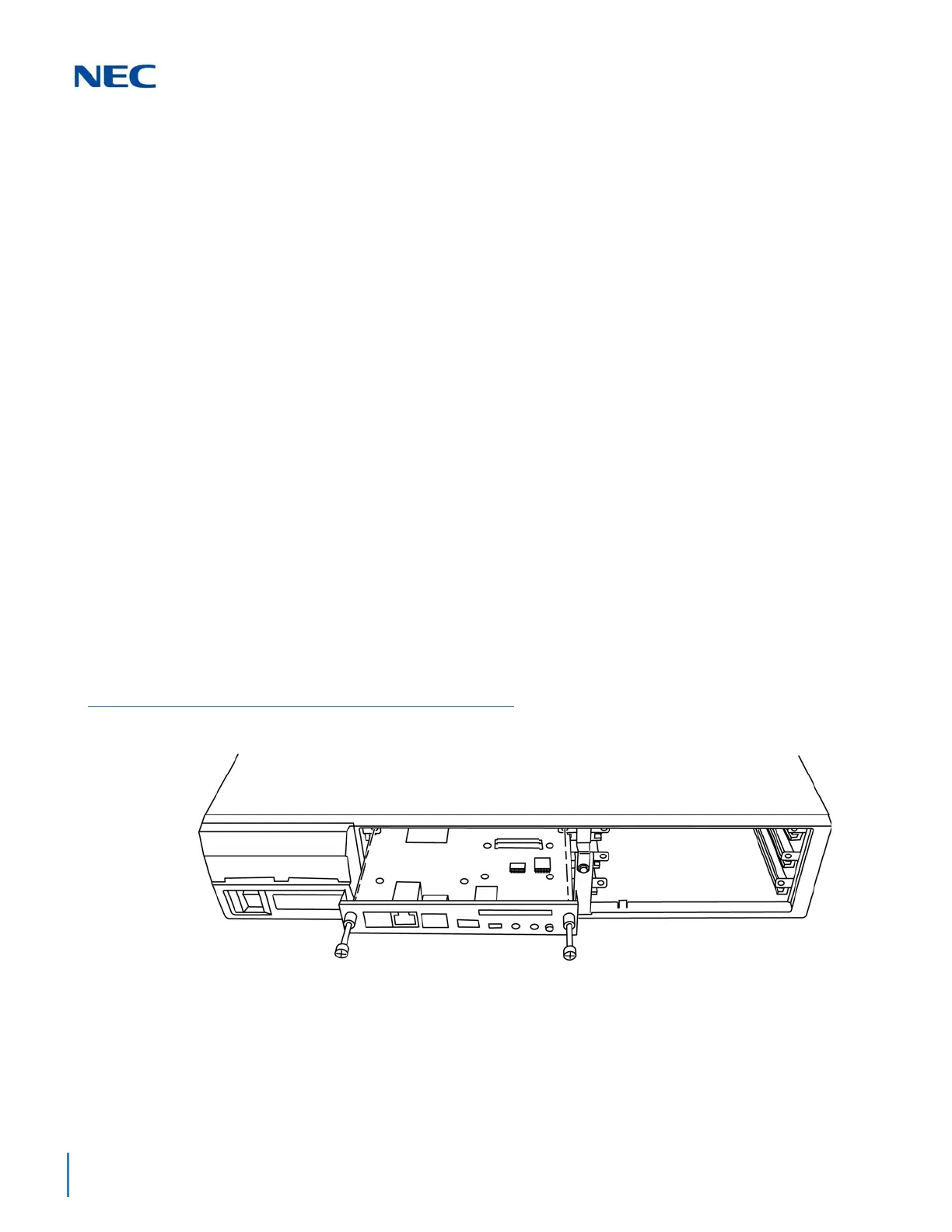

Figure 2-1 Inserting Blades in the 19” Chassis

NEC Univerge SV9100 Specifications

General

VoIP Support	Yes
VoIP Protocols	SIP, H.323
Voicemail	Integrated voicemail
Networking	Yes, via IP
Unified Communications	Yes
Mobility	Supports mobile extensions and applications
Type	IP-PBX
Network Interfaces	Gigabit Ethernet
Power Supply	AC 100-240V, 50/60Hz
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Weight	Varies depending on chassis and expansion cards
