Issue 2.0

SV9100 Networking Manual 5-9

1.5 IP Addressing

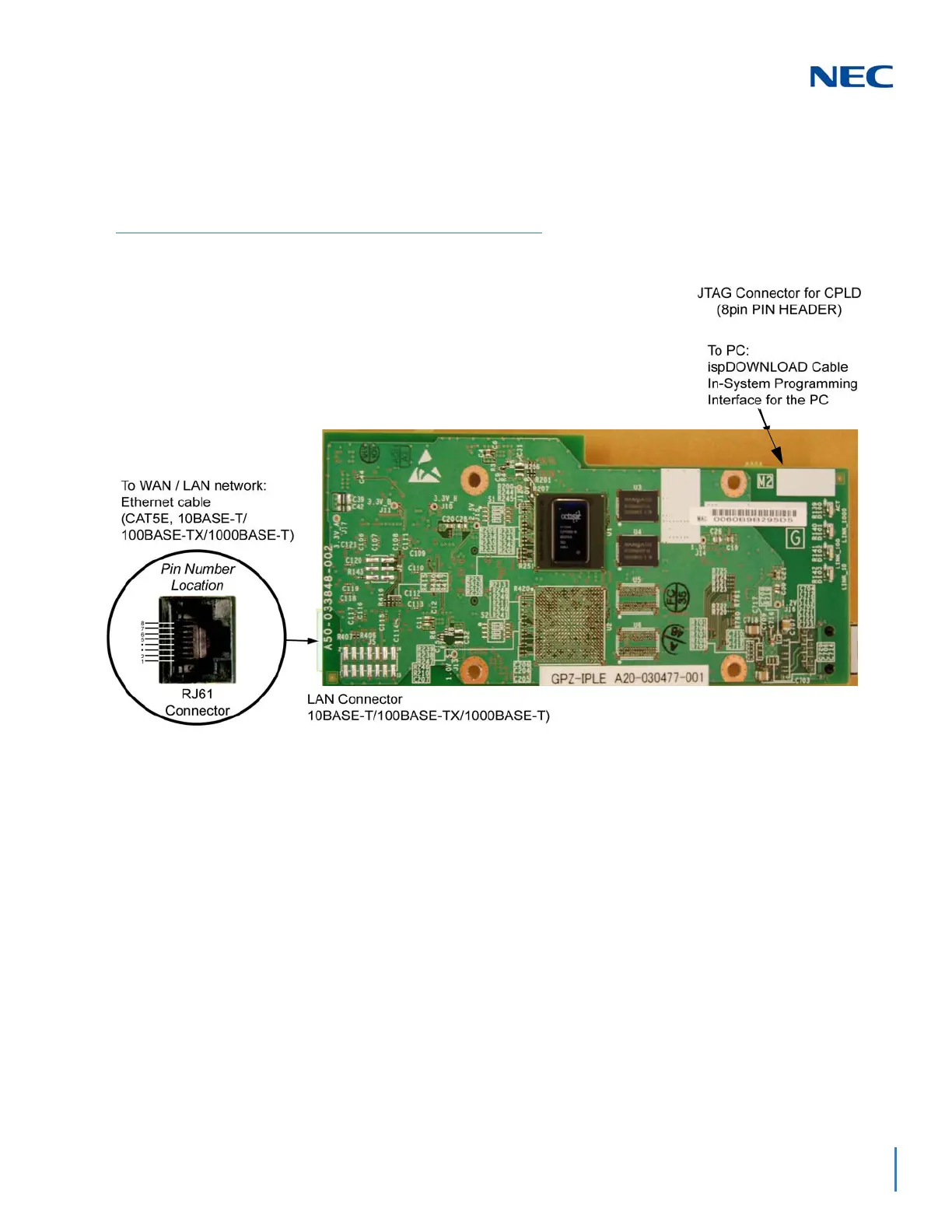

Figure 5-6 Connecting a VOIPDB to a Network/PC shows how the VOIPDB is

connected to a network or PC.

One valid IP address must be assigned for all the DSP's that are used in IPLE.

Figure 5-6 Connecting a VOIPDB to a Network/PC

(
