Chapter 19 Control Panel Setup (Panel)
1179
Interfacing With External Devices (Device Interface Menu)
3

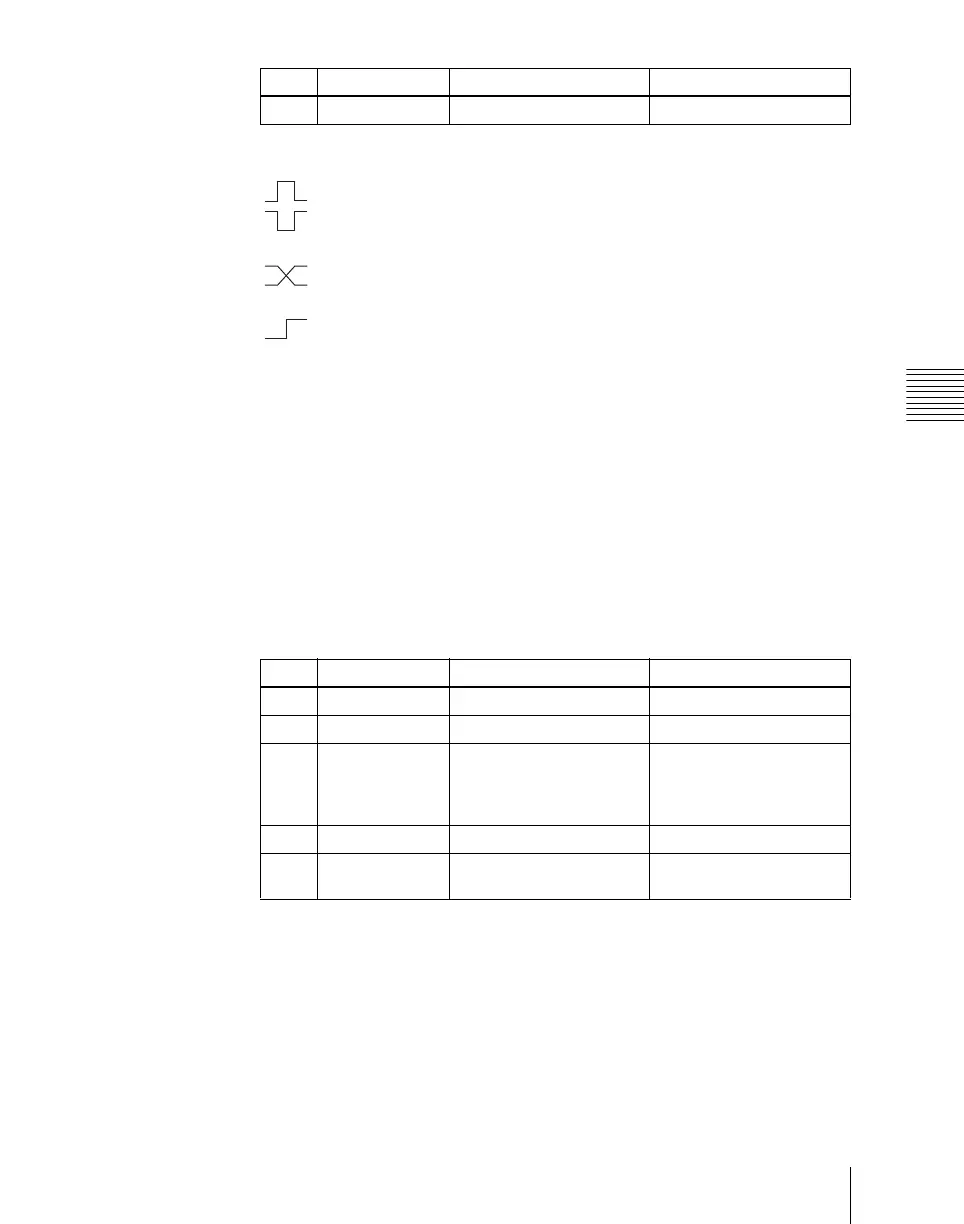

In the <Trigger Type> group, select the trigger type.
(Rising Edge): Apply the trigger on a rising edge of an input pulse.
(Falling Edge): Apply the trigger on a falling edge of an input
pulse.
(Any Edge): Apply the trigger on a change in the polarity of the
input signal.
(Level): Carry out the specified operation when the input is low or
high.
No Operation: Apply no trigger on an input pulse.
4
In the <Target> group, select the action block.
M/E-1, M/E-2, M/E-3, P/P: Set the action for one of the banks.
Common/Setup: Set an action for something other than the above, or a
setup action.
5
Using any of the following methods, select the action to be set.
• Press directly on the list in the status area.
• Press the arrow keys to scroll the reverse video cursor.
• Turn the knobs.
a) As for the setting values, see “Selectable actions for various trigger types” (page 1180).
b) When knob 2 selection is “Aux ? O’ride Src ??”
c) When knob 2 selection is “Key Snapshot”
d) When knob 2 selection is “Snapshot” or “Shotbox”
e) When knob 2 selection is “Macro”
f) When knob 2 selection is “Effect”
g) When knob 2 selection is “Prefs Button?”
6
Press [Action Set] to confirm the action selection.
Knob Parameter Adjustment Setting values
1 Port Port selection 1 to 8
Knob Parameter Adjustment Setting values
2 Action Action selection 1 and upwards
a)
4 Aux Bus No AUX bus selection 1 to 48
b)
5 Reg No Register number 1 to 4
c)
1 to 99
d)
1 to 250
e)
1 to 399
f)
5 Src No Source signal selection 1 and upwards
b)
5 No User preference button
selection
1 to 16
g)
To Next Page
