Chapter 4 Keys

270

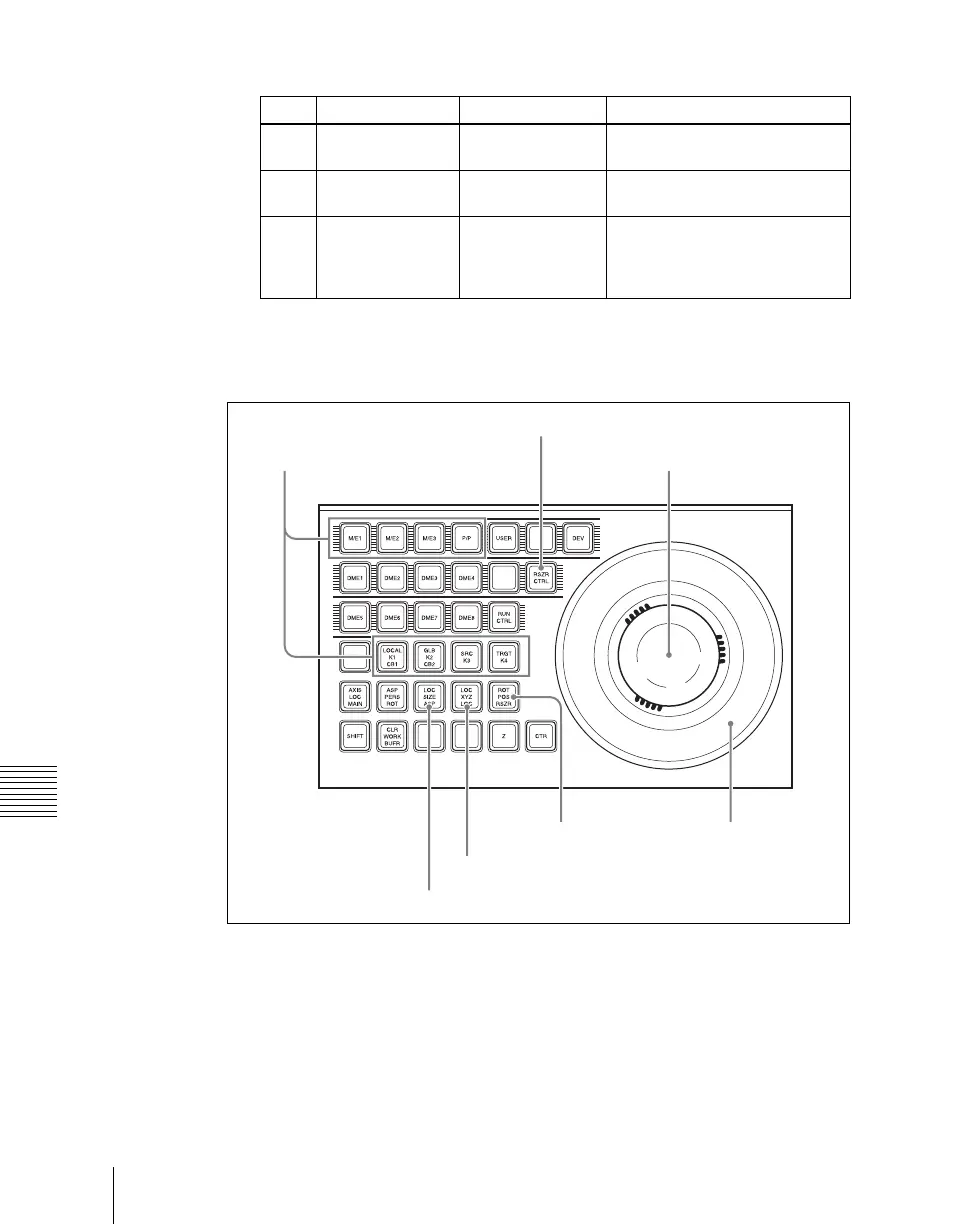

Resizer

Device control block operations for key shrinking, magnification

and movement

Press the [RSZR CTRL] button, turning it on.

Press the delegation button to select the key.

Press the [RSZR] button, turning it on.

• To change the aspect ratio, turn on the [LOC SIZE(ASP)].

Parameter group [2/2]

Knob Parameter Adjustment Setting values

1 X Change aspect

ratio horizontally

0.0 to 99

2 Y Change aspect

ratio vertically

0.0 to 99

3 R Change aspect

ratio horizontally

and vertically at a

time

0.0 to 2.0

Delegation buttons

RSZR CTRL button

Trackball

ASP button

LOC button

RSZR button

Z-ring
