Chapter 5 Wipes
306
Basic Procedure for Wipe Settings
2
In the <Rotation> group, select the rotation type.
Angle: Incline the pattern through a fixed angle.
Speed: Rotate at a fixed rate.
Magnitude: Rotate through a particular angle during the course of the
transition.
3
According to the selection in step 2, set the following parameters.
• When Angle is selected
• When Speed is selected
• When Magnitude is selected

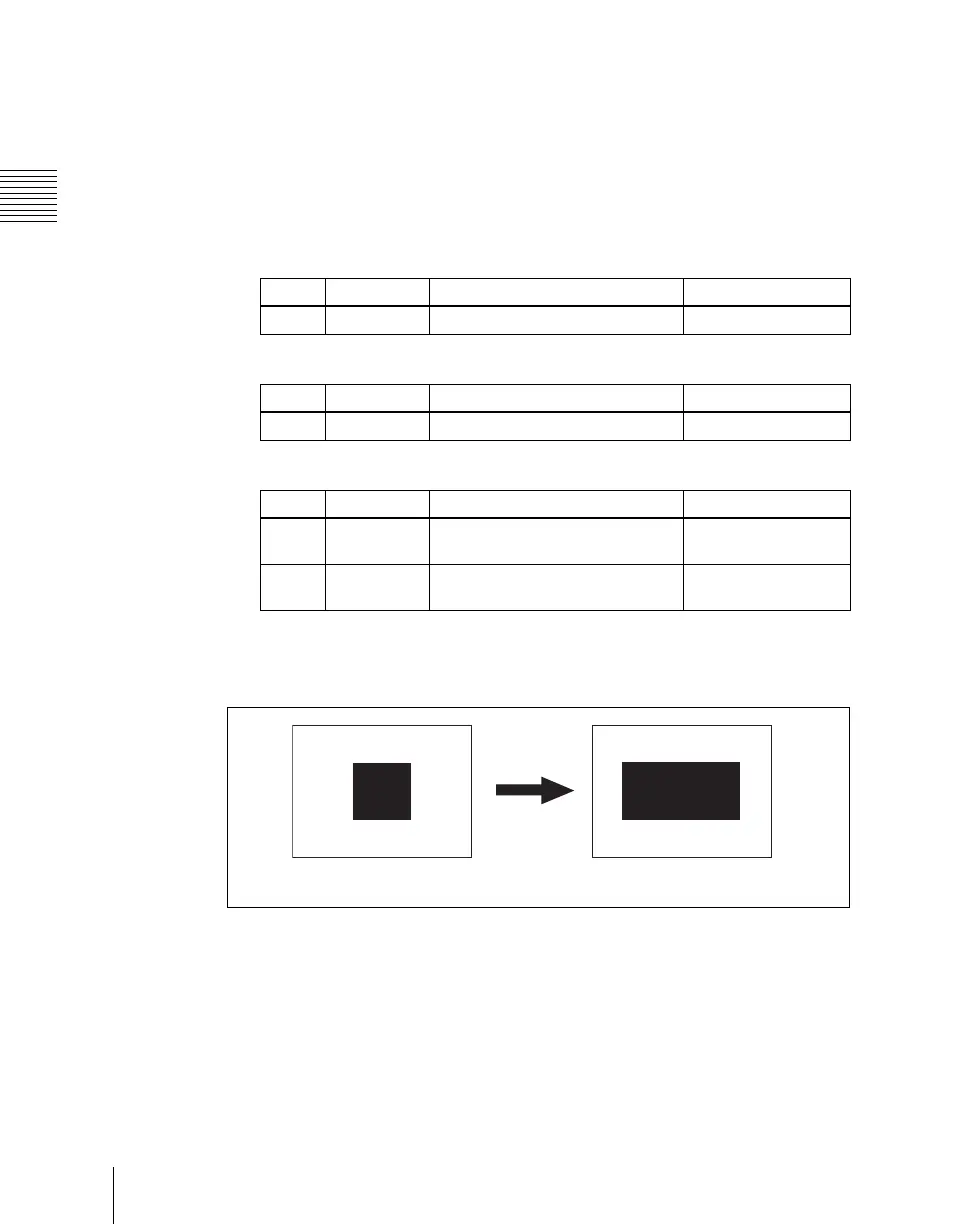

Setting the wipe pattern aspect ratio (Aspect ratio)
You can freely change the aspect ratio of the pattern.
A negative value of the parameter Aspect stretches the pattern vertically; a
positive value stretches the pattern horizontally.
You can set the aspect ratio independently for the main pattern and sub pattern.
1
In the M/E-1 >Wipe menu, select HF5 ‘Main Modify.’
The Main Modify menu appears.
Knob Parameter Adjustment Setting values
1 Angle Angle of pattern rotation –100.00 to +100.00
Knob Parameter Adjustment Setting values
1 Speed Rotation rate of pattern –100.00 to +100.00
Knob Parameter Adjustment Setting values
1 Angle Angle of pattern rotation at start of
transition
–100.00 to +100.00
2 Magnitude Angle of rotation through course
of transition
–200.00 to +200.00
Aspect off Aspect on
