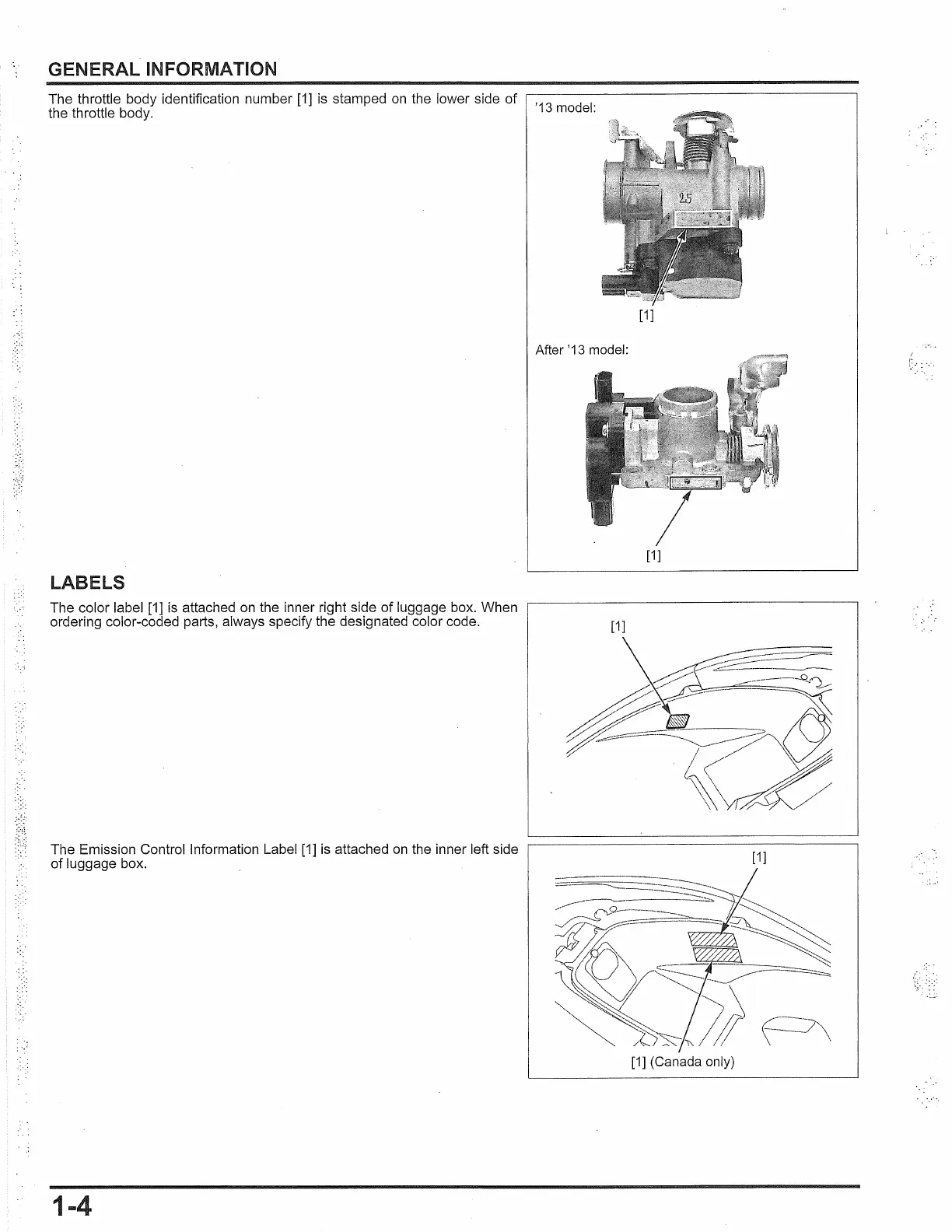

GENERAL INFORMATION
The throttle body identification number
[1]
is
stamped
on
the lower side
of
the throttle body.
LABELS
The color label
[1]
is
attached
on
the inner right side
of
luggage box. When
ordering color-coded parts, always specify the designated color code.
The Emission Control Information Label
[1]
is
attached
on
the inner left side
of
luggage box.
1-4
'13
model:
[1]
After
'13
model:
[1]
[1]
(Canada only)

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Honda PCX150 2016 and is the answer not in the manual?

Honda PCX150 2016 Specifications

General IconGeneral
Displacement153cc
Bore x Stroke58.0mm x 57.9mm
Compression Ratio10.6:1
Fuel SystemPGM-FI electronic fuel injection
TransmissionAutomatic V-Matic belt drive
Front Tire90/90-14
Rear Tire100/90-14
Wheelbase51.8 inches
Seat Height29.9 inches
Fuel Capacity2.1 gallons
IgnitionFull Transistorized
Front Suspension31mm telescopic fork
Rear SuspensionTwin shock
Front BrakeHydraulic disc
Rear BrakeDrum
Engine TypeLiquid-cooled, 4-stroke, SOHC
