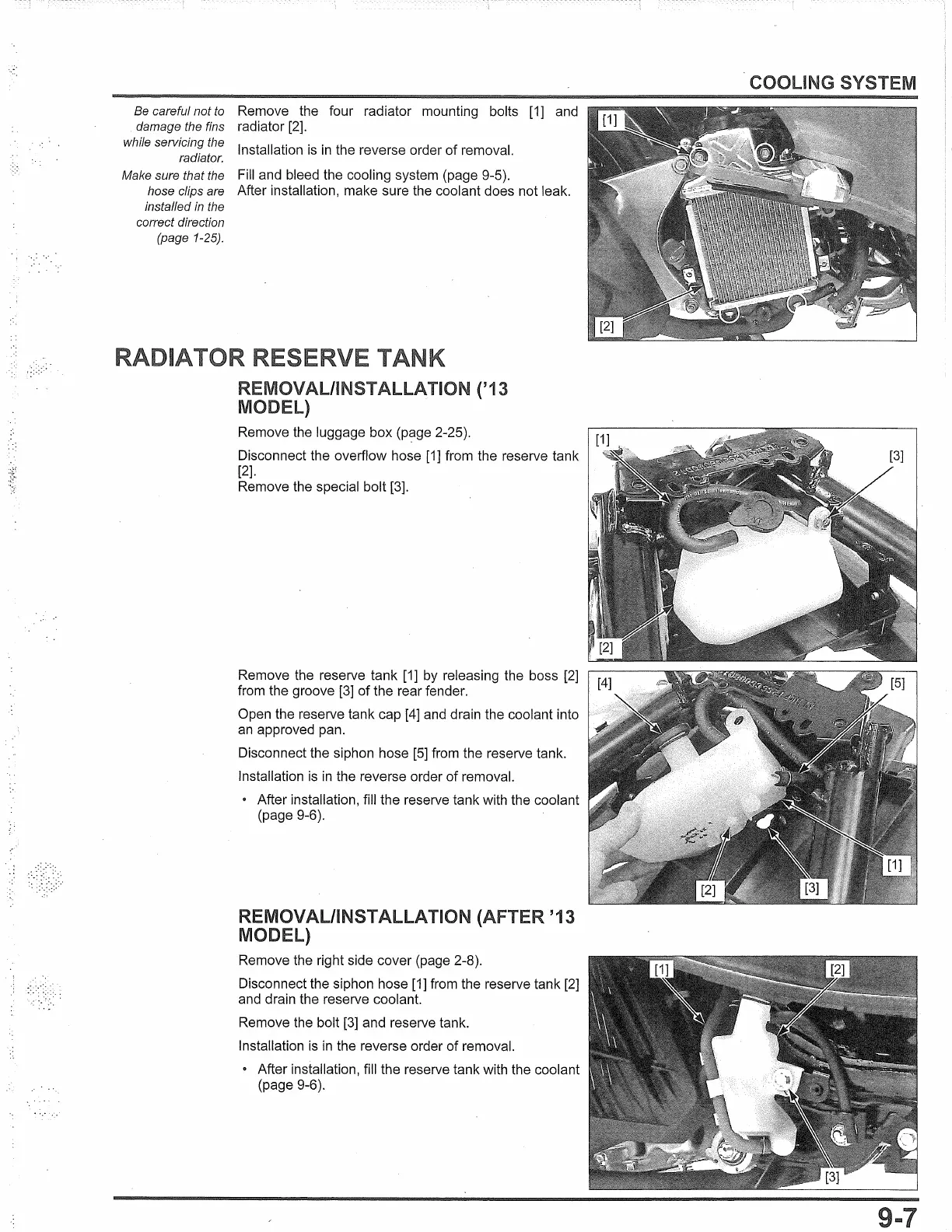

Be careful not to Remove the four radiator mounting bolts [1] and
damage the fins radiator [2].
while servicing the Installation is in the reverse order of removal.
radiator.
Make sure that the
Fill and bleed the cooling system (page 9-5).
hose clips are After installation, make sure the coolant does not leak.
installed in the
correct direction
(page 1-25).
REMOVAL/INSTALLATION ('13
MODEL)
Remove the luggage box (page 2-25).
Disconnect the overflow hose
[1] from the reserve tank
[2].
Remove the special bolt [3].
Remove the reserve tank [1] by releasing the boss
[2]
from the groove [3] of the rear fender.
Open the reserve tank cap [4] and drain the coolant into
an approved pan.
Disconnect the siphon hose
[5] from the reserve tank.
Installation is
in the reverse order of removal.
• After installation, fill the reserve tank with the coolant
(page 9-6).
REMOVAL/INSTALLATION (AFTER '13
MODEL)
Remove the right side cover (page 2-8).
Disconnect the siphon hose
[1] from the reserve tank [2]
and drain the reserve coolant.
Remove the bolt
[3] and reserve tank.
Installation
is in the reverse order of removal.
• After installation, fill the reserve tank with the coolant
(page 9-6).

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
