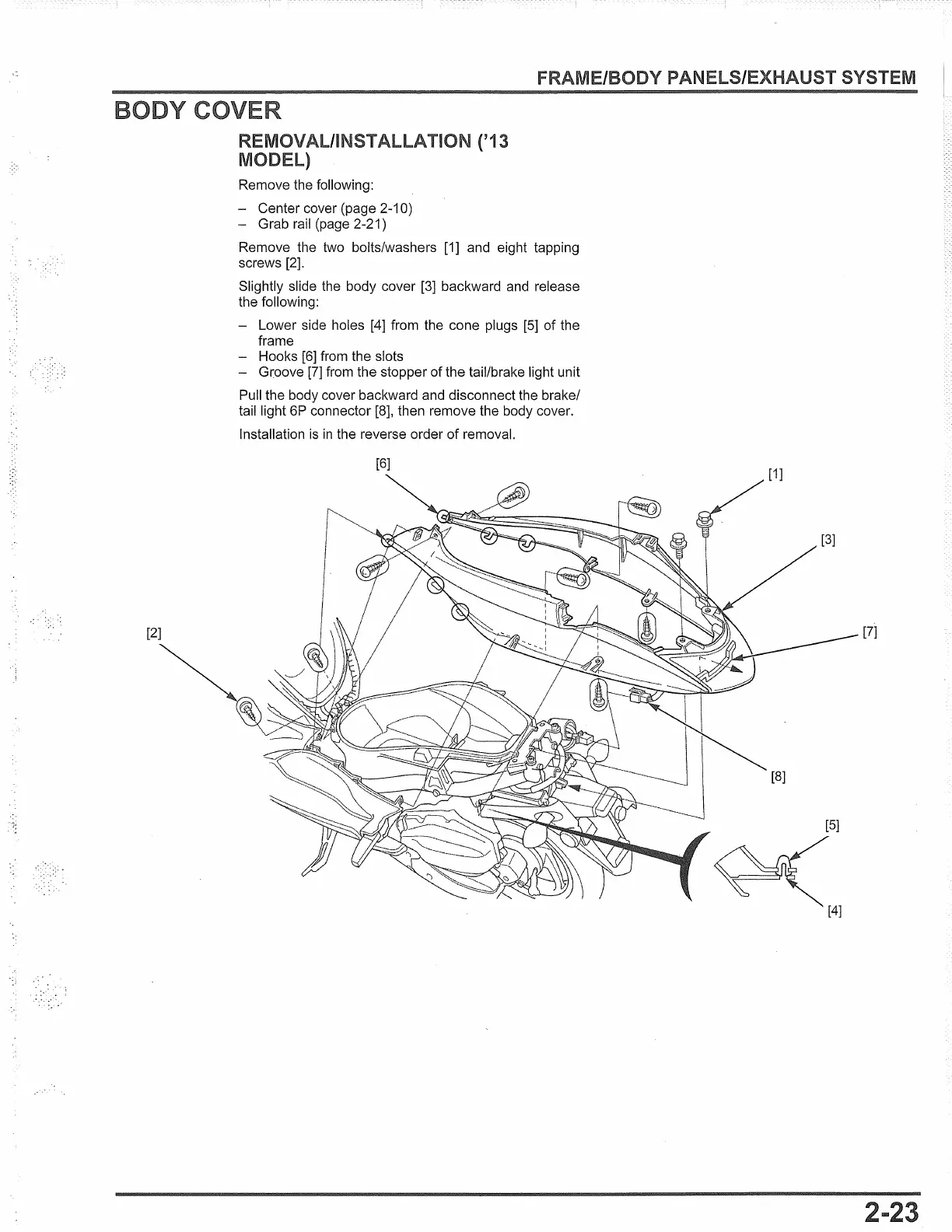

REMOVAL/INSTALLATION ('13
MODEL)
Remove the following:
- Center cover (page 2-10)
- Grab rail (page 2-21)
Remove the two bolts/washers
[1]
and eight tapping
screws [2].
Slightly slide the body cover
[3]
backward
and
release
the following:
- Lower side holes
[4]
from the cone plugs
[5]
of the
frame
- Hooks
[6]
from the slots
- Groove
[7]
from the stopper of the tail/brake light unit
Pull the body cover backward and disconnect the brake/
tail light
6P
connector [8], then remove the body cover.
Installation
is
in
the reverse order
of
removal.
