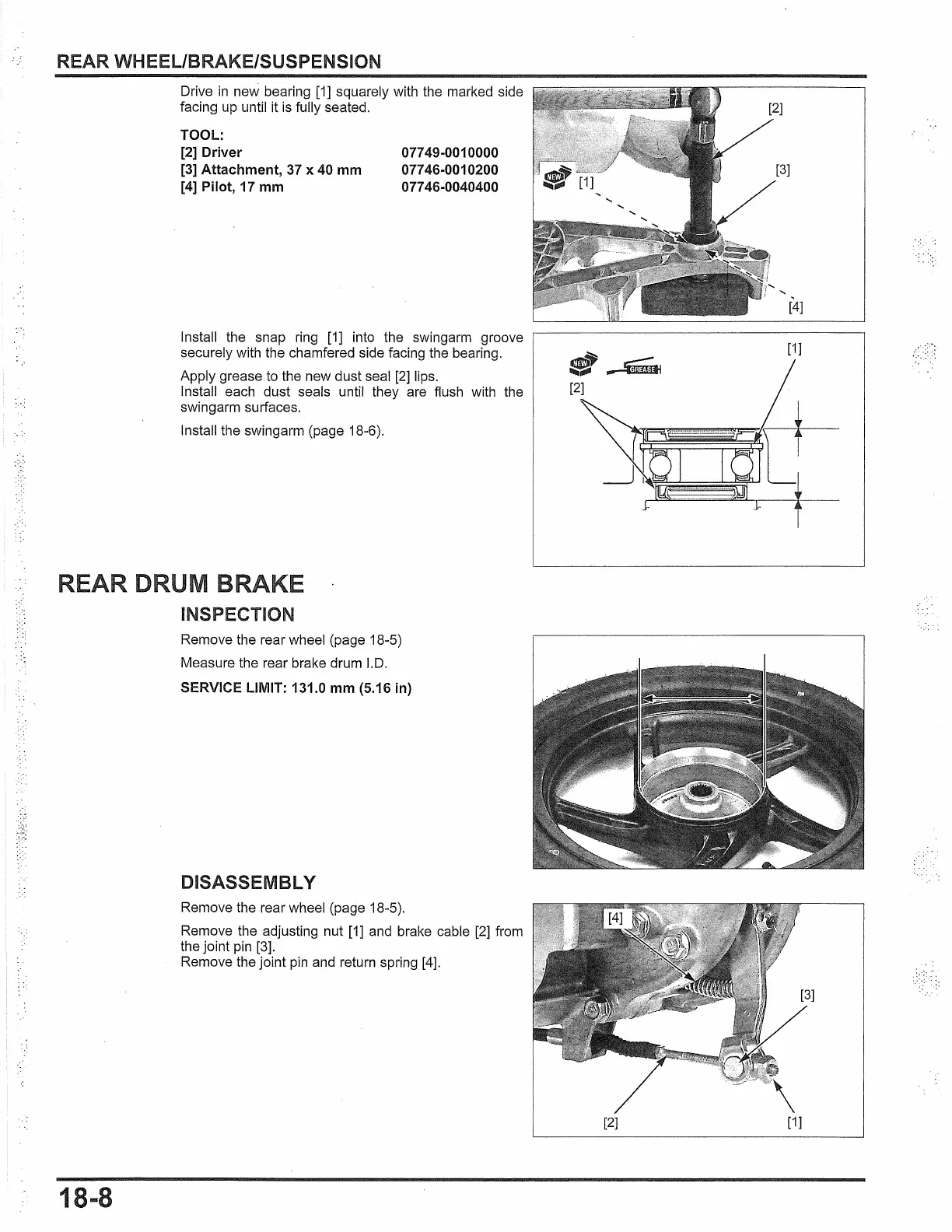

REAR WHEEL/BRAKE/SUSPENSION
Drive in new bearing [1] squarely with the marked side
facing
up until it is fully seated.
TOOL:
[2] Driver
[3] Attachment, 37
x 40 mm
[4] Pilot, 17 mm
07749-0010000
077 46-0010200
077 46-0040400
Install the snap ring [1] into the swingarm groove
securely with the chamfered side facing the bearing.
Apply grease to the new dust seal
[2] lips.
Install each dust seals until they are flush with the
swingarm surfaces.
Install the swingarm (page 18-6).
REAR DRUM BRAKE
INSPECTION
18-8
Remove the rear wheel (page 18-5)
Measure the rear brake drum I.D.
SERVICE LIMIT: 131.0 mm (5.16 in)
DISASSEMBLY
Remove the rear wheel (page 18-5).
Remove the adjusting nut [1] and brake cable
[2] from
the joint pin [3].
Remove the joint pin and return spring [4].
[4]
[2]
[1]
