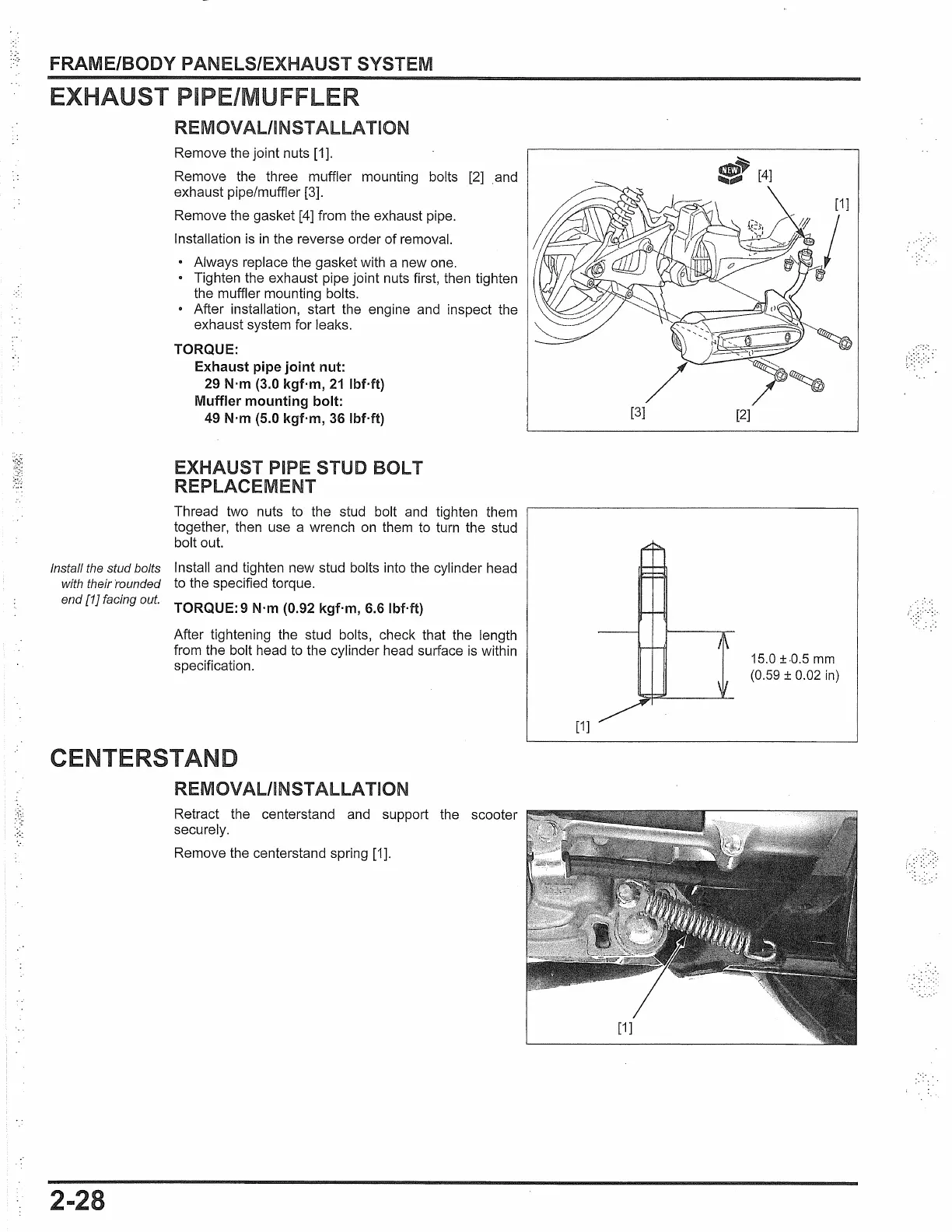

FRAME/BODY PANELS/EXHAUST SYSTEM
EXHAUST
R
REMOVAL/INSTALLATION
Remove the joint nuts [1].
Remove the three muffler mounting bolts
[2]
.and
exhaust pipe/muffler [3].
Remove the gasket [4] from the exhaust pipe.
Installation
is
in
the reverse order
of
removal.
• Always replace the gasket with a new one.
Tighten the exhaust pipe joint nuts first, then tighten
the muffler mounting bolts.
• After installation, start the engine and inspect the
exhaust system for leaks.
TORQUE:
Exhaust pipe joint nut:
29 N·m (3.0 kgf·m,
21
lbMt)
Muffler mounting bolt:
49 N·m (5.0 kgf·m, 36 lbMt)
EXHAUST PIPE STUD BOLT
REPLACEMENT
Thread two nuts to the stud bolt and tighten them
together, then use a wrench on them to turn the stud
bolt out.
Install the stud bolts
Install and tighten new stud bolts into the cylinder head
with their rounded
to the specified torque.
end
[t]
facing out.
TORQUE: 9 N·m (0.92 kgf·m, 6.6 lbMt)
After tightening the stud bolts, check that the length
from the bolt head to the cylinder head surface is within
specification.
CENTERSTAN
REMOVAL/INSTALLATION
2-28
Retract the centerstand and support the scooter
securely.
Remove the centerstand spring [1].
[3]
[1]
[2]
15.0
±
.o.5
mm
(0.59
±
0.02
in)
