Honda PCX150 2016 User Manual

LIGHTS/METERS/SWITCHES
21

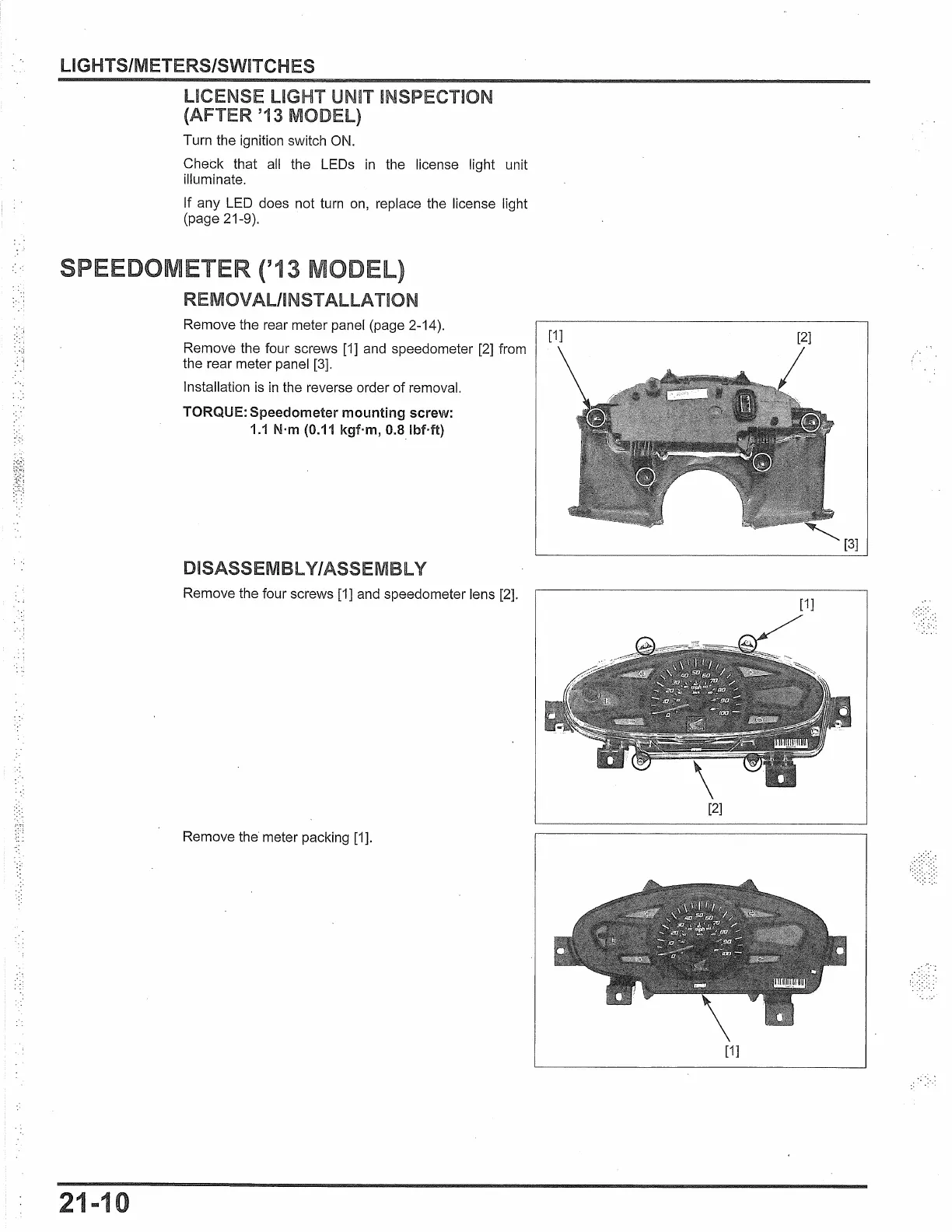

LICENSE UGHT UNIT INSPECTION
(AFTER '13 MODEL)
Turn the ignition switch ON.
Check that
all
the LEDs
in
the license light unit
illuminate.
If any LED does not turn
on,
replace the license light
(page 21-9).
('13
REMOVAl/lNSTAlLATION
Remove the rear meter panel (page 2-14).
Remove the four screws [1] and speedometer
[2]
from
the rear meter panel [3].
Installation
is
in
the reverse order of removal.
TORQUE: Speedometer mounting screw:
1.1
N·m (0.11 kgf·m, 0.8
lbHt)
DISASSEMBLY/ASSEMBLY
Remove the four screws
[1]
and speedometer lens [2].
Remove the meter packing [1].
[1]
[2]
[3]
[1]
[2]
[1]
