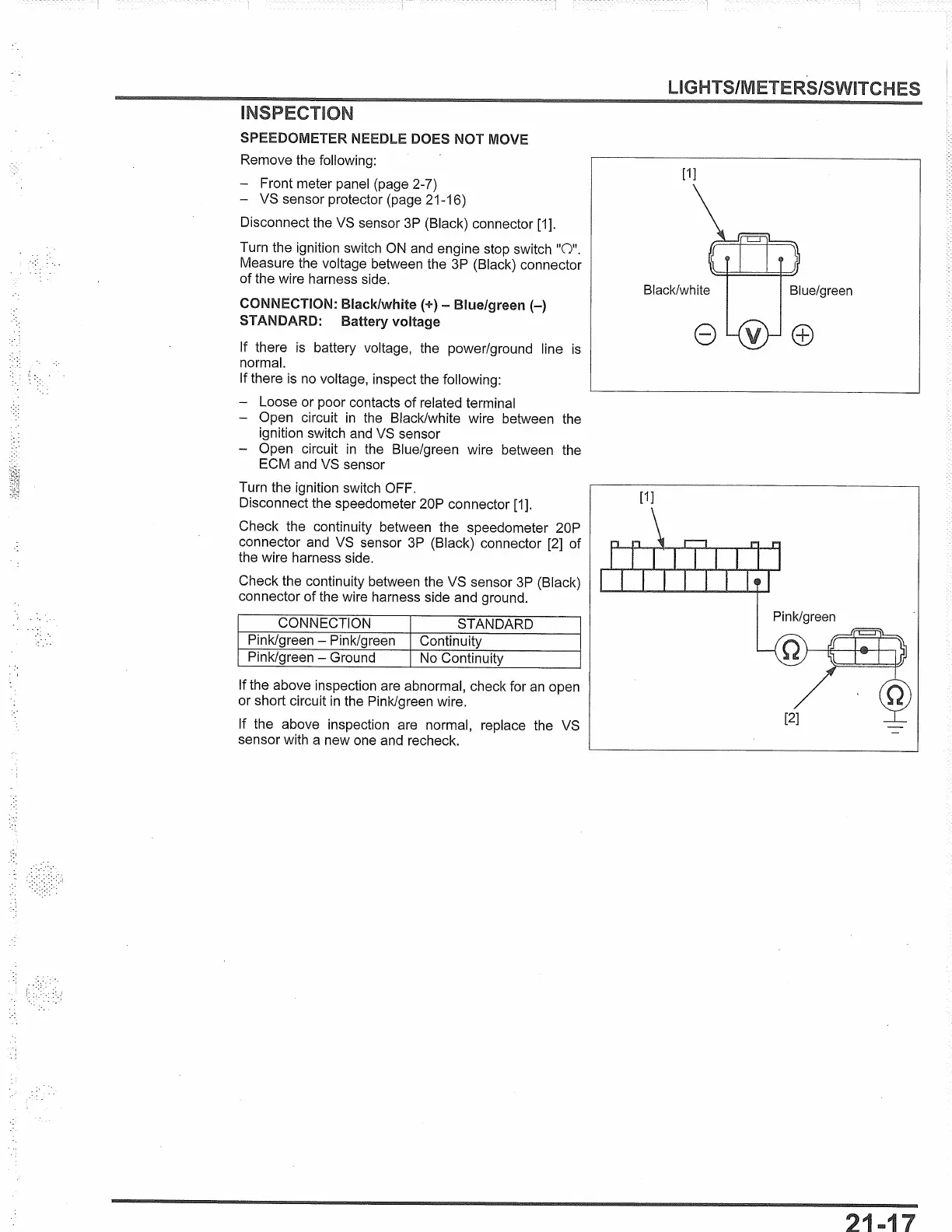

INSPECTION
SPEEDOMETER NEEDLE DOES NOT MOVE
Remove the following:
- Front meter panel (page 2-7)
- VS sensor protector (page 21-16)
Disconnect the VS sensor 3P (Black) connector [1].
Turn the ignition switch ON and engine stop switch "O".
Measure the voltage between the 3P (Black) connector
of
the wire harness side.
CONNECTION: Black/white(+) - Blue/green(-)
STANDARD: Battery voltage
If there is battery voltage, the power/ground line
is
normal.
If there
is
no voltage, inspect the following:
- Loose or poor contacts
of
related terminal
- Open circuit
in
the Black/white wire between the
ignition switch and VS sensor
- Open circuit
in
the Blue/green wire between the
ECM and VS sensor
Turn the ignition switch OFF.
Disconnect the speedometer 20P connector [1].
Check the continuity between the speedometer 20P
connector and VS sensor 3P (Black) connector [2]
of
the wire harness side.
Check the continuity between the VS sensor 3P (Black)
connector
of
the wire harness side and ground.
CONNECTION STANDARD
Pink/green - Pink/green Continuity
Pink/green - Ground No Continuity
If the above inspection are abnormal, check for an open
or short circuit
in
the Pink/green wire.
If
the above inspection are normal, replace the VS
sensor with a new one and recheck.
LIGHTS/METERS/SWITCHES
[1]
[1]
Pink/green
To Next Page
